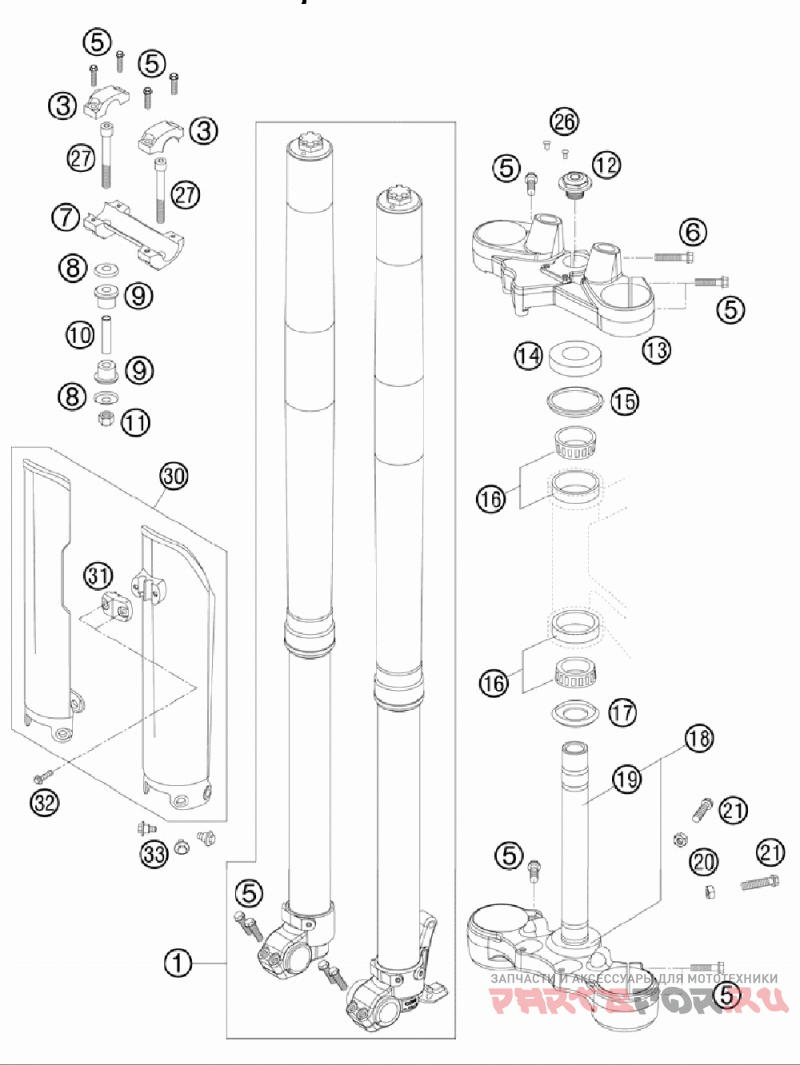

Передняя вилка

KTM 950 SUPER ENDURO R USA CHASSIS

KTM
#oem кодцена
1
14187D32
Fork Wp 950 Superenduro 08
3
5900103830001S
Handlebar Clamp 28mm 07
5
0025080306
Hh Collar Screw M8x30 Tx40
6
0025080356
Hh Collar Screw M8x35 Tx40
7
5900103920001S
Handlebar Support 28mm 07
8
56401042000
Washer 10, 5x32x2
9
56401040000
Резиновая Втулка
10
56401041100
Spacer Tube 10, 2x12x44
11
0982100003
Self Lock.nut Din0982-m10 High
12
54801036200
Steer.head Screw M20x1, 5 Sw=27
13
6000103402001S
Top Triple Clamp X=20mm D=54mm
14
61001086000
Steering Head Cover 05
15
54601184000
Stearing Head Gasket Top
16
54201081100
Tapered Roller Bearing Cpl. 06
17
54601084200
O-ring Support W. Sealing Lip
18
6000103202001S
Bottom Triple Clamp Cpl D=60mm
19
60001033000
Fork Tube Lc8 Adv 03
20
0934080003
Hexagon Nut Din0934-m 8
21
0933080253
Hh Screw Din0933-m 8x25
26
60103088000
Plug Zk 8/5 06
27
0984100703
Ah Screw Din6912-m10x70
30
5900109400030
Fork Protect. L/s+r/s Black 02
31
58201085000
Clamp F.speed Cable D=8mm 2001
32
0017060203
Ejot Pt Screw K60x20 Ws=6
33
59001092050
Special Screw M6x12, 5 Ws=8
17
54601084100
O-ring Support W. Sealing Lip
