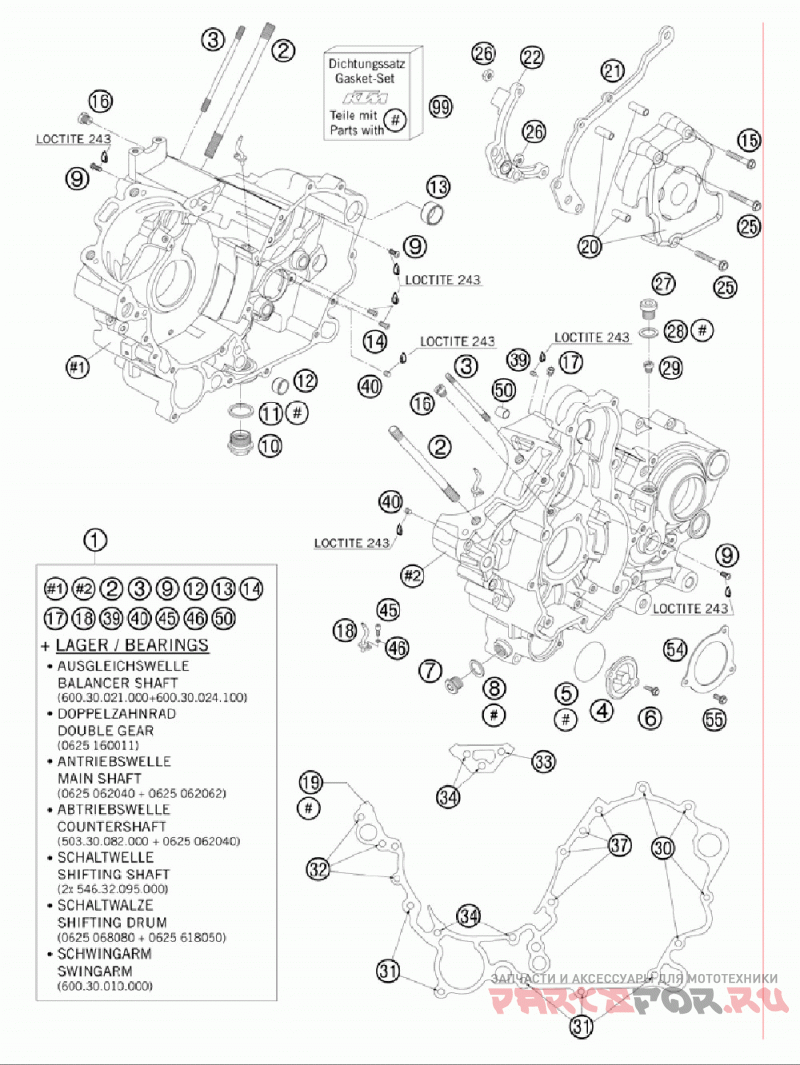

Картер двигателя

KTM 950 SUPER ENDURO R US 2008 ENGINE

KTM
#oem кодцена
1
6003000014423
Картер
2
60030043100
Stud M10x161 06
3
60030043010
Stud M 6x101 10.9 03
4
59038041000
Oil Filter Cover Racing
5
0770400025
O-ring 40, 00x2, 50 Nbr 70
6
0015050163
Hh Collar Screw M 5x16 Ws=8
7
60038033050
Plug Screw M14x1, 5 Alu Ah
9
0018050103
Int. Torx Oval Head M 5x10 8.8
10
58038019050
Drain Plug W. Magnet
11
58038017100
Cu-seal Ring Din7603-22x27x2
12
58330023000
Dowel 17 X 14 X 9, 5
13
60030023000
Dowel 20, 1x24x12 03
14
0019050103
Int. Torx Flat Head M 5x10 8.8
15
0015060303
Hh Collar Screw M 6x30 Sw=8
16
59030054000
Jet 60 Dellorto M6x0, 75
17
60030063070
Oil Jet 70 M5
18
60030064000
Oil Inject.tube Curved "70" 05
19
60030039100
Engine Case Gasket 0, 5mm 05
20
60030060044
Chain Sprocket Cover Cpl. 03
21
60030047000
Chain Fail. Protection Lc8 03
22
60032063000
Adapter F. Hydr. Clutch 03
25
0015060353
Hh Collar Screw M 6x35 Ws=8
26
0985060003
Self Lock. Nut Din0985-m 6
27
49030029000
Oil Drain Plug M10x1, 5 Ah-ws=6
28
0603100141
Copper Gasket Din7603-10x14x1
29
60038029200
Reducing Jet "30" M6x0, 75
30
0015060403
Hh Collar Screw M 6x40 Ws=8
31
0015060603
Hh Collar Screw M 6x60 Ws=8
32
0015060653
Hh Collar Screw M 6x65 Ws=8
33
0015060703
Hh Collar Screw M 6x70 Ws=8
34
0015060753
Hh Collar Screw M 6x75 Ws=8
37
0015060903
Hh Collar Screw M 6x90 Ws=8
39
0916050042
Thread Pin Din916 M5x4-45h
40
0551060050
Thread Pin Din0551-m 6x 5
45
0912040103
Ah.screw Din0912-m 4x10
46
0770035020
O-ring 3, 5x2, 00 Nbr
50
49030090000
Шпонка 9, 8 Х 7 Х 10
54
60030084000
Bracket For Bearing Insert 05
55
0015050123
Hh Collar Screw M 5x12 Ws=8
99
60030099000
Gasket Set Cpl. 03
8
0603142016
Cu-seal Ring 14x20x1, 5 Lc8 02
30
0025060406
Hh Collar Screw M6x40 Tx30
