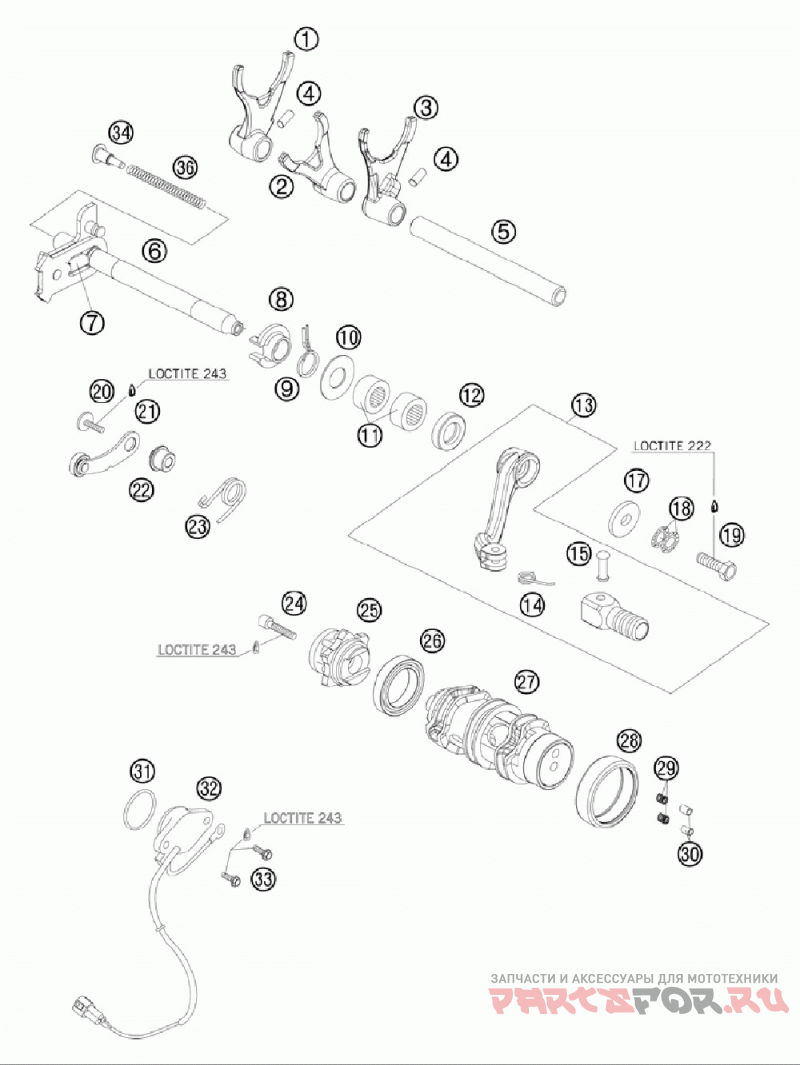

Механизм переключения

KTM 690 DUKE ENGINE

KTM
#oem кодцена
1
75034002000
Shift Fork F. Slidinggear 5 07
2
75034001000
Shift Fork F. Slidingg. 3/4 07
3
75034003000
Shift Fork F. Slidinggear 6 07
4
0402061480
Needle Roller Din5402 6x14, 8
5
75034019000
Shiftrail 07
6
75034005044
Shift Shaft Cpl. 07
7
56534013100
Tensioning Spring 0, 8mm
8
54634020000
Spring Guide
9
54634014100
Return Spring 2, 2mm '95
10
75034050000
Stop Disk 14x30x1, 5 Steel
11
54632095000
Needle Bear.hk 1412 14x20x12
12
0760142461
Shaft Seal Ring 14x24x6b Viton
13
75034031000
Shift Lever Cpl. 07
14
75034032000
Shifting Lever Spring
15
54634031050
Bolt 6x25 For Shift Lever
17
50232050001
Steel Washer 6, 4x17x3
18
50233041000
Pair Of Washers M 6 Nordlock
19*
59009062016
Special Screw M6x16 Ws=8 10.9
20
0024060206
Hh Collar Screw M6x20 Tx30
21
75034024044
Locking Lever Cpl. 07
22
75034052000
Sleeve For Locking Lever 07
23
60034023000
Arresting Lever Spring 03
24
0012060303
Ah Screw Din6912 M6x30 8.8
25
75034015000
Shift Drum Locating Cpl. 07
26
0625618052
Ball Bearing 6805 C3 Jr
27
75034012044
Shift Roller Cpl. 07
28
0618354212
Needle Bear Hk3512 35x42x12
29
60034014000
Contact Spring 03
30
60034037000
Contact Bolt 03
31
0770275025
O-ring 27, 5x2, 5 Nbr
32
60011023100
Gear-position Sensor 06
33
0025050166
Hh Collar Screw M5x16 Tx30
34
75034006000
Проставка
36
75034007000
Spring For Operating Shaft
