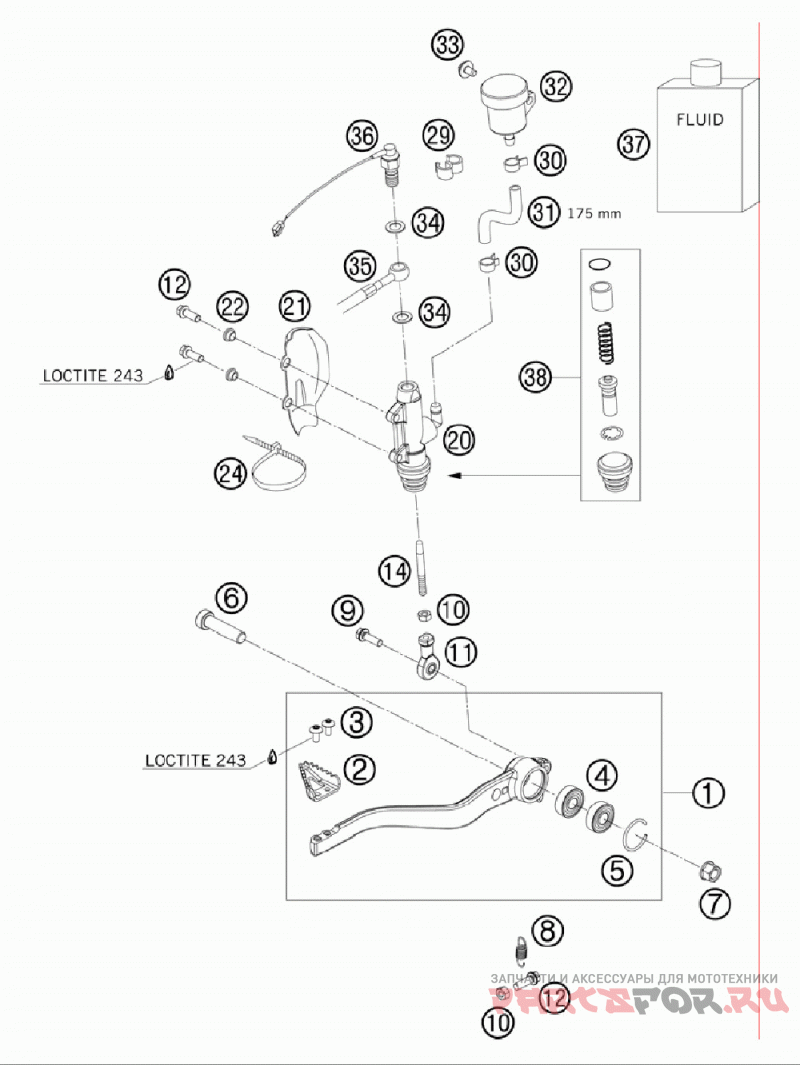

Тормозной цилиндр задний

KTM 690 DUKE CHASSIS ORG

KTM
#oem кодцена
1
7501305004401
Foot Brake Lever Cpl. 07
2
60013051000
Step Plate Foot Brake Lever 03
3
58605083010
Screw Torx M5x10 05
4
0625060002
Ball Bearing Skf 6000-2rs1
6
0912100406
Ah Screw Din6912 M10x40 10.9
7
54630044000
Collar Nut M10 Ws=13
8
61013052000
Spring Foot Brake Lever 05
9
0025060206S
Hh Collar Screw M6x20 Tx30
10
0934060003
Hexagon Nut Din0934-m 6
11
54603069000
Swivel Head M6 Foot Brake Lev.
12
59009062019
Special Screw M6x19 Ws=8 10.9
14
54603068000
Pressure Rod Alu 250 '90
20
54513101044
Main Brake Cylinder '89
21
54513038000
Brake Cyl. Protector "brembo"
22
50213161000
Collar Bushing
24
44011076200
Cable Tie 200/3, 6mm Black
29
55011022100
Clamp D=6/8mm, Black
30
58007017000
Ydnac Clamp 10101 (9mm)
32
54513030044
Brake Fluid Reservoir '89
33
0024060106
Hh Collar Screw M6x10 Tx30
34
0603100141
Copper Gasket Din7603-10x14x1
35
75013072000
Brake Hose Rear 2007
36
50311051100
Brake Light Switch Rear '98
37
00062030000
Тормозная жидкость Dot5 0,25 ml
38
54513150000
Repair Kit Piston 13mm
5
0993026500
Lock Ring Din7993-b26
