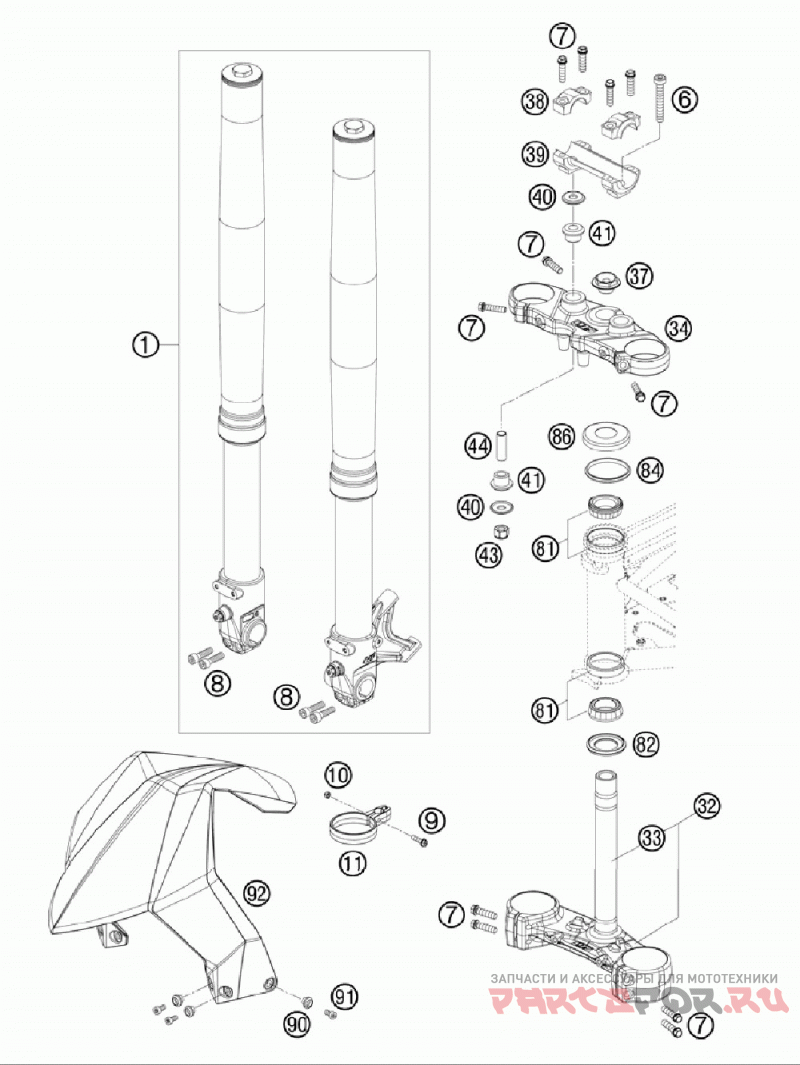

Передняя вилка

KTM 690 DUKE CHASSIS BLK

KTM
#oem кодцена
1
14187E0901
Fork Ktm 690 Duke 2009
6
0012100603
Ah Screw Din6912-m10x60
7
0025080306
Hh Collar Screw M8x30 Tx40
8
0912080303
Ah Screw Din0912-m 8x30
9
0025050206
Hh Collar Screw M5x20 Tx30
10
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
11
75001070000
Clamp Brake Hose 07
32
7500103203201S
Bottom Triple Clamp Cpl. 07
33
60001033000
Fork Tube Lc8 Adv 03
34
7500103403201S
Top Triple Clamp 54mm 07
37
54801036000
Steer.head Screw M20x1, 5 Ws=27
38
5900103830001S
Handlebar Clamp 28mm 07
39
5900103920001S
Handlebar Support 28mm 07
40
56401042000
Washer 10, 5x32x2
41
56401040000
Резиновая Втулка
43
0982100003
Self Lock.nut Din0982-m10 High
44
61001041000
Spacer Tube 10, 2x12x38 05
81
54201081100
Tapered Roller Bearing Cpl. 06
82
54601084200
O-ring Support W. Sealing Lip
84
54601184000
Stearing Head Gasket Top
86
61001086000
Steering Head Cover 05
90
75001094010
Bushing Mud Flap 07
91
0012060123
Ah Screw Din6912 M6x12
92
7560801000033A
Front Fender Black Matt
82
54601084100
O-ring Support W. Sealing Lip
