Система зажигания для мотоциклов KTM 50SX Jr engine 09 (2009)

Москва и регионы России

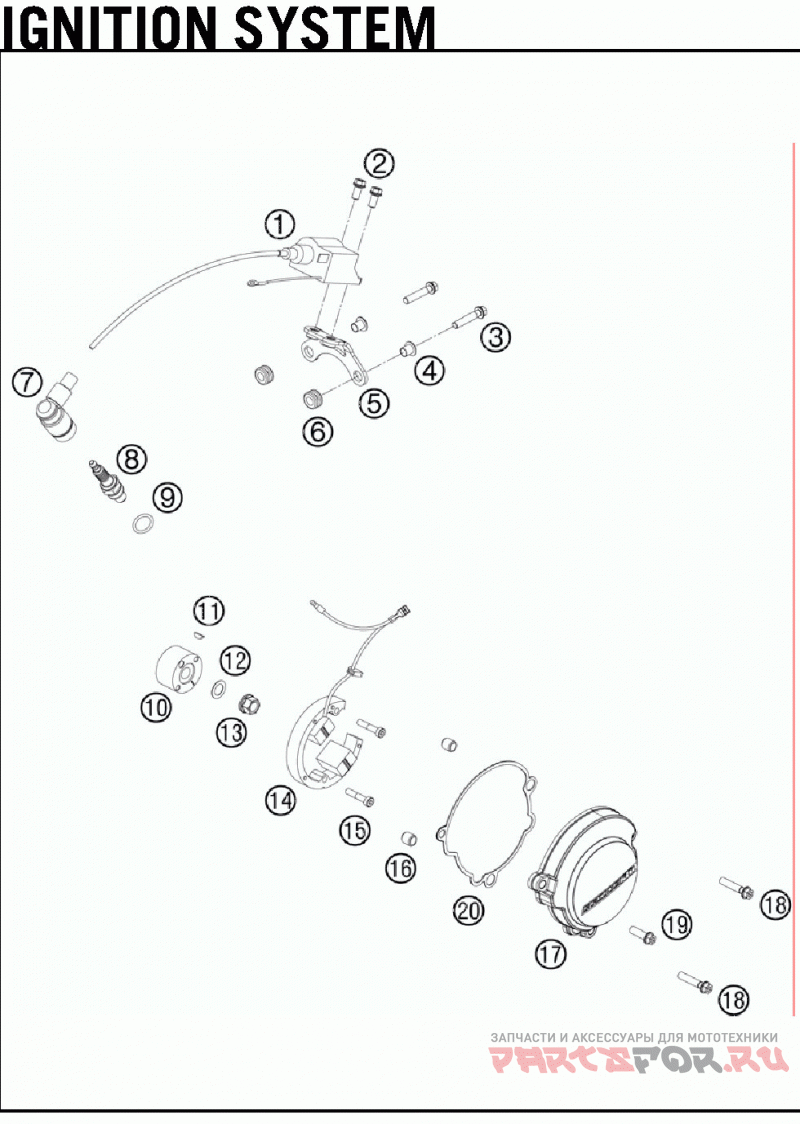

Система зажигания

KTM 50SX Jr engine 09

Система зажигания

#

oem код

название

цена

1

Ignition Coil 50ccm Lc 2001

Ignition Coil 50ccm Lc 2001

2

Hh Collar Screw M6x12 Tx30

Hh Collar Screw M6x12 Tx30

3

Воротник Винт M6x30 Tx30

Воротник Винт M6x30 Tx30

4

Spacer Bush. F. Speedomet.bra.

Spacer Bush. F. Speedomet.bra.

5

Ignit. Coil Retain. Plate Cpl.

Ignit. Coil Retain. Plate Cpl.

6

Rubber Sleeve D=8mm Open

Rubber Sleeve D=8mm Open

7

Spark Plug Connector

Spark Plug Connector

8

Spark Plug Lr8b

Spark Plug Lr8b

9

O-ring 12, 00x3, 0 Viton 75

O-ring 12, 00x3, 0 Viton 75

10

Flyweel Rotor 50 2004

Flyweel Rotor 50 2004

11

Woodruff Key Din6888-2, 5x3

Woodruff Key Din6888-2, 5x3

12

Washer 10, 4x16, 8x0, 4

Washer 10, 4x16, 8x0, 4

13

Hh Collar Nut M10x1, 25 Ws=13

Hh Collar Nut M10x1, 25 Ws=13

14

Flywheel Stator 50ccm Lc 2001

Flywheel Stator 50ccm Lc 2001

15

Ah Screw Din6912 M5x25

Ah Screw Din6912 M5x25

16

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

17

Крышка Зажигания

Крышка Зажигания

19

Hh Collar Screw M6x20 Tx30

Hh Collar Screw M6x20 Tx30

20

Gasket - Ignition Cover

Gasket - Ignition Cover
