Передняя вилка для мотоциклов KTM 50SX Jr chassis 09 (2009)

Москва и регионы России

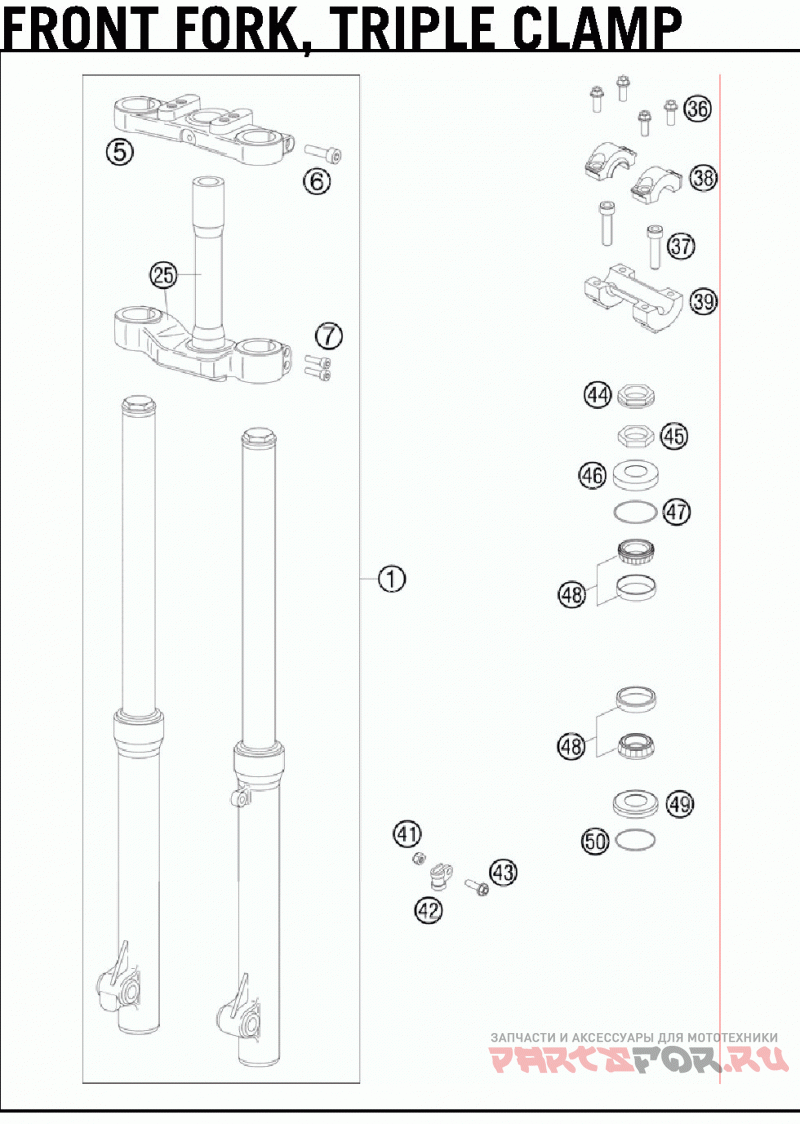

Передняя вилка

KTM 50SX Jr chassis 09

Передняя вилка

#

oem код

название

цена

1

Front Fork Cpl. 50 Sx Jun.2009

Front Fork Cpl. 50 Sx Jun.2009

5

Top Fork Plate 50 Lc Sen. 03

Top Fork Plate 50 Lc Sen. 03

6

Ah Screw Din0912-m 8x30

Ah Screw Din0912-m 8x30

7

Ah Screw Din0912-m 6x25

Ah Screw Din0912-m 6x25

25

Bottom Trip. Clamp Cpl.

Bottom Trip. Clamp Cpl.

36

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

37

Ah Screw Din6912-m10x25, 10.9, L

Ah Screw Din6912-m10x25, 10.9, L

38

Handlebar Clamp D=22mm 2001

Handlebar Clamp D=22mm 2001

39

Handlebar Support D=22mm 2001

Handlebar Support D=22mm 2001

41

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

42

Brake Cable Clamp Rsgu 9/12

Brake Cable Clamp Rsgu 9/12

43

Hh Collar Screw M5x20 Tx30

Hh Collar Screw M5x20 Tx30

44

Hh Nut M20x1, 5 Ws=27 Right

Hh Nut M20x1, 5 Ws=27 Right

45

Steering Head Nut M20x1, 5

Steering Head Nut M20x1, 5

46

Covering Cap

Covering Cap

47

O-ring 40, 94x2, 62 Nbr70

O-ring 40, 94x2, 62 Nbr70

48

Tapered Roller Bearing 32004x

Tapered Roller Bearing 32004x

49

Protection Ring 20, 1x39x5

Protection Ring 20, 1x39x5

50

O-ring 36, 00x3, 00 Nbr

O-ring 36, 00x3, 00 Nbr
