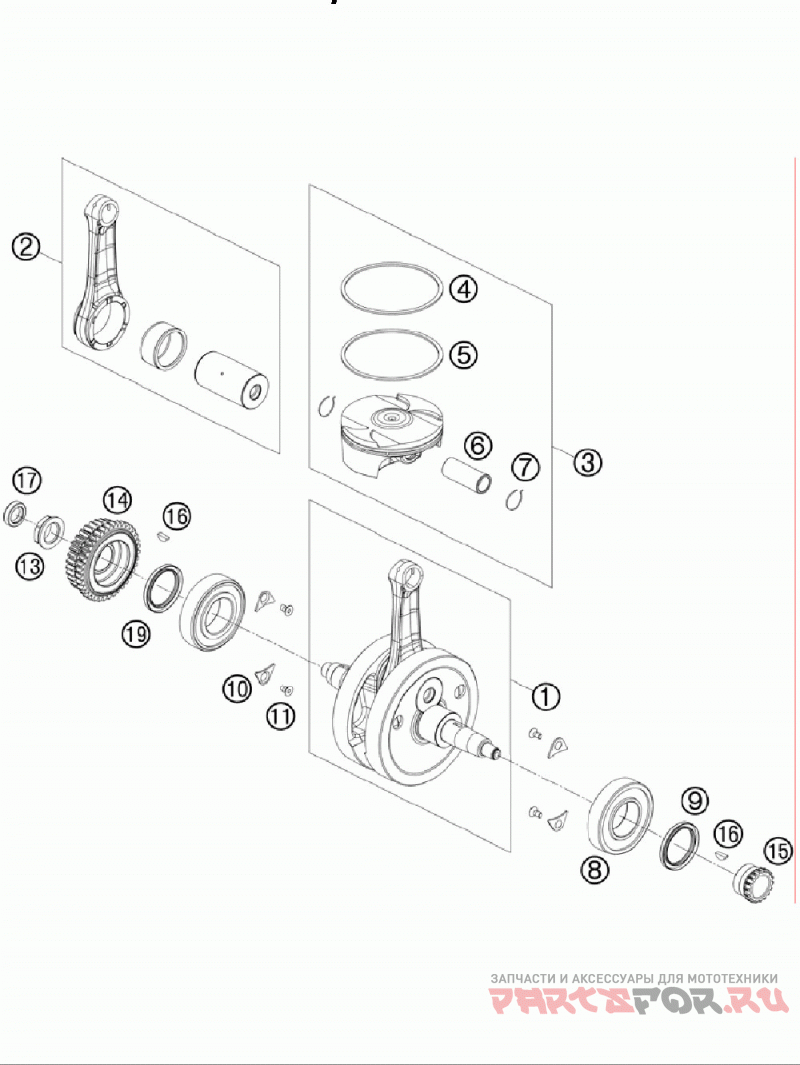

Коленвал и поршень

KTM 400 EXC ENGINE

KTM
#oem кодцена
1
78330018100
Crankshaft Cpl.
2
78330015044
Con Rod Rep.-kit 400 09
3
78330007000 I
Piston D=95mm Size 1
3
78330007000 II
Piston D=95mm Size 2
4
78030030100
Compression Ring
5
78030032200
Oil Scraper Piston Ring
6
78030033000
Piston Pin 08
7
77330074000
Пружинное стопорное кольцо
8
0625062071
Ball Bearing 6207 Tm-sx07e 39
9
0760354773
Shaft Seal Ring 35x47x7 A-duo
10
75030085000
Retaining Plate F. Cs Bearing
11
0019050103
Int. Torx Flat Head M 5x10 8.8
13
78030029100
Nut Primary Wheel
14
78032000233
Primary Wheel
15
78036014200
Timing Gear 18t.
16
0888030037
Woodruff Key Din6888-3x3, 7
17
0760142460
Shaft Seal Ring 14x24x6 B
19
0760354774
Shaft Seal Ring 35x47x7 Viton
