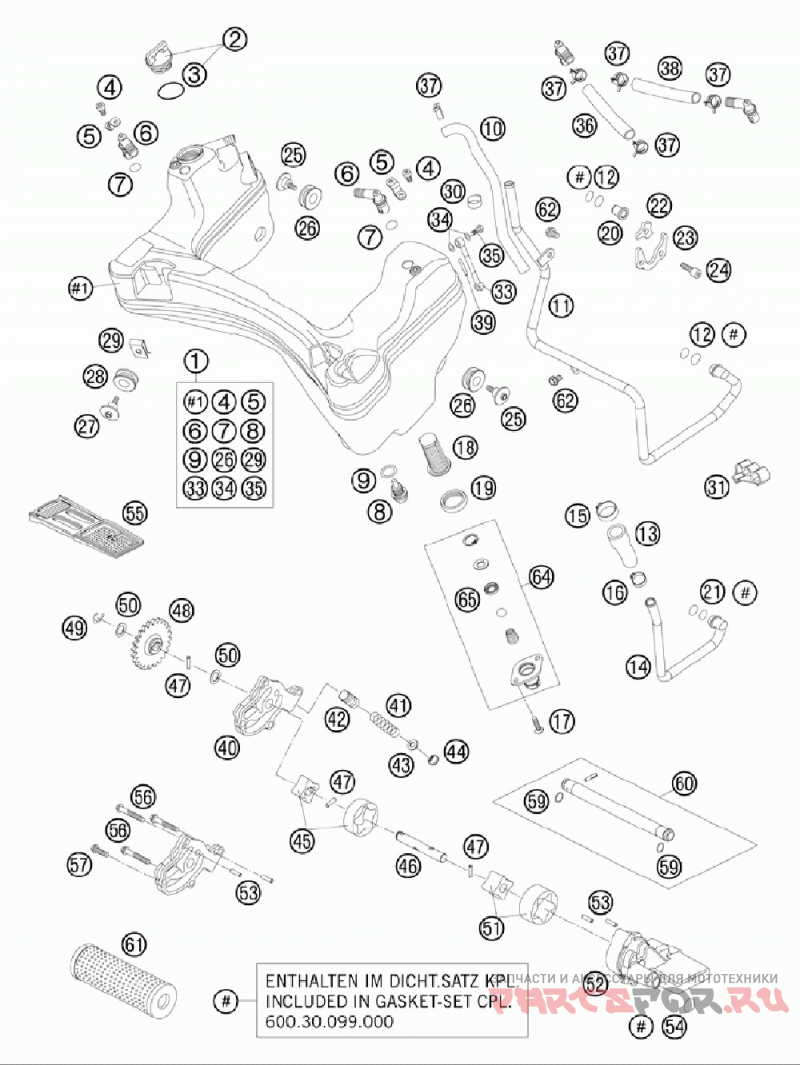

Масляная система

KTM 990 SUPERDUKE USA ENGINE

Масляная система

#

oem код

название

цена

2

Пробка M24x3

Пробка M24x3

3

Кольцо 19,00x3,00

Кольцо 19,00x3,00

4

Ah Screw Din0912-m 5x10

Ah Screw Din0912-m 5x10

5

Bracket F. Efi-plug

Bracket F. Efi-plug

6

Angle Connector Lc8 03

Angle Connector Lc8 03

7

O-ring 8x2 Silicone

O-ring 8x2 Silicone

8

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

9

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

10

Preformed Hose D9x3, 5

Preformed Hose D9x3, 5

11

Oil Pipe "b"

Oil Pipe "b"

12

O-ring 9x2 Viton

O-ring 9x2 Viton

13

Oil Hose Pipe A 05

Oil Hose Pipe A 05

14

Oil Pipe "a"

Oil Pipe "a"

15

Variable One-ear Clamp 25, 6mm

Variable One-ear Clamp 25, 6mm

16

Variable One-ear Clamp 19, 8mm

Variable One-ear Clamp 19, 8mm

17

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

18

Oil Screen Finished 03

Oil Screen Finished 03

19

Gasket For Oil Filter Hnbr 03

Gasket For Oil Filter Hnbr 03

20

Plug 10mm Lc8 03

Plug 10mm Lc8 03

21

O-ring 11x2 Viton

O-ring 11x2 Viton

22

Retaining Plate 2 Lc8 03

Retaining Plate 2 Lc8 03

23

Retaining Plate 1 Lc8 03

Retaining Plate 1 Lc8 03

24

Ah Screw Din0912-m 6x20

Ah Screw Din0912-m 6x20

25

Screw Oil Tank Fixing 03

Screw Oil Tank Fixing 03

26

Exhaust Bracket Rubber Black

Exhaust Bracket Rubber Black

27

Special Screw M6x21 Ws=8

Special Screw M6x21 Ws=8

28

Rubber Sleeve D=12mm

Rubber Sleeve D=12mm

29

Range Change Metal Nut M6

Range Change Metal Nut M6

30

Variable One-ear Clamp 18, 5mm

Variable One-ear Clamp 18, 5mm

33

Oil Rising Pipe Cpl.

Oil Rising Pipe Cpl.

34

Seal Ring Cu Din7603- 8x12x1

Seal Ring Cu Din7603- 8x12x1

35

Banjo Bolt M8x1

Banjo Bolt M8x1

36

Oil Tank Breathing Hose R/s

Oil Tank Breathing Hose R/s

37

Clamp Std Dn16

Clamp Std Dn16

38

Oil Tank Breathing Hose L/s

Oil Tank Breathing Hose L/s

39

Sticker "oil Level" 05

Sticker "oil Level" 05

40

Pressure Pump Case 03

Pressure Pump Case 03

41

Control Spring Lc8 3, 5 Bar

Control Spring Lc8 3, 5 Bar

42

Control Piston Lc8 03

Control Piston Lc8 03

43

Washer 6x12x1 Hrc 40-45

Washer 6x12x1 Hrc 40-45

44

Circlip Din0472 J12

Circlip Din0472 J12

45

Rotor-set Pressure Pump 03

Rotor-set Pressure Pump 03

46

Oil Pump Shaft 03

Oil Pump Shaft 03

47

Needle Roller Nrb 4x15, 8 G2

Needle Roller Nrb 4x15, 8 G2

48

Oil Pump Gear 24-t

Oil Pump Gear 24-t

49

Tab Washer Din6799 Rs8

Tab Washer Din6799 Rs8

50

Washer 10x16x0, 5 03

Washer 10x16x0, 5 03

51

Rotor-set 19mm 03

Rotor-set 19mm 03

52

Suction Pump Case 03

Suction Pump Case 03

53

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8

54

O-ring 13, 3x2, 4 Viton

O-ring 13, 3x2, 4 Viton

55

Oil Screen 03

Oil Screen 03

56

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

57

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

59

Кольцо 10,00x1,00

Кольцо 10,00x1,00

60

Oil Injection Tube Gear 05

Oil Injection Tube Gear 05

61

Oil Filter 03

Oil Filter 03

62

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

64

Oil Tank Valve Cpl.

Oil Tank Valve Cpl.

65

Shaft Seal R.10x18x4 B-viton

Shaft Seal R.10x18x4 B-viton

10

T-connector W. Reduction Ring

T-connector W. Reduction Ring

40

Pressure Pump Housing Cpl. 10

Pressure Pump Housing Cpl. 10

56

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
