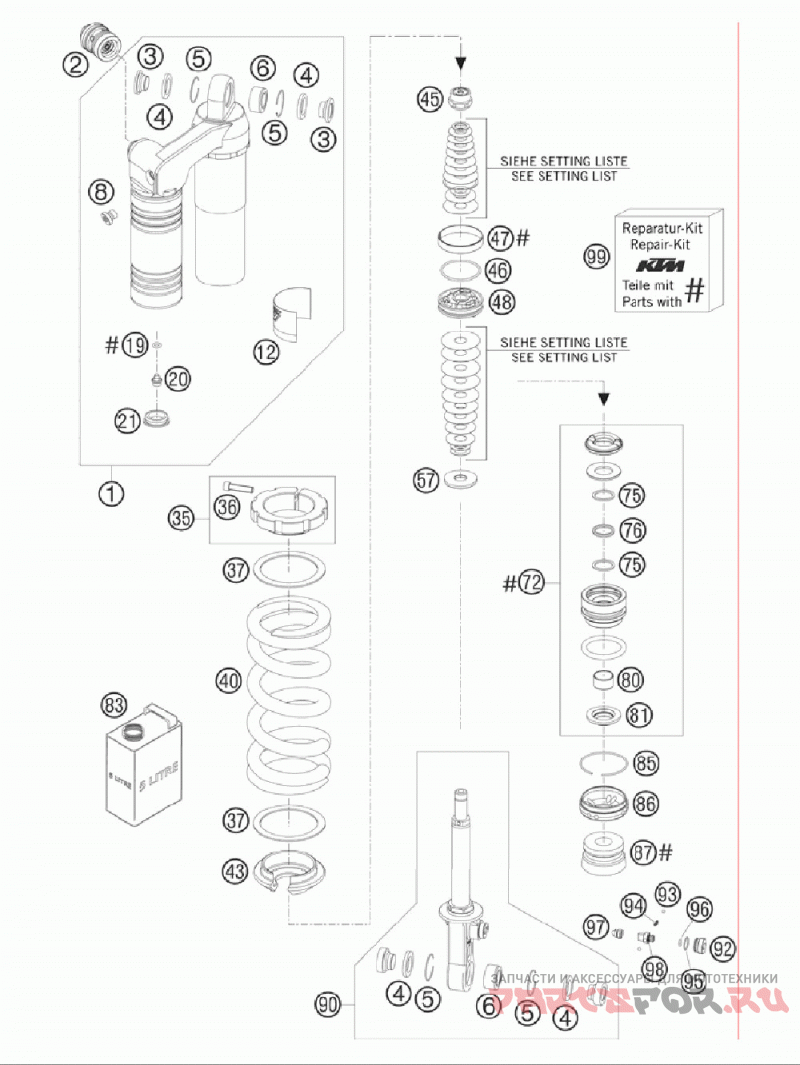

Амортизатор в разборе

KTM 950 SUPER ENDURO R USA CHASSIS

KTM
#oem кодцена
1
46180398S2
Monoshock Top Part Cpl. 07
2
50180213S4
Dcc-compr.damp.control Cpl. 03
3
50180366
Adaptor Bush Kgw 14x24
4
46180003
Oil Seal Kgw D=25
5
50180168
Washer Kgw D=25
6
50180005
Bushing Kgw 1525 Hd
8
50180095
Bleed Plug R 1/8
12
52000044
Sticker Wp Ktm
19
46810893
O-ring Nbr 5, 28x1, 78
20
36120151
Screw Plug M5x6
21
46811208
Rubber Cap "do Not Open"
35
46180394S
Adjusting Nut M52x1, 5
36
46180354
Ah Screw M5x25
37
50180410
Interm.ring D=58
40
91010277S
Spring 140-215 (59)d=13, 75 Tit
43
46180396
Spring Retainer H=15 D=28
45
46180597
Piston Rod Nut 06
46
46810035
O-ring Viton 37, 82x1, 78
47
46810361
Кольцо поршневое
48
46810560
Piston 6+6d7
57
14460017
Rebound Disc H=4
72
46180341S
Adaptor Cpl. D=46 H=28 D=38
75
50180102
Backupring 22, 55x1, 5
76
50180101
Quad Ring 18x2, 62
80
46180119
Du-bush 18x20x12
81
50180082
Dust Seal 1835
83
50180342S1
Shock Absorber Fluid 5 Lt '03
85
46810010
Circlip 49x1, 5
86
46180397
Cover H=9, 5
87
50180276
Bump Rubber Wp60 D=18-26
90
46180399S2
Monoshock Lower Part Cpl. 07
92
46180005
Reservoir Cap M16x1
93
40540603
Steel Ball D=3mm
94
48600028
Spring D=2, 9 L=7, 9
95
46180013
O-ring Nbr 12x1
96
50180222
O-ring Nbr 4x1, 5
97
46180016
Adjusting Adaptor Rebound
98
46180006
Adjusting Screw L=15, 5
