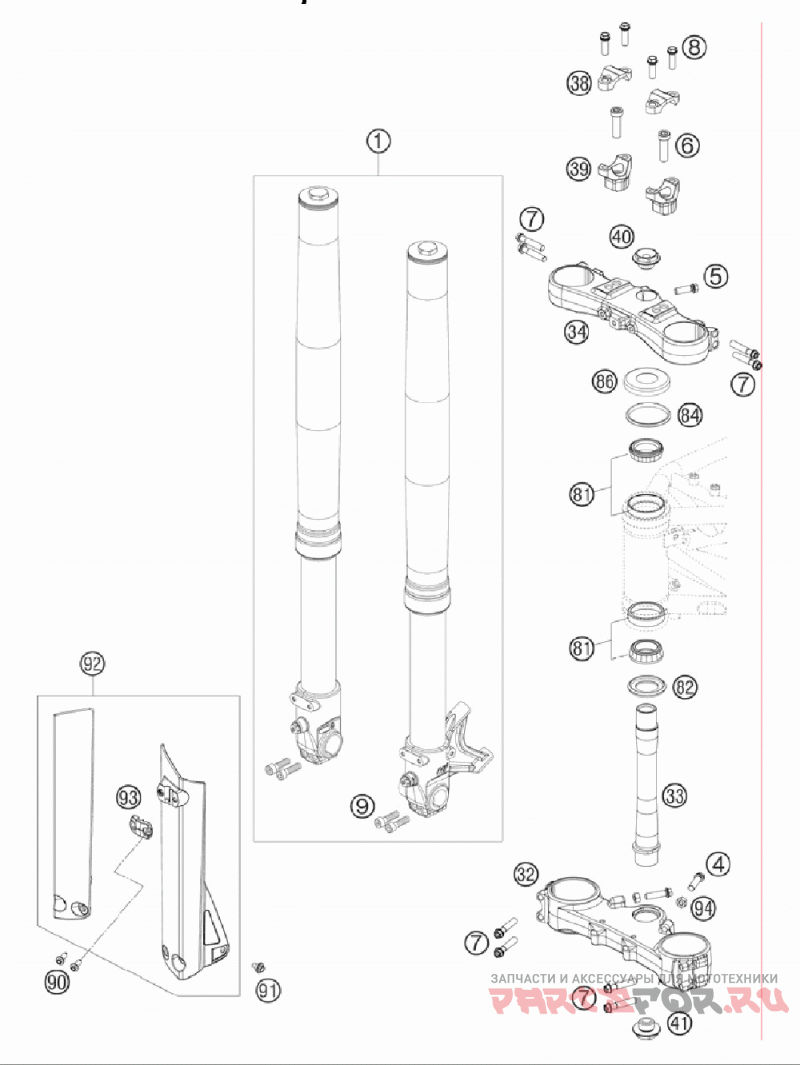

Передняя вилка

KTM 690 SMC USA CHASSIS

KTM
#oem кодцена
1
14187D12
Ktm 690 Smc '08
6
0912100356
Ah Screw Din6912-m10x35 10.9
7
0025080406
Hh Collar Screw M8x40 Tx40
8
0025080256
Винт M8x25 Tx40
9
0912080303
Ah Screw Din0912-m 8x30
32
7650113103301S
Bot.triple Clamp 32-34 Offset
33
76501033000
Fork Tube L=237mm 08
34
7650113403301
Triple Clamp Top 32-34 Adjust.
38
59401038000
Handlebar Clamp 28mm 05
39
59401039042
Handleb.supp. D=28mm H=42mm 05
40
54801036000
Steer.head Screw M20x1, 5 Ws=27
41
54801036100
Ste.head Scr. M20x1, 5 Ws=27 Sl
81
54201081100
Tapered Roller Bearing Cpl. 06
82
54601084200
% O-ring Support W. Sealinglip
84
54601184000
Stearing Head Gasket Top
86
54201086000
Steering Head Cover
90
0017060204
Ejot Pt Screw K60x20 Alu Ws=6
91
59001092050
Special Screw M6x12, 5 Ws=8
92
7650109400030
Fork Protect. L/s+r/s Black 08
93
7650109201030
Fork Protector Clamp
94
0934080003
Hexagon Nut Din0934-m 8
82
54601084100
O-ring Support W. Sealing Lip
