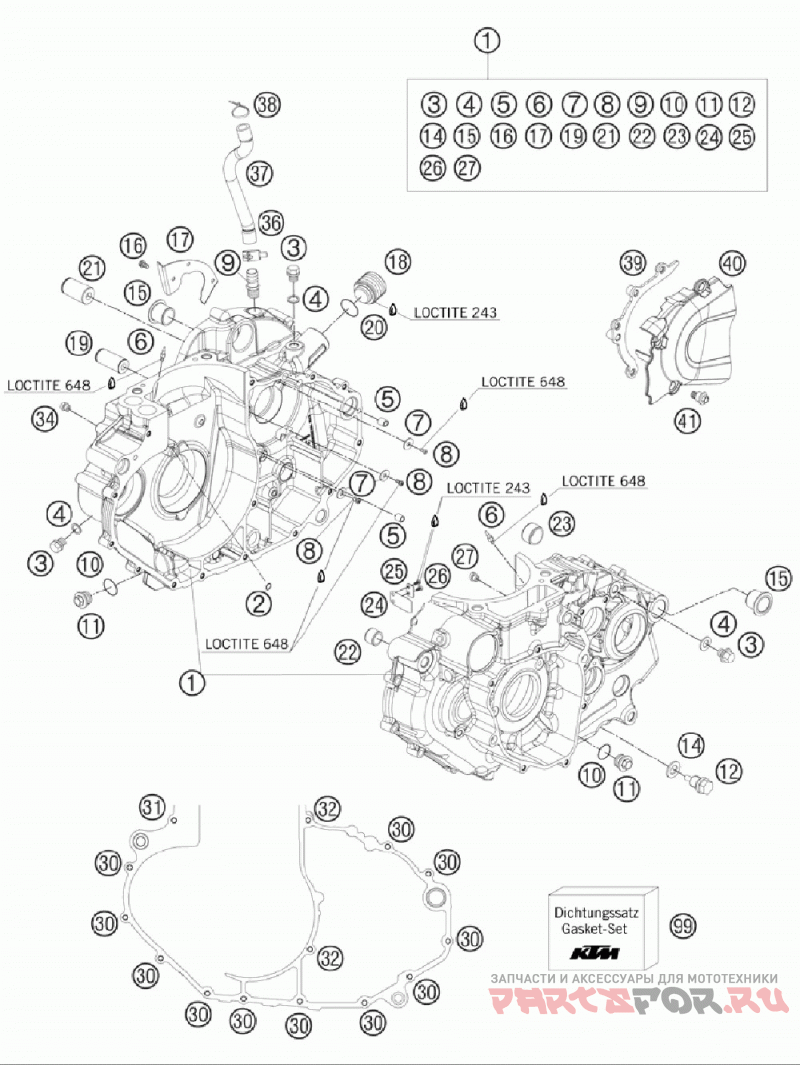

Картер двигателя

KTM 690 LC4 DUKE USA ENGINE

Картер двигателя

#

oem код

название

цена

1

Engine Case Cpl.w.bear. Lc4 07

Engine Case Cpl.w.bear. Lc4 07

2

O-ring 6, 00x1, 78

O-ring 6, 00x1, 78

3

Plug Din0910-m 10x1

Plug Din0910-m 10x1

4

Copper Gasket Din7603-10x14x1

Copper Gasket Din7603-10x14x1

5

Dowel 6x8x11, 5

Dowel 6x8x11, 5

6

Oil Jet 50 M6x0, 75 Ws8 05

Oil Jet 50 M6x0, 75 Ws8 05

7

Washer Din9021-a 5, 3

Washer Din9021-a 5, 3

9

Ventilation Connector M16x1, 5

Ventilation Connector M16x1, 5

10

O-ring 17, 17x1, 78 Glo

O-ring 17, 17x1, 78 Glo

11

Plug M20x1, 5 Ws=13

Plug M20x1, 5 Ws=13

12

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

14

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

15

Case Bush

Case Bush

16

Cylind. Scr. Din6912 M5x10 8.8

Cylind. Scr. Din6912 M5x10 8.8

17

Крышка

Крышка

18

Lock Piece 07

Lock Piece 07

19

Bushing Pin

Bushing Pin

20

O-ring 2, 62x15, 54x20, 78 Nbr70

O-ring 2, 62x15, 54x20, 78 Nbr70

21

Bushing Pin

Bushing Pin

22

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

23

Dowel 21x12 03

Dowel 21x12 03

24

Membrane 07

Membrane 07

25

Stop Sheet Membrane 07

Stop Sheet Membrane 07

26

Cylind.screw M3x8 Iso 14580 Ss

Cylind.screw M3x8 Iso 14580 Ss

27

Main Jet 200

Main Jet 200

30

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

31

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

32

Hh Collar Screw M 6x70 Ws=8

Hh Collar Screw M 6x70 Ws=8

34

Jet 125

Jet 125

36

Clamp Std Dn22

Clamp Std Dn22

37

Hose Breather System 07

Hose Breather System 07

38

Cable Tie 200/3, 6mm Black

Cable Tie 200/3, 6mm Black

39

Securing Guide 07

Securing Guide 07

40

Chain Guard 07

Chain Guard 07

41

Special Screw M6x12, 5 Ws=8

Special Screw M6x12, 5 Ws=8

99

Gasket Set Lc4 2007

Gasket Set Lc4 2007

8

Flat Head Screw Iso 7380 M5x10

Flat Head Screw Iso 7380 M5x10
