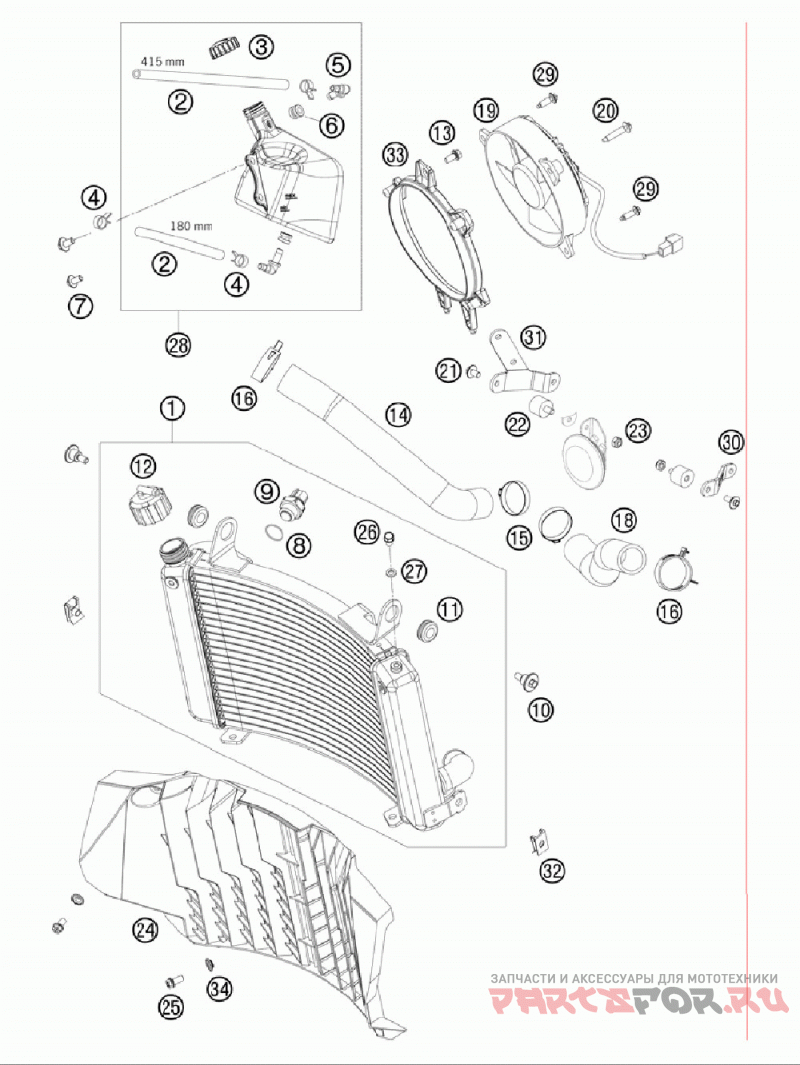

Система охлаждения

KTM 690 ENDURO USA ENGINE

KTM
#oem кодцена
1
76535010000
Radiator 08
3
60035066000
Plug F. Expansion Tank
4
58007117000
Ydnac-clamp 10107 10mm
5
60035068000
Angle Connection Expans. Tank
6
60035069000
Rubber Grommet 6x9x13mm 04
8
0770017015
O-ring 17x1, 5 Nb75
9
60035045000
Thermoswitch Lc8 102dg '03
10
60038083000
Screw Oil Tank Fixing 03
11
41001052000
Rubber Sleeve D=12mm
12
62535009000
Radiator Cap 1, 4 Bar
13
0025060126
Hh Collar Screw M6x12 Tx30
14
76535025000
Radiator Hose 08
15
00050331706
Variable One-ear Clamp 33, 1mm
16
00049320121
Clamp Std Dn32
18
76535024000
Radiator Hose 08
19
60035041000
Fan L/s 03
20
0017060303
Special Screw T60 6x30 Ws=6
21
0024060106
Hh Collar Screw M6x10 Tx30
22
43205062100
Rubber Grommet 20x15-m6x10 (1)
23
0985060003
Self Lock. Nut Din0985-m 6
24
76535040000
Radiator Protection 08
26
0015060103
Hh Collar Screw M 6x10 Ws=8
27
0125060003
Washer Din0125-a 6, 4
28
76535065000
Expansion Tank Cpl. 07
29
0017060203
Ejot Pt Screw K60x20 Ws=6
30
76535001000
Retaining Plate Radiator 08
31
76515002000
Ret.plate Evaporative Canister
32
54603048100
Range Change Metal Nut M6
33
76535044000
Fan Cowl 08
34
76508043050
Collar Bushing
