Амортизатор для мотоциклов KTM 65 SX (2008)

Москва и регионы России

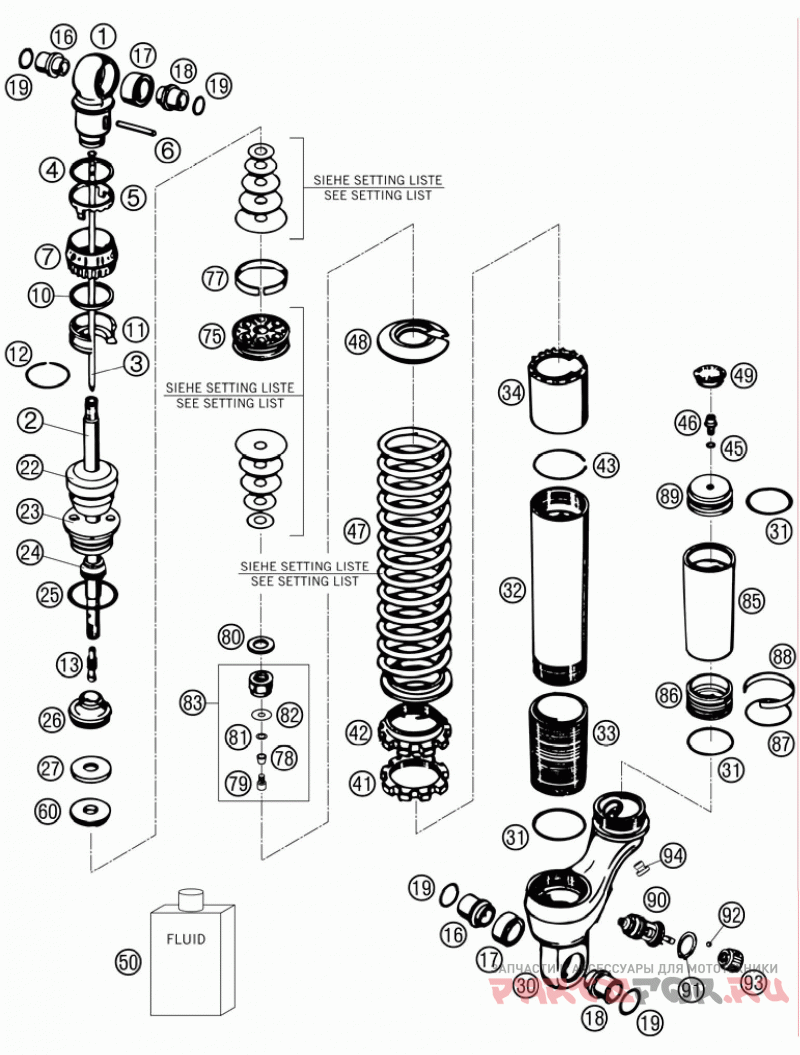

Амортизатор

KTM 65 SX

Амортизатор

#

oem код

название

цена

1

Shock Abs. Bottom L=46

Shock Abs. Bottom L=46

2

Piston Rod D=14, L=126

Piston Rod D=14, L=126

3

Needle Cpl. D=4, L=142

Needle Cpl. D=4, L=142

4

O-ring 36x0, 5

O-ring 36x0, 5

5

Шайба

Шайба

6

Pin 4x35

Pin 4x35

7

Adj. Knob D=41

Adj. Knob D=41

10

O-ring 35x3

O-ring 35x3

11

Intermediato Ring H=4

Intermediato Ring H=4

12

Circlip 22x1, 2

Circlip 22x1, 2

13

Needle Seat 5x17, 25

Needle Seat 5x17, 25

16

Adaptor Bush Kgw 10x20

Adaptor Bush Kgw 10x20

17

Bushing Kgw 1525

Bushing Kgw 1525

18

Adaptor Bush Kgw 10x22

Adaptor Bush Kgw 10x22

19

Seal Kgw

Seal Kgw

22

Bump Rubber Wp65 Red

Bump Rubber Wp65 Red

23

Screw Cap M37, 65 Steel

Screw Cap M37, 65 Steel

24

Dust Seal 1424

Dust Seal 1424

25

O-ring Nbr 29, 74x3, 53

O-ring Nbr 29, 74x3, 53

26

Adapter Cpl. D=36 H=20, 5

Adapter Cpl. D=36 H=20, 5

27

Shim 28, 5x14x2

Shim 28, 5x14x2

30

Shock Absorb.case Pgb Kgw H=33

Shock Absorb.case Pgb Kgw H=33

31

O-ring 38, 00x2, 00 Nbr 70 Sh

O-ring 38, 00x2, 00 Nbr 70 Sh

32

Tube L=167

Tube L=167

33

Threaded Bush L=70 Black

Threaded Bush L=70 Black

34

Protection Sleeve L=40

Protection Sleeve L=40

41

Counternut

Counternut

42

Adjusting Nut

Adjusting Nut

43

Circlip 38x1, 5

Circlip 38x1, 5

45

O-ring Nbr 5, 28x1, 78

O-ring Nbr 5, 28x1, 78

46

Screw Plug M5x6

Screw Plug M5x6

47

Spring 40n/mm 40-220 220mm Ora

Spring 40n/mm 40-220 220mm Ora

48

Spring Ret. H=3, D=14,5

Spring Ret. H=3, D=14,5

49

Rubber Cap "do Not Open"

Rubber Cap "do Not Open"

50

Shock Absorber Fluid 5 Lt '03

Shock Absorber Fluid 5 Lt '03

60

Rebound Bush H=5, 6

Rebound Bush H=5, 6

75

Piston 6+6xd=5, 5/3, 5 Ba

Piston 6+6xd=5, 5/3, 5 Ba

77

Piston Ring 8x1x108, 3

Piston Ring 8x1x108, 3

78

Bushing 6x9x3

Bushing 6x9x3

79

Bleed Screw M 4x6

Bleed Screw M 4x6

80

Shim D10xd22x2, 5

Shim D10xd22x2, 5

81

Shim 6x9, 5x0, 3

Shim 6x9, 5x0, 3

82

Shim 6x18x0, 1

Shim 6x18x0, 1

83

Piston Rod Nut Cpl. H=15, 2

Piston Rod Nut Cpl. H=15, 2

85

Reservoir Screw L=98 Grey

Reservoir Screw L=98 Grey

86

Separation Piston D=42

Separation Piston D=42

87

O-ring Viton 32x5

O-ring Viton 32x5

88

Piston Ring 3, 9x1, 5x124

Piston Ring 3, 9x1, 5x124

89

Screw For Reservoir Cap M5

Screw For Reservoir Cap M5

90

Cc-compre.damping Control Cpl.

Cc-compre.damping Control Cpl.

91

Lock Washer Jv24

Lock Washer Jv24

92

Steel-ball D=4, 75

Steel-ball D=4, 75

93

Adjusting Knob Cc-mech. Cpl.

Adjusting Knob Cc-mech. Cpl.

94

Bleed Plug R 1/8

Bleed Plug R 1/8
