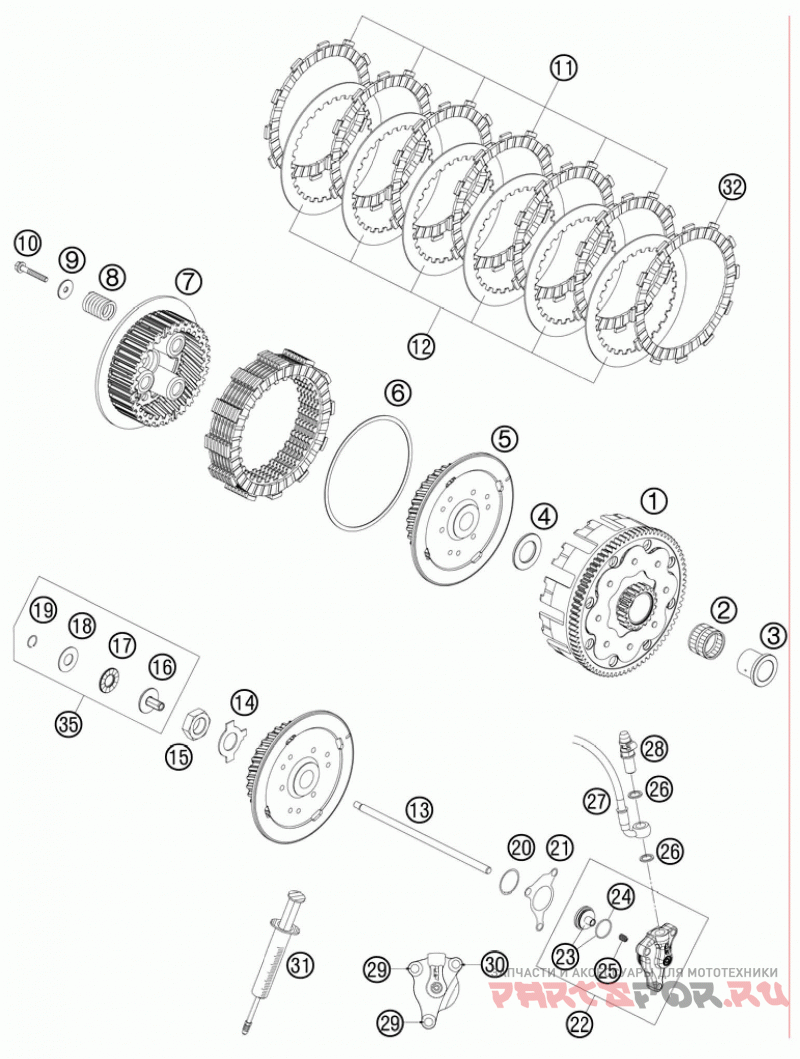

Сцепление

KTM 530 EXC-R USA ENGINE

Сцепление

#

oem код

название

цена

1

Clutch Cage Cpl. 08

Clutch Cage Cpl. 08

2

Needle Bearing K26x30x22zw.kse

Needle Bearing K26x30x22zw.kse

3

Inner Ring

Inner Ring

4

Stop Disc 08

Stop Disc 08

5

Inner Clutch Hub 08

Inner Clutch Hub 08

6

Judder Spring Cpl.

Judder Spring Cpl.

7

Pressure Plate 08

Pressure Plate 08

8

Clutch Spring 08

Clutch Spring 08

9

Washer 6, 2 X 20 X 2 '99

Washer 6, 2 X 20 X 2 '99

10

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

11

Lining Disc 08

Lining Disc 08

12

Steel Disc 08

Steel Disc 08

13

Push Rod 08

Push Rod 08

14

Retaining Plate

Retaining Plate

15

Hexagon Nut Din0936-m18x1, 5 R.

Hexagon Nut Din0936-m18x1, 5 R.

16

Pressure Piece

Pressure Piece

17

Axial Needle Bearing Axk 1226

Axial Needle Bearing Axk 1226

18

Axial Washer As1226 12x26x1

Axial Washer As1226 12x26x1

19

Circlip Din7993-rw12

Circlip Din7993-rw12

20

O-ring 30, 00x1, 50 Nbr 70

O-ring 30, 00x1, 50 Nbr 70

21

Gasket For Slave Cylinder

Gasket For Slave Cylinder

22

Output Cylinder Cpl. 06

Output Cylinder Cpl. 06

23

Piston Cpl.

Piston Cpl.

24

Кольцо уплотнительное

Кольцо уплотнительное

25

Pressure Spring

Pressure Spring

26

Copper Gasket Din7603-10x14x1

Copper Gasket Din7603-10x14x1

27

Clutch Pipe 06

Clutch Pipe 06

28

Bleeder Screw Cpl. 05

Bleeder Screw Cpl. 05

29

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

31

Vent Injektion Hydr. Clutch

Vent Injektion Hydr. Clutch

32

Lining Disc Turned Off

Lining Disc Turned Off

35

Pressure Piece Cpl.

Pressure Piece Cpl.
