Рама для мотоциклов KTM 530 EXC-R USA CHASSIS (2008)

Москва и регионы России

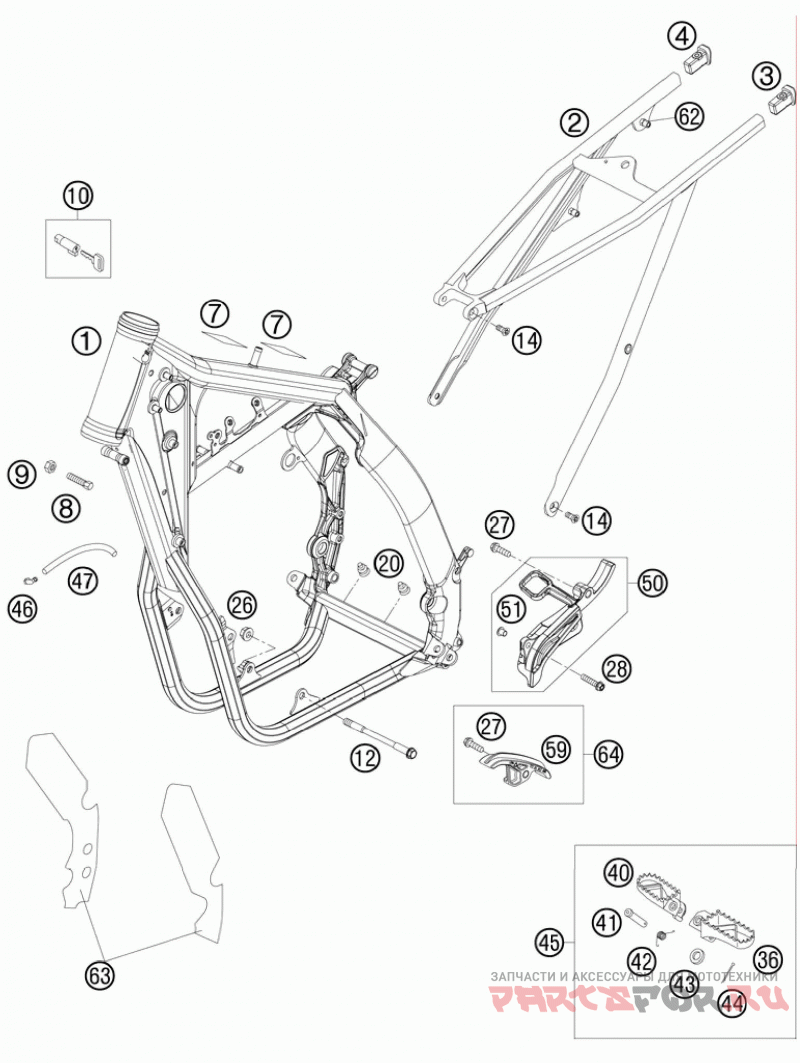

Рама

KTM 530 EXC-R USA CHASSIS

Рама

#

oem код

название

цена

1

Frame Exc-f "dc08" 08

Frame Exc-f "dc08" 08

2

Sub Frame Sx "q7" 07

Sub Frame Sx "q7" 07

3

Sub Frame Application Left 08

Sub Frame Application Left 08

4

Sub Frame Application Right 08

Sub Frame Application Right 08

7

Adh. Foil Transp. 80x80 Mm 04

Adh. Foil Transp. 80x80 Mm 04

8

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

9

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

10

Steering Head Lock 08

Steering Head Lock 08

12

Enginebrac.screw M10x123 Ws=13

Enginebrac.screw M10x123 Ws=13

14

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

20

Plastic Cap Sfl10

Plastic Cap Sfl10

26

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

27

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

28

Воротник Винт M6x35 Tx30

Воротник Винт M6x35 Tx30

36

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

40

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Bolt For Foot Ped 03

Bolt For Foot Ped 03

42

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

43

Washer Din0125-a10, 5

Washer Din0125-a10, 5

44

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

45

Footpeg L.+r. Cpl. 03

Footpeg L.+r. Cpl. 03

46

Angle Piece '97

Angle Piece '97

50

Chain Spr. Cov. 450/525 Exc-f

Chain Spr. Cov. 450/525 Exc-f

51

Spacer Bush. F. Speedomet.bra.

Spacer Bush. F. Speedomet.bra.

59

Chain Sliding Piece Below 07

Chain Sliding Piece Below 07

63

Frame Protection Stick. Set 07

Frame Protection Stick. Set 07

64

Chain Sliding P. Below Cpl. 07

Chain Sliding P. Below Cpl. 07
