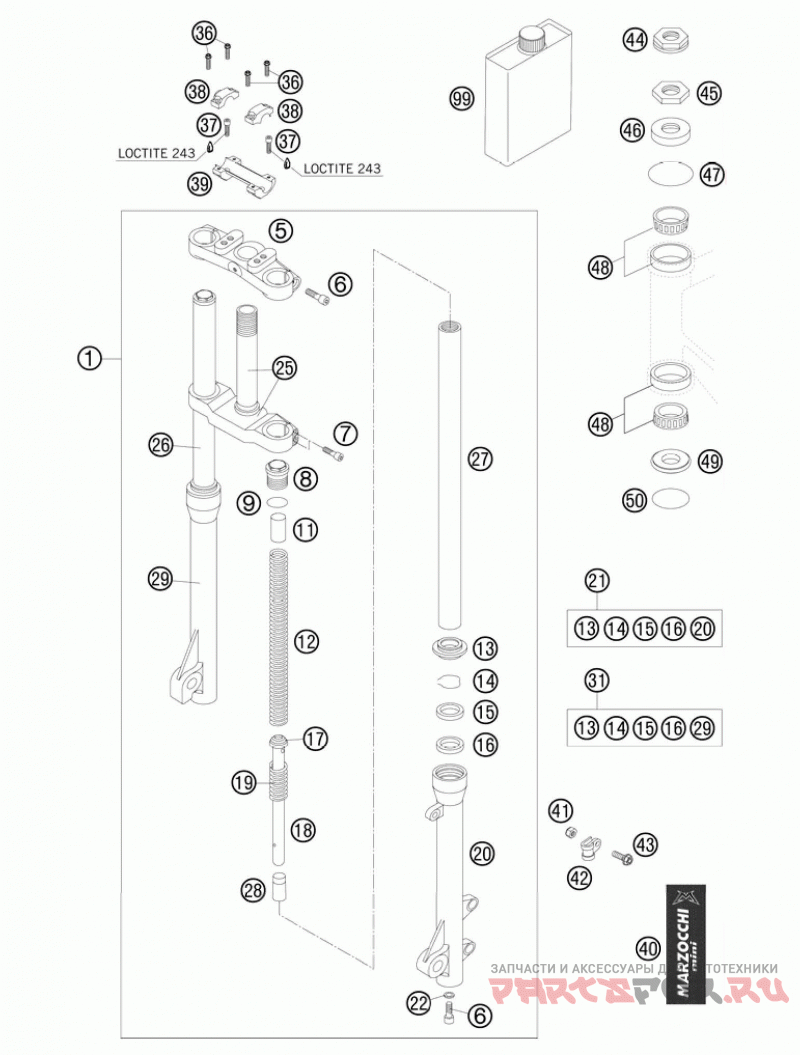

Передняя вилка

KTM 50 SX

KTM
#oem кодцена
1
45101000644
Fork Cpl. Sx Sen. Marz. 2003
5
7501498A
Top Fork Plate 50 Lc Sen. 03
6
0912080303
Ah Screw Din0912-m 8x30
7
0912060253
Ah Screw Din0912-m 6x25
8
7504212AC
Plug Cap
9
7528010
Кольцо уплотнительное
11
7518076
Pre Load Bush 25x2, 5x100
12
75141169
Spring 2n/mm
13
7533297
Пыльник
14
7523264
Стопорное кольцо
15
7528230
Oil Seal 32/42/6, 5-9, 5
16
7522166AA
Washer D42x32, 5x1, 5
17
7524157
Piston Ring D32
18
78031045
Piston Rod Compression Sen. 01
18
78031047
Piston Rod Rebound Sen. 01
19
75141015
Rebound Spring
20
75031570A
Slider L/s 50 Lc 2002
21
75031570A/R
Slider Cpl. L/s 50lc 2002
22
7522225
Washer 14x8x1, 5
25
77051140
Bot.fork Plate Cpl. Sen. 03
26
7708249/R
Fork Tube R/s Senior 02
27
7708250/R
Fork Tube L/s Senior 02
28
7512068
Foot Buffer
29
75031571A
Slider R/s 50 Lc 2002
31
75031571A/R
Slider Cpl. R/s 50lc 2002
36
0025080306
Hh Collar Screw M8x30 Tx40
37
0912100250
Ah Screw Din6912-m10x25, 10.9, L
38
50301038000
Handlebar Clamp D=22mm 2001
39
45101039000
Handlebar Support D=22mm 2001
40
7547325
Sticker Left Side Marzocchi
40
7547331
Sticker Right Side Marzocchi
41
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
42
45001070000
Brake Cable Clamp Rsgu 9/12
43
0025050206
Hh Collar Screw M5x20 Tx30
44
59030029000
Hh Nut M20x1, 5 Ws=27 Right
45
46001043000
Steering Head Nut M20x1, 5
46
49001086000
Covering Cap
47
0770021300
O-ring 40, 94x2, 62 Nbr70
48
49001081000
Tapered Roller Bearing 32004x
49
46001086000
Protection Ring 20, 1x39x5
50
0770360030
O-ring 36, 00x3, 00 Nbr
