Картер двигателя для мотоциклов KTM 50 SX (2008)

Москва и регионы России

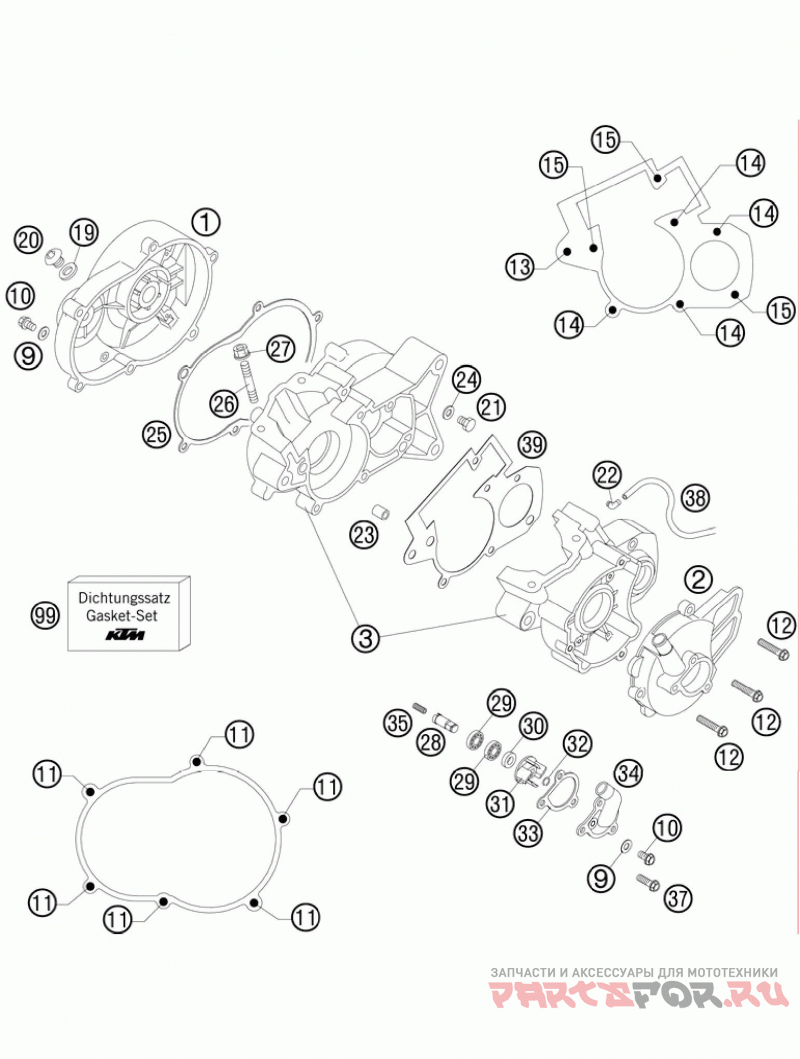

Картер двигателя

KTM 50 SX

Картер двигателя

#

oem код

название

цена

1

Clutch Cover 50 2004

Clutch Cover 50 2004

2

Ignition Cover 50ccm Lc 2001

Ignition Cover 50ccm Lc 2001

3

Enginge Case 50ccm Lc 2001

Enginge Case 50ccm Lc 2001

9

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

10

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

11

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

12

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

13

Hh Collar Screw M 8x60 Ws=10

Hh Collar Screw M 8x60 Ws=10

14

Ah Screw Din0912-m 6x35

Ah Screw Din0912-m 6x35

15

Ah Screw Din0912-m 6x40 A2

Ah Screw Din0912-m 6x40 A2

19

Gasket For Oil Plug

Gasket For Oil Plug

20

Oil Plug 50 Lc 2001

Oil Plug 50 Lc 2001

21

Oil Drain Plug M10 Ws=13

Oil Drain Plug M10 Ws=13

22

Angle Piece 50ccm Lc 2001

Angle Piece 50ccm Lc 2001

23

Dowel 7x9x10

Dowel 7x9x10

24

Copper Gasket Din7603-10x14x1

Copper Gasket Din7603-10x14x1

25

Gasket For Clutch Cover 2001

Gasket For Clutch Cover 2001

26

Stud M8x41

Stud M8x41

27

Collar Nut M8 Ws=10

Collar Nut M8 Ws=10

28

Water Pump Shaft 50 Lc 2007

Water Pump Shaft 50 Lc 2007

29

Wa.pu.bear. 10x19x5 Doublelip

Wa.pu.bear. 10x19x5 Doublelip

30

Shaft Seal Ring 10x18x4

Shaft Seal Ring 10x18x4

31

Water Pump Wheel 60/65 '99

Water Pump Wheel 60/65 '99

32

Circlip Din0471- 9x1

Circlip Din0471- 9x1

33

Gasket Water Pump Cover 02

Gasket Water Pump Cover 02

34

Water Pump Cover 50 Lc 2002

Water Pump Cover 50 Lc 2002

35

Spring For Water Pump Shaft 04

Spring For Water Pump Shaft 04

37

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

39

Engine Case Gasket 50 Lc 2001

Engine Case Gasket 50 Lc 2001

99

Gasket Set Cpl. 50 Lc 2001

Gasket Set Cpl. 50 Lc 2001
