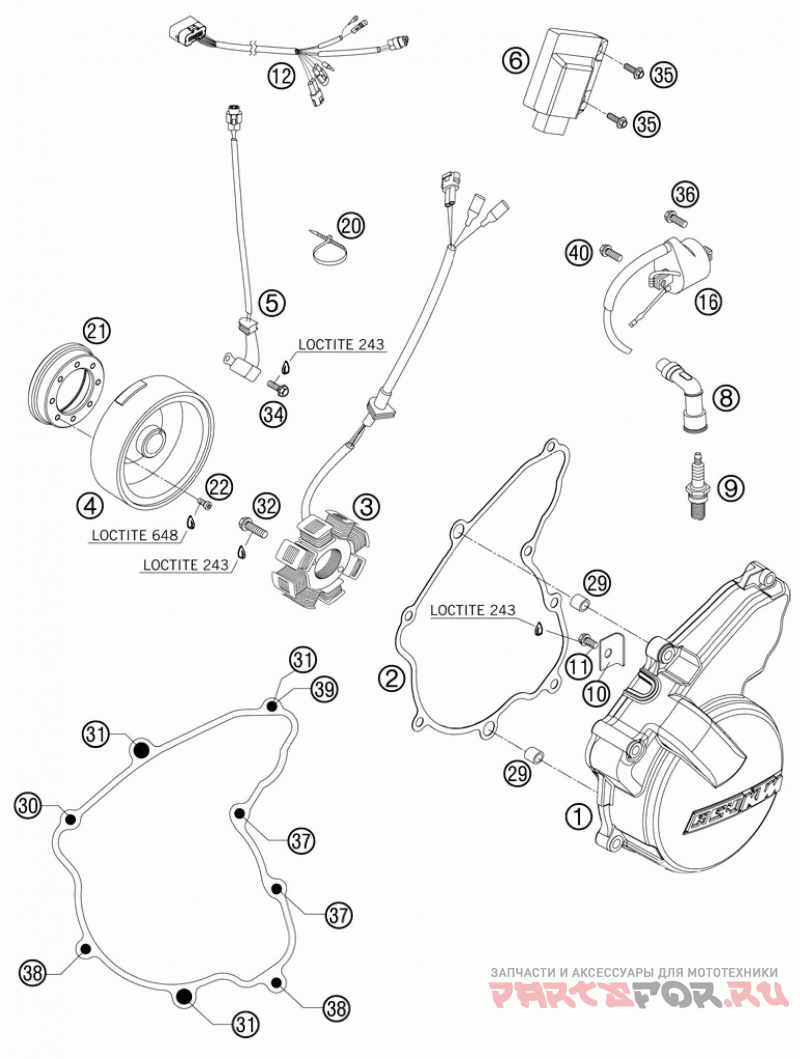

Система зажигания

KTM 250 XC-F USA ENGINE

KTM
#oem кодцена
1
7703010210025
Крышка Зажигания
2
77030140000
Ignition Cover Gasket Exc-f
3
77039104000
Stator 2007
4
77039105100
Маховик
5
77039134000
Pulser Coil 08
6
77039031600
Cdi Unit 250 Sx-f 08
8
59039090100
Spark Plug Connect. Vd05eg 03
9
77039093000
Spark Plug Ngk Cr9ekb 05
10
77030002050
Wire Retaining Bracket 06
11
0015060083
Hh Collar Screw M 6x8 Ws=8
12
59439032100
Wiring Harness For Cdi Exc 04
16
59039006000
Ignitioncoil "ig5128"
21
77040025000
Freewheel Hub
22
00120500810
Ah Screw Din6912-m5x8 10.9
29
49030090000
Шпонка 9, 8 Х 7 Х 10
30
0015060503
Hh Collar Screw M 6x50 Ws=8
31
0015060303
Hh Collar Screw M 6x30 Sw=8
32
0015060203
Hh Collar Screw M 6x20 Ws=8
34
0015050163
Hh Collar Screw M 5x16 Ws=8
35
0024060106
Hh Collar Screw M6x10 Tx30
36
0025060166
Hh Collar Screw M6x16 Tx30
37
0015060253
Hh Collar Screw M 6x25 Ws=8
38
0015060953
Hh Collar Screw M 6x95 Ws=8
39
0603061001
Cu-seal Ring Din7603-6x10x1
40
0025060206
Hh Collar Screw M6x20 Tx30
