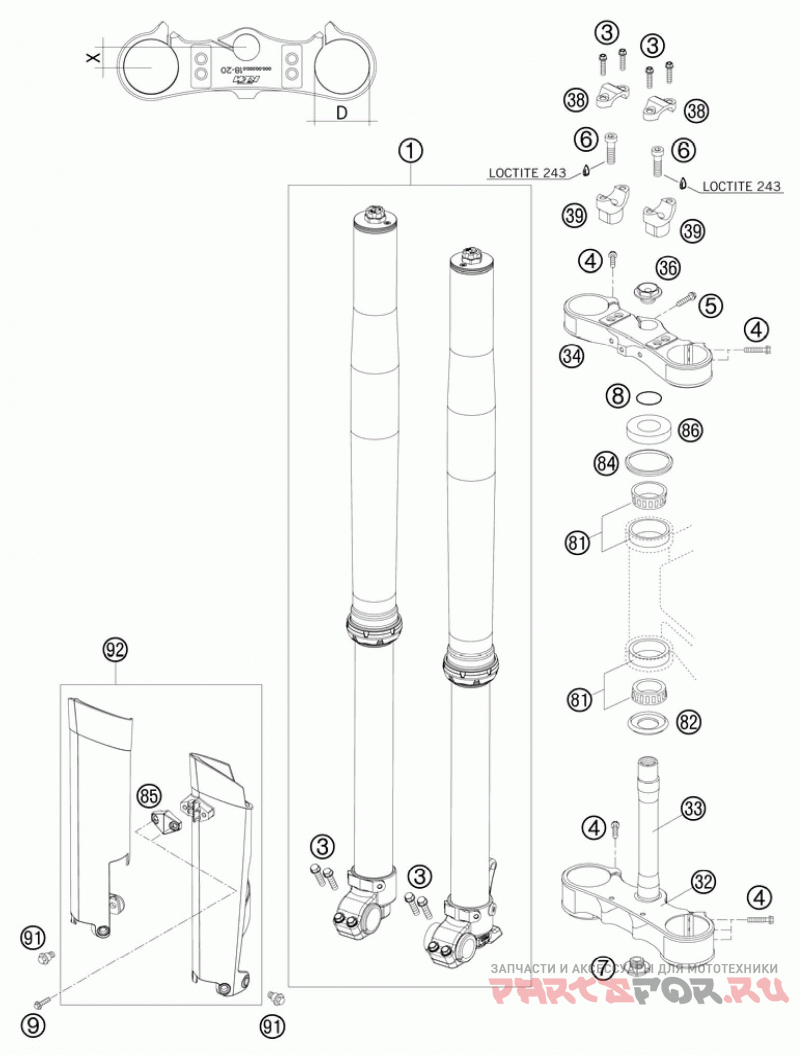

Передняя вилка

KTM 200 XC-W USA CHASSIS

KTM
#oem кодцена
1
14187D02
Fork Wp D=48 Ma125/200 Exc 08
3
0025080256
Винт M8x25 Tx40
4
0025080356
Hh Collar Screw M8x35 Tx40
5
0025080256S
Винт M8x25 Tx40
6
0912100356
Ah Screw Din6912-m10x35 10.9
7
54801036100
Ste.head Scr. M20x1, 5 Ws=27 Sl
8
0770025035
O-ring 25x3, 55 Nbr70 05
9
0017060204
Ejot Pt Screw K60x20 Alu Ws=6
32
59401031019
Bottom Triple Clamp D=60mm 05
33
59401033000
Fork Tube L=237mm 05
34
59401034019
Top Triple Clamp D=54mm 05
36
54801036000
Steer.head Screw M20x1, 5 Ws=27
38
59401038000
Handlebar Clamp 28mm 05
39
59401039037
Handleb.supp. D=28mm H=37mm 05
81
54201081100
Tapered Roller Bearing Cpl. 06
82
54601084200
O-ring Support W. Sealing Lip
84
54601184000
Stearing Head Gasket Top
85
7800108500004
Clamp For Speed Cable D=6mm 08
86
54201086000
Steering Head Cover
91
59001092050
Special Screw M6x12, 5 Ws=8
92
7800109400004
Fork Protectio Le+ri Orange 08
82
54601084100
O-ring Support W. Sealing Lip
