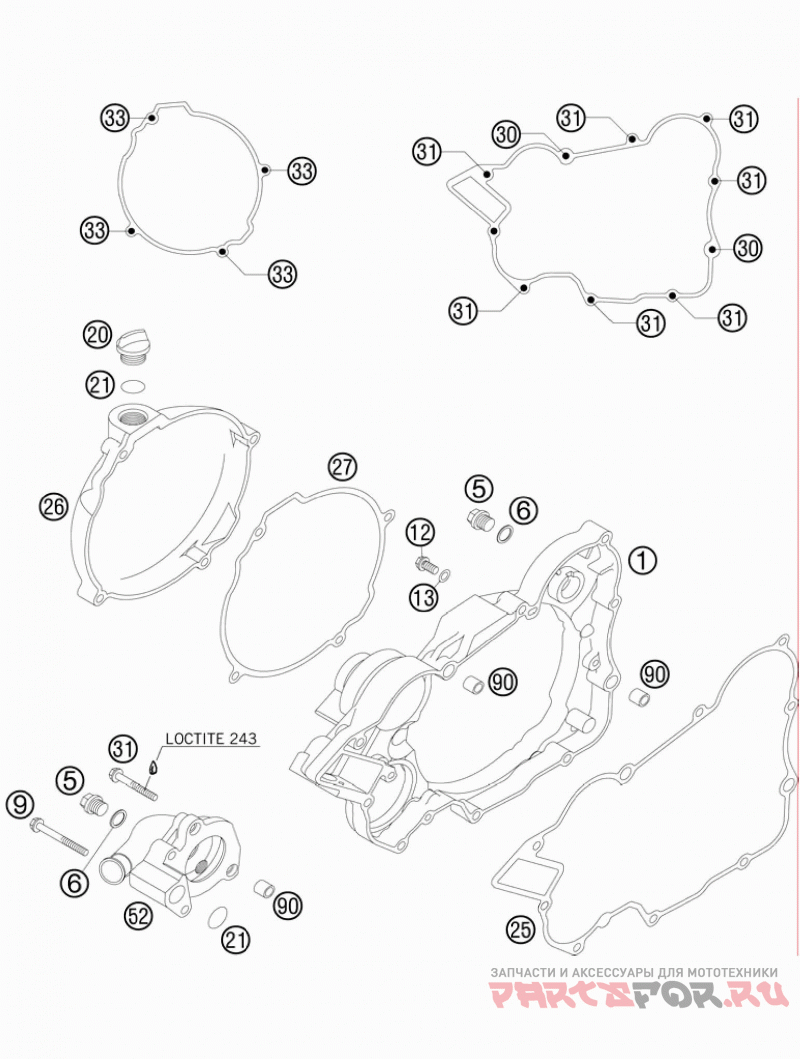

Кожух сцепления

KTM 200 XC USA ENGINE

KTM
#oem кодцена
1
5033000114498
Clutch Cover Cpl.125/200 02
5
0910100003
Plug Din0910-m 10x1
6
0603100141
Copper Gasket Din7603-10x14x1
9
0015060503
Hh Collar Screw M 6x50 Ws=8
12
0015060123
Hh Collar Screw M 6x12 Ws=8
13
0603061001
Cu-seal Ring Din7603-6x10x1
20
58030020100
Пробка M24x3
21
0770160030
O-ring 16, 00x3, 00 Nbr 70
25
50330025000
Clutch Cover Gasket 0, 5mm
26
5033002600098
Clutch Outs.cover 125/200 2001
27
50330027000
Clutch Outs.cover Gasket 1mm
30
0015060403
Hh Collar Screw M 6x40 Ws=8
31
0015060353
Hh Collar Screw M 6x35 Ws=8
33
0015060253
Hh Collar Screw M 6x25 Ws=8
52
50335052000
Water Pump Cover 125/200 '98
90
49030090000
Шпонка 9, 8 Х 7 Х 10
30
0025060406
Hh Collar Screw M6x40 Tx30
