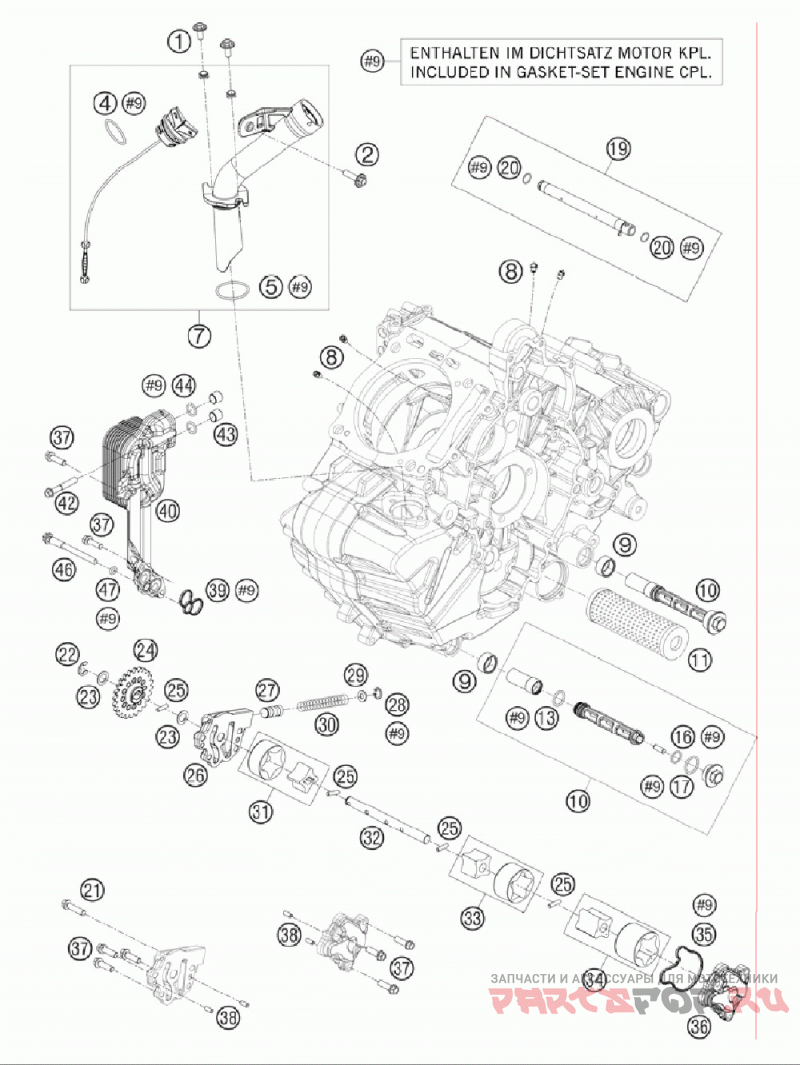

Масляная система

KTM 1190 RC8 USA ENGINE

KTM
#oem кодцена
1
0014060153
Hh Collar Screw M 6x15 Ws=8
2
0014060203
Hh Collar Screw M 6x20 Ws=8
4
0770300020
O-ring 30x2, 0 Fpm
5
0770320020
O-ring 32, 00x2, 00
7
61238085100
Oil Filler Plug Cpl.
8
60030063070
Oil Jet 70 M5
9
61238017000
Oil Screen Bushing 08
10
61238021000
Oil Screen Cpl.
11
60038015000
Oil Filter 03
13
0770140200
O-ring 14, 00x2, 00
16
0770125015
O-ring 12, 5x1, 5 Nbr
17
0770170200
O-ring 17, 00x2, 00
19
61230065000
Oil Injection Tube Cpl. 08
20
0770010010
Кольцо 10,00x1,00
21
0015060253
Hh Collar Screw M 6x25 Ws=8
22
0799080000
Tab Washer Din6799 Rs8
23
60038007010
Washer 10x16x0, 5 03
24
60038001124
Oil Pump Gear 24-t
25
0402041580
Needle Roller Nrb 4x15, 8 G2
26
61238009144
Pressure Pump Cover Cpl.
27
60038028000
Control Piston Lc8 03
28
0472012010
Circlip Din0472 J12
29
0988060121
Washer 6x12x1 Hrc 40-45
30
61238026000
Control Spring
31
60038009000
Rotor-set 19mm 03
32
61238002000
Oil Pump Shaft 08
33
61238011000
Rotor-set 22mm 08
34
61238010000
Rotor-set 30mm 08
35
61238008150
Molded Ring Suction Pump Cover
36
61238008000
Suc. Pump Cover Crank Case 08
37
0015060203
Hh Collar Screw M 6x20 Ws=8
38
0402050980
Needle Roller Din5402 5x9, 8
39
61238051000
Molded Ring
40
61238050000
Oil Cooler Cpl.
42
0015060503
Hh Collar Screw M 6x50 Ws=8
43
61238052000
Втулка
44
0770012021
O-ring 12x2 Viton Green
46
61238055000
Regulating Screw
47
0770060020
O-ring 6, 00x2, 00 Nbr 70
