Картер двигателя для мотоциклов KTM 1190 RC8 USA ENGINE (2008)

Москва и регионы России

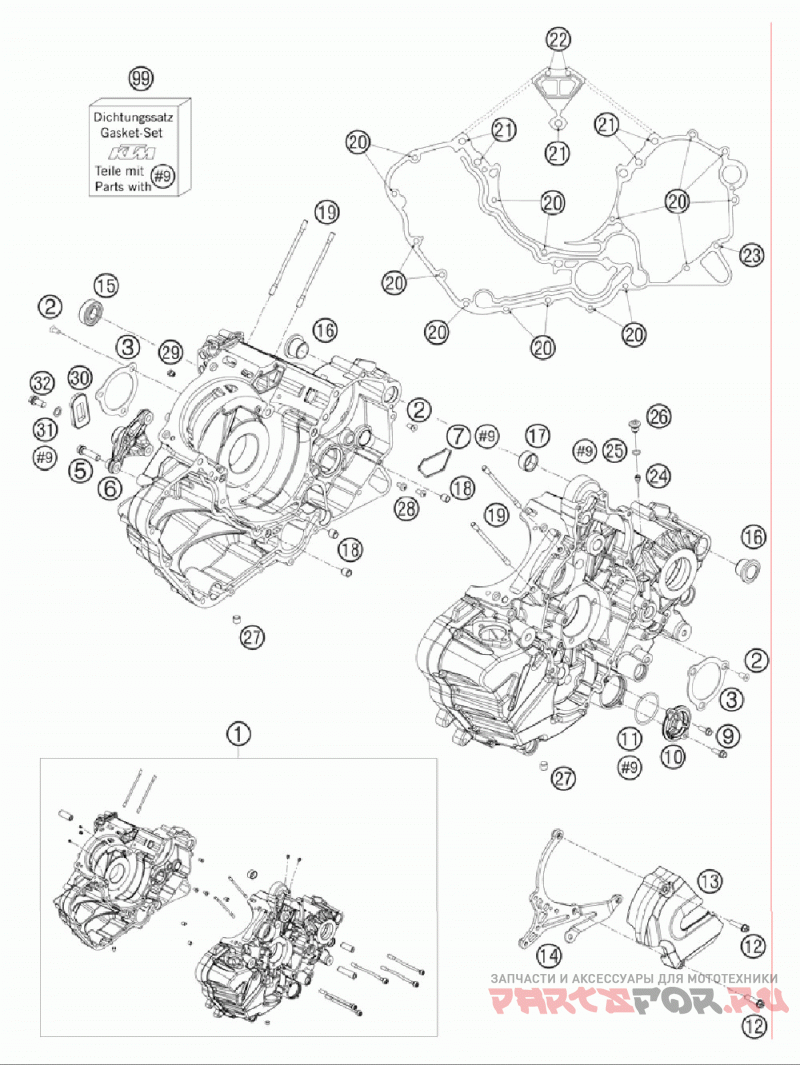

Картер двигателя

KTM 1190 RC8 USA ENGINE

Картер двигателя

#

oem код

название

цена

1

Engine Case Cpl. With Bearings

Engine Case Cpl. With Bearings

2

Int. Torx Flat Head M 5x10 8.8

Int. Torx Flat Head M 5x10 8.8

3

Bracket For Bearing Insert 08

Bracket For Bearing Insert 08

5

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

6

Engine Bracket R/s

Engine Bracket R/s

7

Molded Ring Case Center

Molded Ring Case Center

9

Hh Collar Screw M 5x16 Ws=8

Hh Collar Screw M 5x16 Ws=8

10

Oilfilter Cap

Oilfilter Cap

11

O-ring 39, 34x2, 62 Nbr 70 Sh

O-ring 39, 34x2, 62 Nbr 70 Sh

12

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

13

Pinion Cover Cpl.

Pinion Cover Cpl.

14

Chain Fail. Protection Cpl.

Chain Fail. Protection Cpl.

15

Cyl.roller Bear. Nj202 Ecp C3

Cyl.roller Bear. Nj202 Ecp C3

16

Swing Bearing Outside Lc8 03

Swing Bearing Outside Lc8 03

17

Dowel 20, 1x24x12 03

Dowel 20, 1x24x12 03

18

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

19

Stud M6x110 08

Stud M6x110 08

20

Hh Collar Screw M 6x80 Ws=8

Hh Collar Screw M 6x80 Ws=8

21

Case Screw M8x125 As 08

Case Screw M8x125 As 08

22

Hh Collar Screw M 6x90 Ws=8

Hh Collar Screw M 6x90 Ws=8

23

Hh Collar Screw M 6x50 Ws=8

Hh Collar Screw M 6x50 Ws=8

24

Reducing Jet "30" M6x0, 75

Reducing Jet "30" M6x0, 75

25

O-ring 9x1, 5 Nbr

O-ring 9x1, 5 Nbr

26

Резьбовая пробка

Резьбовая пробка

27

Plug Din0913-m10x1x8

Plug Din0913-m10x1x8

28

Int. Torx Oval Head M 5x10 8.8

Int. Torx Oval Head M 5x10 8.8

29

Main Jet 140

Main Jet 140

30

Sls-valve 03

Sls-valve 03

31

Copper Gask.din7603- 8, 2x13x1

Copper Gask.din7603- 8, 2x13x1

32

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

99

Gasket Set Engine Cpl.

Gasket Set Engine Cpl.
