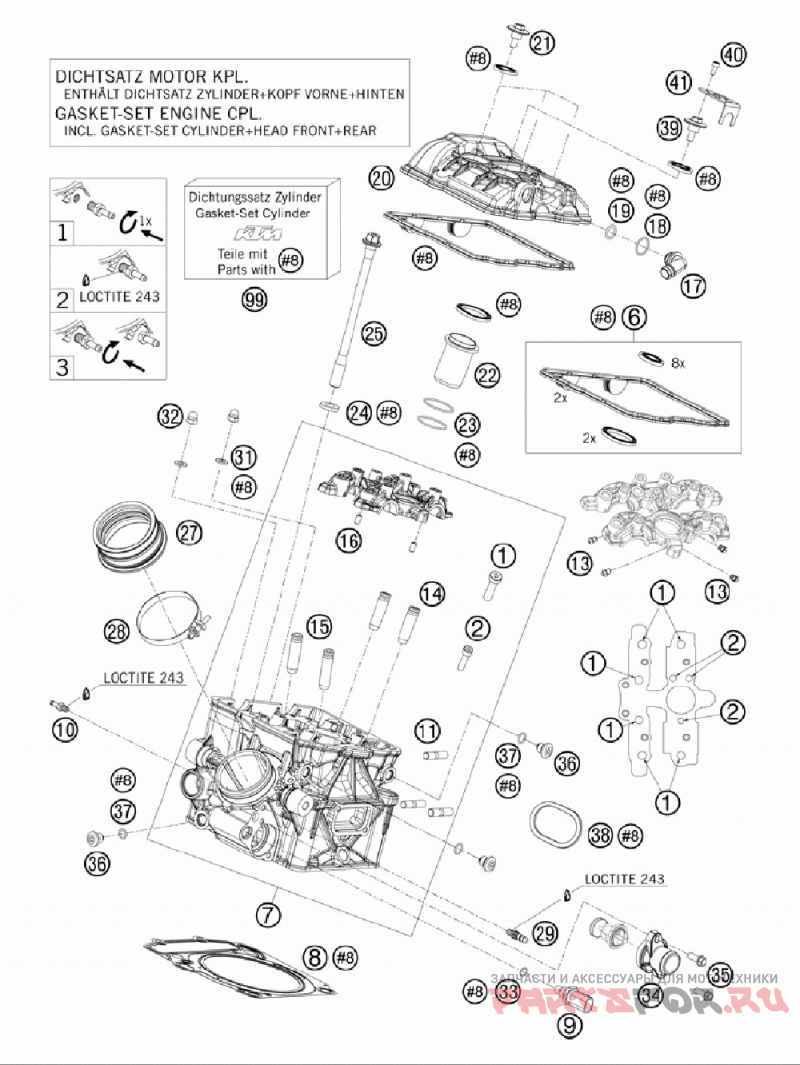

Головка цилиндра задняя

KTM 1190 RC8 USA ENGINE

KTM
#oem кодцена
1
0984080305
Ah Screw Din7984-m 8x30 10.9
2
0912060255
Ah Screw Din0912-m 6x25 10.9
6
61236099100
Valve Cover Gasket Set
7
61236120000
Cyl.head Rc8 Rear 08
8
61230036000
Cylinder Head Gasget 08
9
60011252000
Temperat.-sensor Water Lc8 02
10
61036023100
Vacuum Conection 2006
11
0835080165
Stud M 8x16 10.9
13
60030063050
Oil Jet 50 05
14
61236026000
Valve Guide Exhaust 08
15
61236025000
Valve Guide Intake 08
16
0402050980
Needle Roller Din5402 5x9, 8
17
61236082100
Connecting Angle
18
0770150151
O-ring 15, 00x1, 50 Viton
19
0770120020
O-ring 12, 00x2, 00 Nbr 70
20
61236152000
Valve Cover Rear 08
21
60036052020
Collar Screw M 6 Ws=10 03
22
61236075000
Insert Spark-plug Shaft 08
23
0770298178
O-ring 29, 87x1, 78 Viton
24
61236079050
Washer 11, 1x20x3 08
25
61236079000
Cylinder Head Screw 08
27
61236044000
Rubbersleeve Intake Flange 08
28
61236048000
Hose Clamp Gemi 66 / 1
29
60036023100
Vacuum Conection M6/0, 5mm
31
0125060003
Washer Din0125-a 6, 4
32
0587060002
Hh Cap Nut Din1587-m 6 Ss.
33
0770100020
O-ring 10, 00x2, 00 Silcone
34
61235019100
Water Connection Cpl.
35
0015060203
Hh Collar Screw M 6x20 Ws=8
36
77336056095
Резьбовая пробка
37
0770090015
O-ring 9x1, 5 Nbr
38
69005005000
Exhaust Pipe Flange Gasket
39
61236052020
Collar Screw M6/m4
40
0912040103
Ah.screw Din0912-m 4x10
41
61236082050
Connecting Angle Retain. Plate
99
61230097000
Gasket Set Cylinder+head F+r
