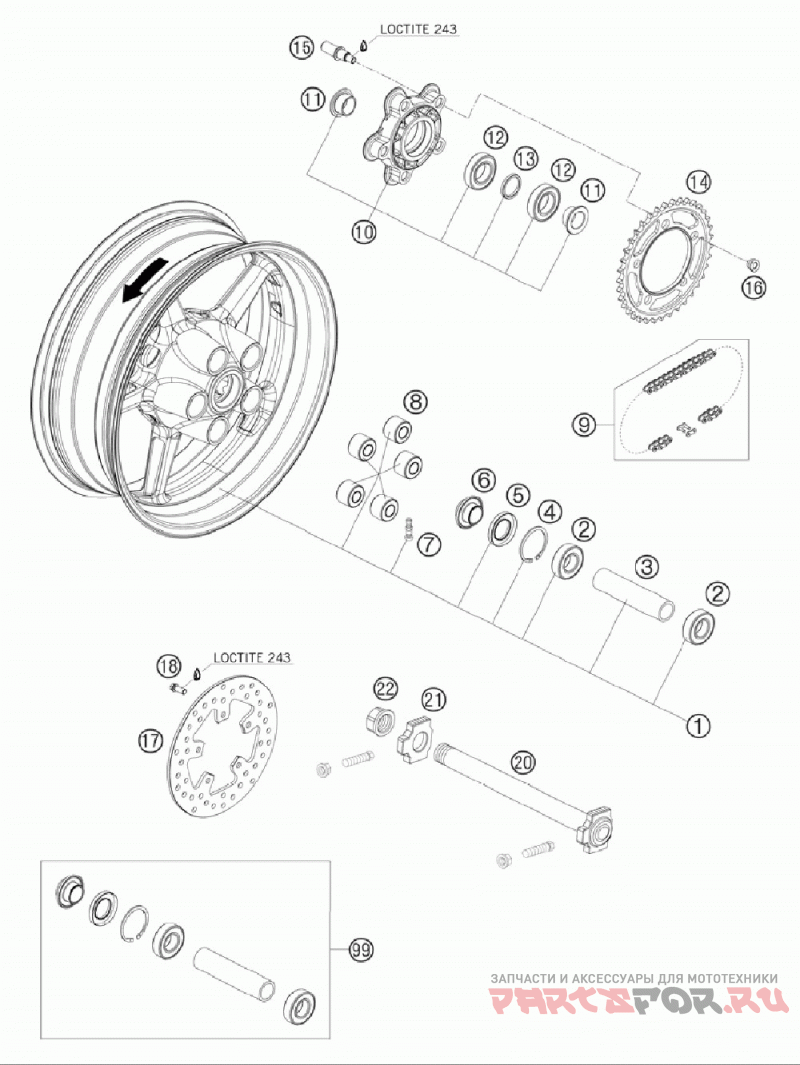

Заднее колесо

KTM 1190 RC 8 ORANGE 08 / PS 09 CHASSIS

KTM
#oem кодцена
1
6901000104430
Rearwheel Alu Black 6, 0x17
2
0625062052
Gr.ball Bear. 6205-2rshc3hmtf7
3
69010011000
Bearing Spacer Tube
4
0472052200
Circlip Din0472-52x2
5
0760305271
Shaft Seal Ring 30x52x7
6
69010013000
Dist.bushing Rear Wheel R/s 08
7
58709076000
Valve Cpl. Brembo Duke 2003
8
61010059000
Damping Rubber 05
9
69010065108
Chain Did 525 Hv2 108 Rolls
10
69010050044
Sprocket Support Cpl.
11
69010012000
Spacer Chain Wheel Support
12
0625060060
Ball Bearing 6006 Ddu2cg23s6nm
13
69010054000
Bear.dist. Ring 30, 3x37, 8x4, 65
14
69010051037
Chain Wheel Steel 37-t Rc8
15
61010056000
Bolt For Sprocket Support 05
16
61010057000
Nut Rear Sprocket 05
17
69010060000
Brake Disc Ktm 690 08
18
61009062018
Special Screw M8x18 05
20
69010081044
Wheel Spindle Rear 08
21
60010084000
Chain Tensioner R/s Lc8 03
22
61010086000
Collar Nut M25x1, 5 Ws=32 05
99
69010015000
Rear Wheel Repair Kit
1
6901000114430
Rear Rim 6x17" Cpl. 09
