Рама

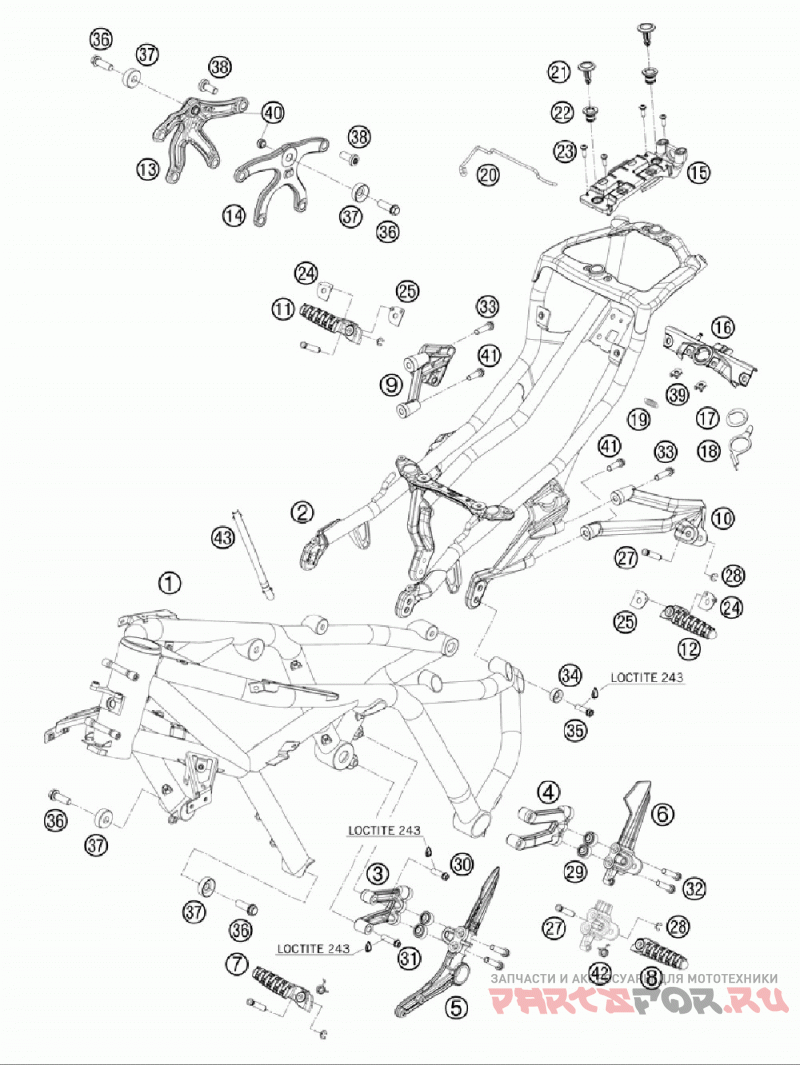

KTM 1190 RC 8 ORANGE 08 / PS 09 CHASSIS

KTM
#oem кодцена
1
6900300100033
Frame "oa08" Rc8 08
2
6900300200092
Sub Frame Platinum 08
3
69003039000
Footrest Bracket R/s 08
4
6900303800001S
Footrest Bracket L/s 09
5
69003039050
Footrest Mounting R/s 08
6
6900303805001S
Footrest Mounting L/s 09
7
69003041000
Footrest Front R/s 08
8
6900304000001S
Footrest Front L/s 09
9
6900304900001S
Footrest Bracket Rear R/s
10
6900304800001S
Footrest Bracket Rear L/s
11
69003051033
Footrest Rear R/s Cpl.
12
69003050033
Footrest Rear L/s Cpl.
13
69003006000
Engine Support R/s 08
14
69003005000
Engine Support L/s 08
15
69008025000
Rear Seat Adjustment
16
69008027000
Lock Bridge
17
69008025070
Washer Lever Rear Seat Release
18
69008025160
Lever Rear Seat Release
19
69008025080
Spring F. Rear Seat Lock
20
69008025050
Adjustment Wire Rear Seat
21
69008026050
Closure Cap
22
69008026000
Guide Bushing
23
0081050161
Болт 50x16 1451
24
60003052000
Engage Panel Footrest R/s 03
25
60003152000
Engage Panel Footrest L/s 03
27
60003044000
Bolt For Footrest Rear 03
28
0799060003
Tab Washer Din6799-rs 6, 0
29
69003047000
Distance Bushing 8, 5x21x14 Alu
30
0025080256S
Винт M8x25 Tx40
31
0025080306S
Hh Collar Screw M8x30 Tx40
32
0025080356
Hh Collar Screw M8x35 Tx40
33
0025080556
Hh Collar Screw M8x55 Tx40
34
6900300400001
Washer Sub Frame Mounting 08
36
0035100309S
Ah-collar Screw M10x30 Isa45
37
6900300700001
Washer Engine Support 08
38
0035100249
Ah-collar Screw M10x24 Isa45
39
69008021080
Range Change Metal Nut M5
40
69004095000
Adaptor Nut M10
41
0025080506
Hh Collar Screw M8x50 Tx40
42
61003042000
Spring Footrest Front 05
43
69011047000
Cable Duct Brake Light Sw. Rc8
