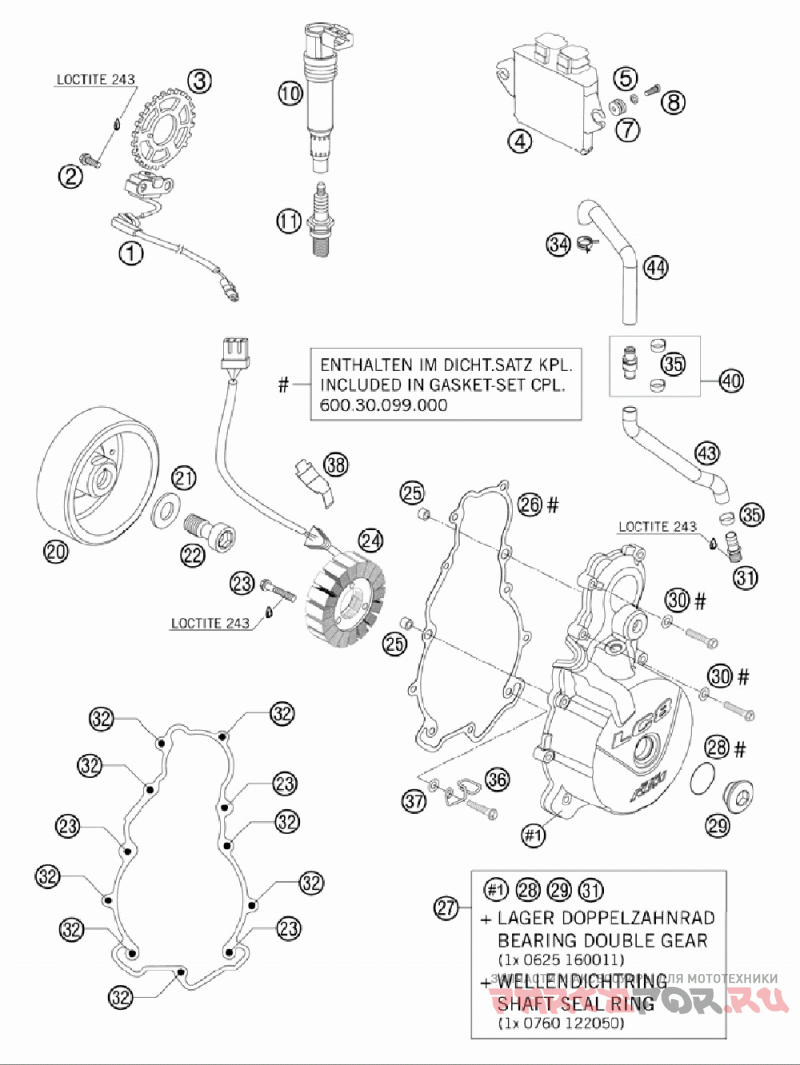

Система зажигания

KTM 990 SUPERDUKE USA ENGINE

Система зажигания

#

oem код

название

цена

1

Pulse Generator Lc8 04

Pulse Generator Lc8 04

2

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

3

Coil Sproket 22z O. Cyl. Pin

Coil Sproket 22z O. Cyl. Pin

4

Control Unit Efi 990 06

Control Unit Efi 990 06

5

Special Washer D=16, 5mm 03

Special Washer D=16, 5mm 03

7

Vibration Damper Digitalbox 03

Vibration Damper Digitalbox 03

8

Ah Screw Din6912 M6x12

Ah Screw Din6912 M6x12

10

Ручка Катушки 03

Ручка Катушки 03

11

Spark Plug Kr8di

Spark Plug Kr8di

20

Ignition Rotor 04

Ignition Rotor 04

21

Washer 17x32x4 03

Washer 17x32x4 03

22

Ah Expand. Screw M16x1, 5 05

Ah Expand. Screw M16x1, 5 05

23

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

24

Stator 03

Stator 03

25

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

26

Ignit.cover Gask.matri.cs0, 5mm

Ignit.cover Gask.matri.cs0, 5mm

27

Ignition Cover Cpl. 06

Ignition Cover Cpl. 06

28

O-ring 24x2, 5 Nbr

O-ring 24x2, 5 Nbr

29

Винт Штекер Размер Резьбы: M24x1, 5 Па 6.6

Винт Штекер Размер Резьбы: M24x1, 5 Па 6.6

30

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

31

Ventilation Connector M16x1, 5

Ventilation Connector M16x1, 5

32

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

34

Clamp Std Dn22

Clamp Std Dn22

35

Variable One-ear Clamp 22, 6mm

Variable One-ear Clamp 22, 6mm

36

Cable Support 03

Cable Support 03

37

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

38

Генератор Кабеленесущая 03

Генератор Кабеленесущая 03

43

Engine Breather Hose Bottom

Engine Breather Hose Bottom

44

Engine Breather Hose Top

Engine Breather Hose Top
