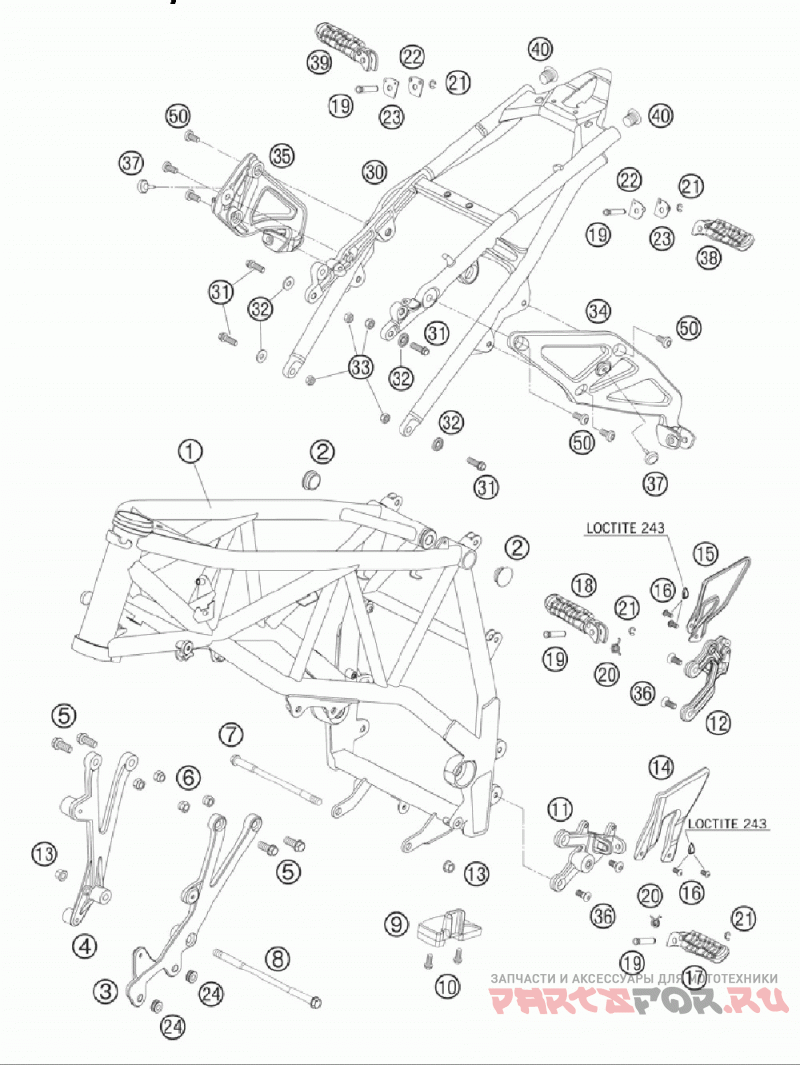

Frame, sub frame

KTM 990 SUPER DUKE ORANGE USA CHASSIS

KTM
#oem кодцена
1
6110300110033
% Frame "fg07" Blk 990 Sd07
2
61003088000
Plug Sfl28 05
3
6100300500001S
Engine Support Left 07
4
6100300600001S
Engine Support Right 07
5
0015100243
Hh Collar Screw M10x24 Ws=13
6
54310086100
Self Locking Nut M10 Cu Ws=14
7
60003013000
Engine Brac. Screw M10x172 03
8
60003014000
Engine Brac. Screw M10x206 03
9
60004076100
Chain Sliding Block 05
10
0017060204
Ejot Pt Screw K60x20 Alu Ws=6
11
6100303800001S
Footrest Bracket Front L/s 07
12
6100303900001S
Footrest Bracket Front R/s 07
13
54630044000
Collar Nut M10 Ws=13
14
61134032000
Heel Protector L/s 07
15
61113032000
Heel Protector R/s 07
16
0738060101
Cou.sunk Scr. Ah Iso7380 M6x10
17
61003050000
Footrest Front L/s Cpl. 05
18
61003051000
Footrest Front R/s Cpl. 05
19
60003044000
Bolt For Footrest Rear 03
20
61003042000
Spring Footrest Front 05
21
0799060003
Tab Washer Din6799-rs 6, 0
22
60003152000
Engage Panel Footrest L/s 03
23
60003052000
Engage Panel Footrest R/s 03
24
60003098000
Rubber Sleeve 03
30
6110300210092
Cantilever Platin 07
31
0012080303
Ah Screw Din6912-m 8x30
32
61003002058
Stepped Washer 8, 5x20x3, 5 05
33
0926080003
Stop Nut Din6926 M8 Ss
34
6100304800001S
Footrest Bracket Rear L/s 07
35
6100304900001S
Footrest Bracket Rear R/s 07
36
54610052000
Sprocket Screw-ah M8x20 Ws=6
37
60006001021
Distance Rubber Airbox 03
38
60003050000
Footrest Cpl. L/s Rear 03
39
60003051000
Footrest Cpl. R/s Rear 03
40
61003089000
Plug Sfl 22x1, 8-3, 5
50
61003052000
Special Screw M8x18 06
