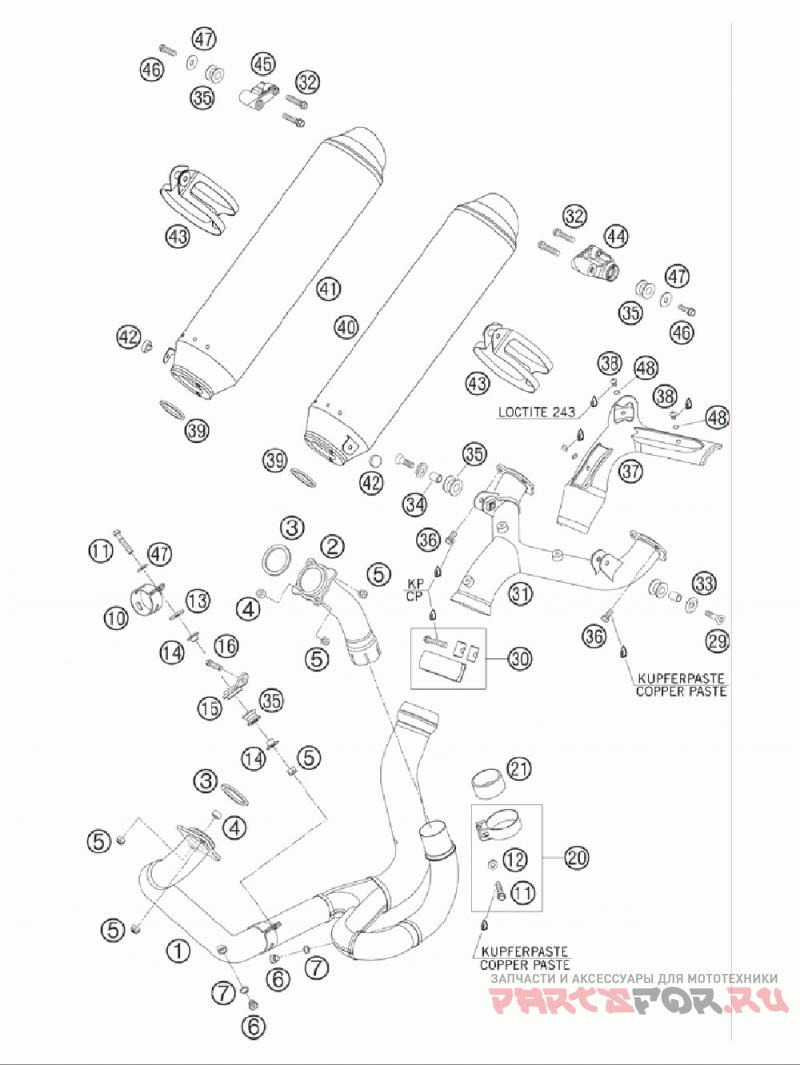

Глушитель

KTM 950 SUPERMOTO R USA CHASSIS

KTM
#oem кодцена
1
62505007100
Exhaust Pipe Front 05
2
62505008000
Exhaust Pipe Rear 05
3
60005005000
Gasket 03
4
61005009000
Spacer Bush. 8, 5x15x7, 5 05
5
51010086100
Self Locking Nut M 8 Cu
6
0908100000
Plug Din0908-m10x1 A2
7
0603100141
Copper Gasket Din7603-10x14x1
10
61005007049
Clamp Exhaust Pipe 05
11
0015080403
Hh Collar Screw M 8x40 Ws=10
12
0125080003
Washer Din0125-a 8, 4
13
51005067000
Insolate Washer 8, 5x28x3
14
58405050065
Collar Bush 8, 5x12x23, 5x10
15
62505015150
Exhaust Pipe Bracket Front 07
16
0015080353
Hh Collar Screw M 8x35 Ws=10
20
61005051100
Clamp Cpl. D=53, 2mm 05
21
58405005001
Graphitring 45x50x25
29
0991080353
Flat Head Screw Din7991-m 8x35
30
61005052000
Exhaust Clamp Cpl. 05
31
62505048100
Distributor Tube 05
32
0025080306
Hh Collar Screw M8x30 Tx40
33
58303061100
Special Washer Alu 8x24 Mm Elo
34
62505069000
Spacer Bush. 8, 5x12x18mm 05
35
54305068100
Damp. Component Silicone Grey
36
0015080163
Hh Collar Screw M 8x16 Ws=10
37
62505047000
Thermal Shield 05
38
58605083010
Screw Torx M5x10 05
39
60005005002
Exhaust Gasket 03
40
62505183100
Silencer L/s Usa 06
41
62505183000
Silencer R/s Usa 06
42
54308042000
Rubber Buffer
43
60005095000
Clamp For Silencer Cpl. 03
44
6000508500001S
Silencer/handle Holder L/s 07
45
6000508600001S
Silencer/handle Holder R/s 07
46
0025080256
Винт M8x25 Tx40
47
0021080003
Washer Din9021-a 8, 4
48
0797050000
Tooth Lock Washer Din6797-j
