Frame, sub frame для мотоциклов KTM 950 SUPERMOTO ORANGE USA CHASSIS (2007)

Москва и регионы России

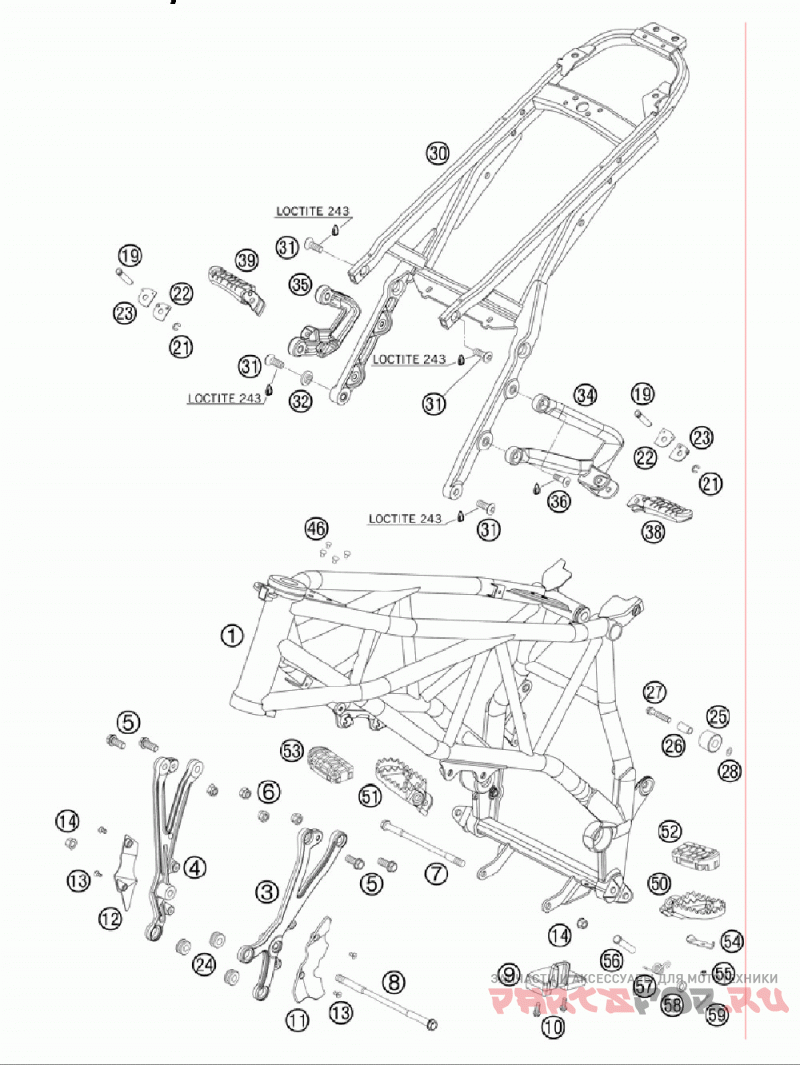

Frame, sub frame

KTM 950 SUPERMOTO ORANGE USA CHASSIS

Frame, sub frame

#

oem код

название

цена

1

Frame "fc07" Matt Black 07

Frame "fc07" Matt Black 07

3

Engine Support L/s 07

Engine Support L/s 07

4

Engine Support R/s 07

Engine Support R/s 07

5

Hh Collar Screw M10x24 Ws=13

Hh Collar Screw M10x24 Ws=13

6

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

7

Engine Brac. Screw M10x172 03

Engine Brac. Screw M10x172 03

8

Engine Brac. Screw M10x206 03

Engine Brac. Screw M10x206 03

9

Chain Sliding Block 05

Chain Sliding Block 05

10

Ejot Pt Screw K60x20 Alu Ws=6

Ejot Pt Screw K60x20 Alu Ws=6

11

Cover Engine Support Left 05

Cover Engine Support Left 05

12

Cover Engine Support Right 05

Cover Engine Support Right 05

13

Flat H.scew Din7991-m5x10 10.9

Flat H.scew Din7991-m5x10 10.9

14

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

19

Bolt For Footrest Rear 03

Bolt For Footrest Rear 03

21

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

22

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

23

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

24

Rubber Sleeve 03

Rubber Sleeve 03

25

Chain Roll 12x29x22, 5 '98

Chain Roll 12x29x22, 5 '98

26

Bush Chain Roll 8x12x23 '98

Bush Chain Roll 8x12x23 '98

27

Hh Collar Screw M 8x40 Ws=10

Hh Collar Screw M 8x40 Ws=10

28

Стопорная шайба 8 мм

Стопорная шайба 8 мм

30

Sub Frame 07

Sub Frame 07

31

Fl.head Screw M10x1, 25 L=27 03

Fl.head Screw M10x1, 25 L=27 03

32

Collar Bushing 10x15x25x4 03

Collar Bushing 10x15x25x4 03

34

Footrest Bracket Rear L/s 07

Footrest Bracket Rear L/s 07

35

Footrest Bracket Rear R/s 07

Footrest Bracket Rear R/s 07

36

Sprocket Screw-ah M8x26 Ws=6

Sprocket Screw-ah M8x26 Ws=6

38

Footrest Cpl. L/s Rear 03

Footrest Cpl. L/s Rear 03

39

Footrest Cpl. R/s Rear 03

Footrest Cpl. R/s Rear 03

46

Plug Zk 8/5 06

Plug Zk 8/5 06

50

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

51

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

52

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

53

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

54

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

55

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

56

Bolt For Foot Ped 03

Bolt For Foot Ped 03

57

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

58

Washer Din0125-a10, 5

Washer Din0125-a10, 5

59

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel
