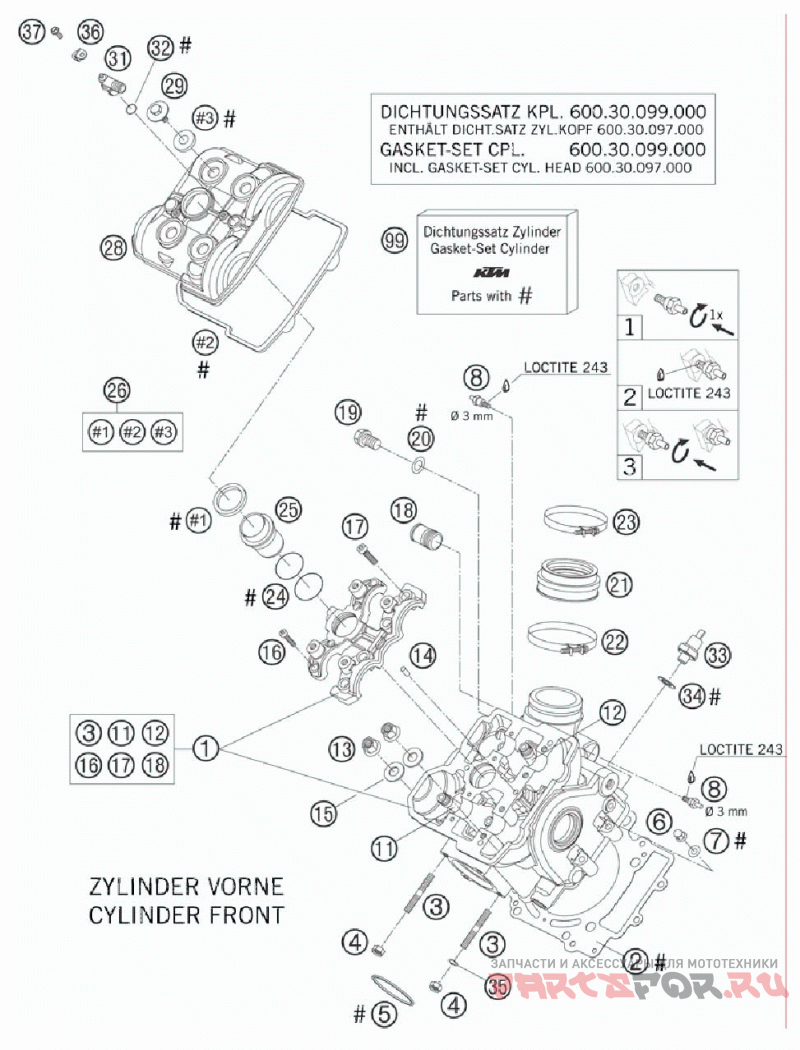

Головка цилиндра передняя

KTM 950 SUPERENDURO R ENGINE

KTM
#oem кодцена
1
60036020144
Cylinder Head Cpl. Front 05
2
60030036000
Cylinder Head Gasket 0, 5 101mm
3
0835080165
Stud M 8x16 10.9
4
51010086100
Self Locking Nut M 8 Cu
5
60005005000
Gasket 03
6
0587060002
Hh Cap Nut Din1587-m 6 Ss.
7
0125060003
Washer Din0125-a 6, 4
8
58336020190
Vacuum Conection M6/3mm '97
11
60036026100
Valve Giude Outlet '05
12
60036025100
Valve Giude Outlet '05
13
60036078200
Collar Nut M 10 Ws=13 05
14
0402050980
Needle Roller Din5402 5x9, 8
15
60036078050
Shim 10, 2x19x1, 5mm 05
16
0912060255
Ah Screw Din0912-m 6x25 10.9
17
0984080305
Ah Screw Din7984-m 8x30 10.9
18
58030010200
Screw In Nozzle M20x1, 5
19
0908120153
Plug Din0908-m12x1, 5
20
58038022000
Кольцо 12x18x1, 5
21
60036044000
Intake Boot 03
22
60036047100
Hose Clamp Gemi 62 Mm 03
23
59030061100
Hose Clamp Gemi 56mm 03
24
0770298178
O-ring 29, 87x1, 78 Viton
25
60036075000
Insert Spark-plug Shaft Lc8 03
26
60036099000
Valve Cover Gasket Set Fr+rr
28
6003625210023
Valve Cover Front
29
60036052020
Collar Screw M 6 Ws=10 03
31
60038082000
Angle Connector Lc8 03
32
0770080020
O-ring 8x2 Silicone
33
60038091100
Oil-pressure Switch Lc8 04
34
0603100141
Copper Gasket Din7603-10x14x1
35
61005009000
Spacer Bush. 8, 5x15x7, 5 05
36
69006015050
Bracket F. Efi-plug
37
0009050103
Special Screw M 5, 0x10
99
60030097000
Gasket Set Cyl. Head Kpl. 03
