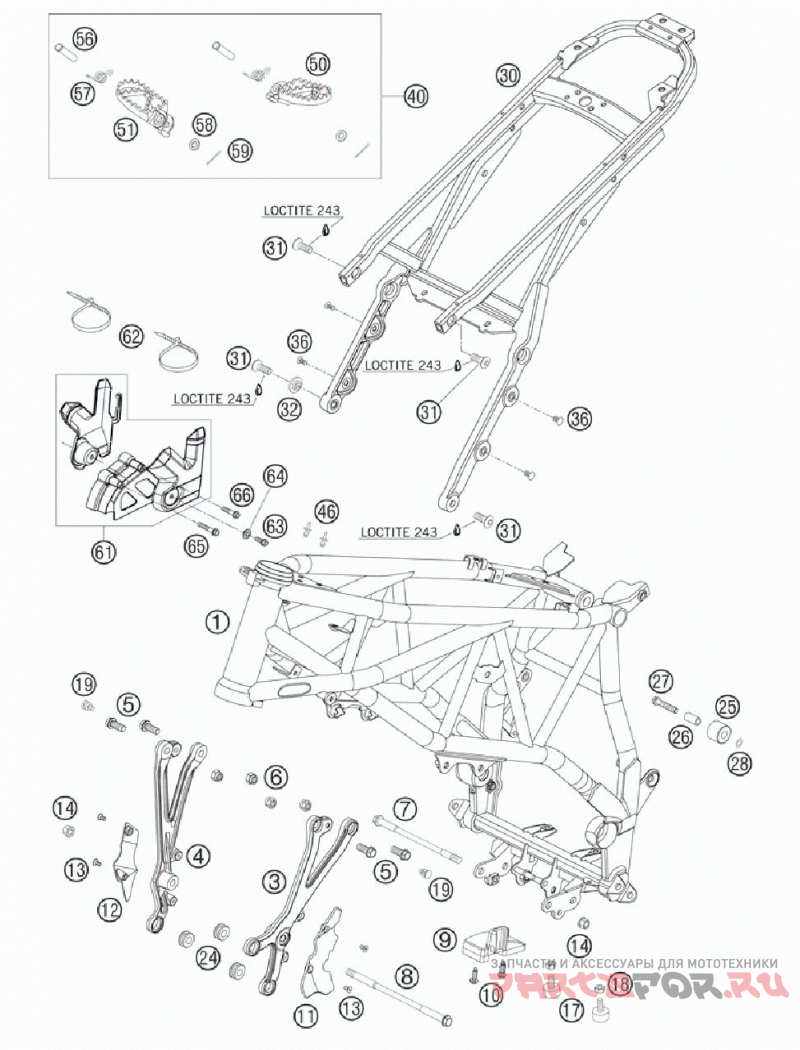

Frame, su b frame

KTM 950 SUPERENDURO R CHASSIS

KTM
#oem кодцена
1
6300300100004
Frame "fe06" 950 Se 06
3
62503005000
Engine Support Left 05
4
62503006000
Engine Support Right 05
5
0015100243
Hh Collar Screw M10x24 Ws=13
6
54310086100
Self Locking Nut M10 Cu Ws=14
7
60003013000
Engine Brac. Screw M10x172 03
8
60003014000
Engine Brac. Screw M10x206 03
9
60004076100
Chain Sliding Block 05
10
0017060204
Ejot Pt Screw K60x20 Alu Ws=6
11
62503005050
Cover Engine Support Left 05
12
62503006050
Cover Engine Support Right 05
13
0991050102
Flat H.scew Din7991-m5x10 10.9
14
54630044000
Collar Nut M10 Ws=13
17
58303070100
Bump Rubber M8x25mm
18
0934080003
Hexagon Nut Din0934-m 8
19
54403135000
Plastic Cap Sfl10
24
60003098000
Rubber Sleeve 03
25
58403060000
Chain Roll 12x29x22, 5 '98
26
58403060065
Bush Chain Roll 8x12x23 '98
27
0015080403
Hh Collar Screw M 8x40 Ws=10
28
36003014000
Стопорная шайба 8 мм
30
62503002100
Sub Frame 06
31
60003004027
Fl.head Screw M10x1, 25 L=27 03
32
60003001051
Collar Bushing 10x15x25x4 03
40
5030314013390
Footpeg L.+r. Cpl. 03
46
60003088000
Plastic Cap For M6 03
50
59003040250
Foot Peg L/s Silver 02
51
59003041250
Foot Peg R/s Silver 02
56
54803044000
Bolt For Foot Ped 03
57
54603041000
Footrest Spring L/s & R/s
58
0125100003
Washer Din0125-a10, 5
59
0094032253
Pin Din0094-3, 2x25 Steel
61
63003094000
Frame Protection Set 06
62
44011076305
Cable Tie 300/4, 8mm Black
63
0015060163
Hh Collar Screw M 6x16 Ws=8
