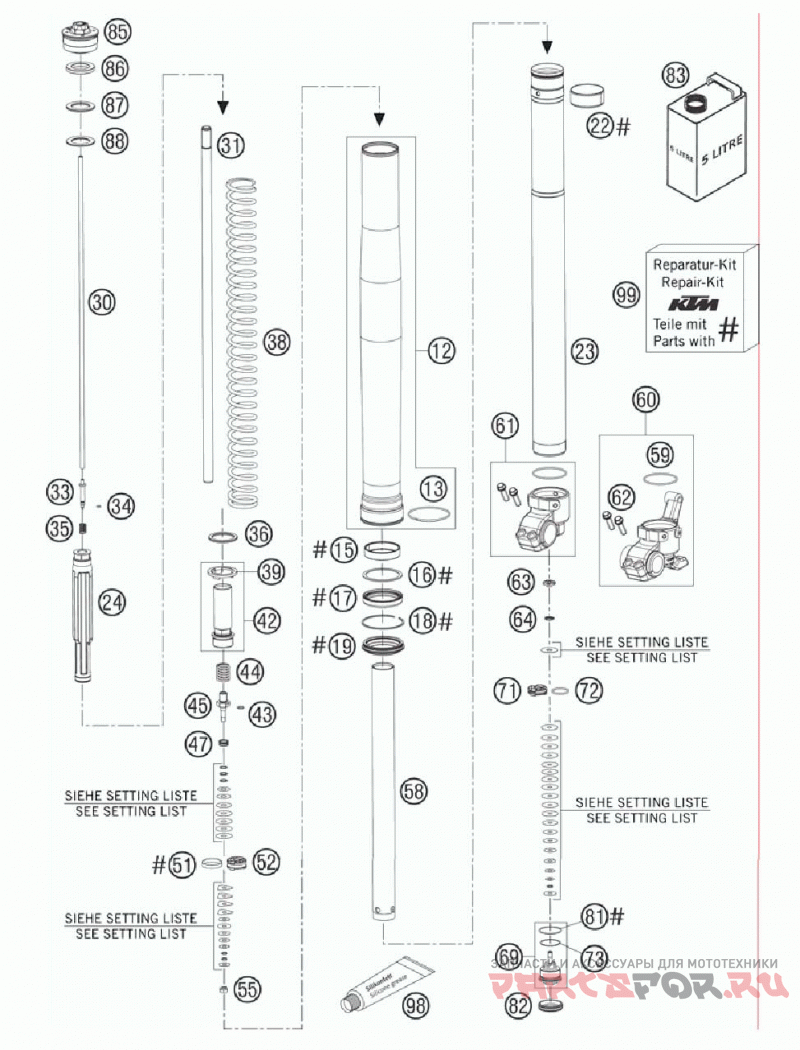

Fork leg s

KTM 950 SUPERENDURO R CHASSIS

KTM
#oem кодцена
12
48600553E
Outer Tube L=640mm D=54/60 06
13
48600016
Guiding Ring D=58mm
15
48600429
Du-bush D48xd52x12ddl02
16
48600013
Support Ring 50 X 57, 6 X 1, 5
17
48600399
Oil Seal Ring 48x57, 8x9, 5
18
48600070
Lock Washer Sb58
19
48600400
Dust Cap D=48 58, 4x11, 8
22
48600428
Du-bush D47xd49x20ddl02
23
48600417
Inner Tube D=48 L=595 2005
24
48600241S1
Hydr.stop L=200mm D=31, 9 Cpl.
30
48600143
Adjustment Tube L=467mm 06
31
48600538
Piston Rod D=14 M11x1 L=501
33
48600189
Needle Rebound 2003
34
48600046
O-ring Nbr 3x1, 5
35
48600033
Spring Rebound Needle C=4n/mm
36
48600037
Spacer 42x26, 5x5
38
91410045S
Spring 5, 9 N/mm Set D=5, 5mm
39
48600021
Interm. Ring 26, 2 X 43 X 3
42
48600196S
Screw Sleeve M29, 3x1 L=90 Cpl.
43
48600239
O-ring Nbr 8x1, 25
44
48600403
Rebound Spring D=15mm L=34, 5mm
45
48600203
Tab Rebound D=3 03
47
35480377
Spring Check Valve D=0, 5
51
48600060
Piston Ring 5x1x84
52
48600042
Piston Rebound D=27, 7
55
40540486
Nut M6x0, 5 Rebound
58
48600537
Tube 28x29, 3x1 L=435 Alu D=8, 5
59
48600048
O-ring Nbr 46 X 2
60
48600534S
Axle Clamp L/s Kpl. D=48 06
61
48600238S
Axle Clamp R/s Cpl. Usd48 04
62
0025080256
Винт M8x25 Tx40
63
48600163
Check Valve Nut M6x0, 5 D=2
64
48600202
Spring Check Valve D=0, 7
69
48600586S
Tap Compression Cpl. 07
71
48600047
Piston Compression D=27, 9
72
46811499
O-ring Nbr 21x2
