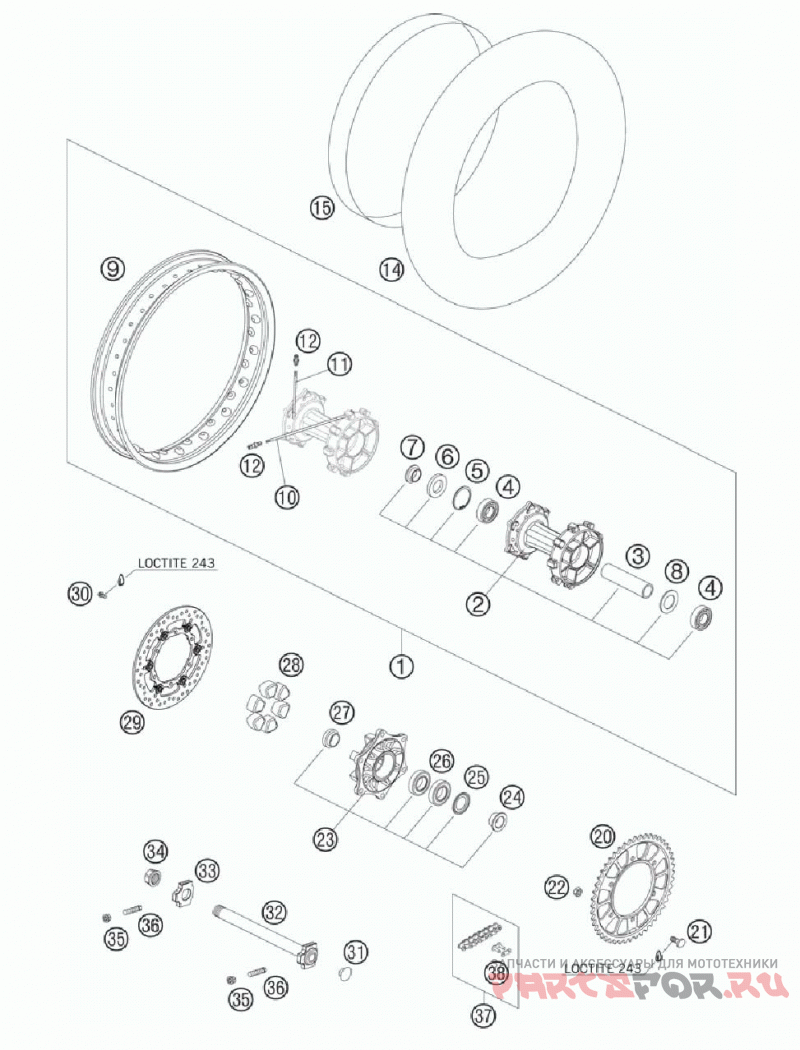

Заднее колесо

KTM 950 SUPERENDURO R CHASSIS

KTM
#oem кодцена
1
6301000104430
Rear Wheel Cpl. 2, 50x18" 06
2
60110010044
Rear Hub Cpl. 06
3
60010011000
Bear. Spacertube L=124, 8mm 03
4
0625062052
Gr.ball Bear. 6205-2rshc3hmtf7
5
0472052200
Circlip Din0472-52x2
6
0760305271
Shaft Seal Ring 30x52x7
7
60110013000
Spacer Bush. Rear Wheel R/s 06
8
60010015000
Spacer Ring 03
9
6301007000030
Rear Rim 2, 50x18" Dirt Star 06
10
63010171000
Spoke M5x219 06
11
63010071000
Spoke M5x196 06
12
58309072100
Spoke Nipple M5-ta 8x21mm
14
50310075100
Hose 110/100c-18
15
63010073000
Rim Tape 18" 32/2 Mm 06
20
60010051042
Rear Sprocket 42-t 03
20
60010051045
Rear Sprocket 45-t 03
21
60010052000
Sprocket Screw M10x1, 25 03
22
0980101253
Hexag.nut Din 980v M10x1, 25 Sl
23
60110050044
Sprocket Support Cpl. 06
24
60110012000
Spacer Bush. Sprocket Supp. 06
25
60110016000
Nilos Ring 6006av
26
0625060060
Ball Bearing 6006 Ddu2cg23s6nm
27
60110014000
Spacer Bush. Spr. Supp. In. 06
28
54610459000
Rubber Damping Block '91
29
60110060000
Brake Disk Rear D=240mm 06
30
59009062013
Special Screw M6x13 Ws=8 10.9
31
60010081050
Plug Mne2673
32
60010081044
Wheel Spindle Rear Cpl. 03
33
60010084000
Chain Tensioner R/s Lc8 03
34
60010086000
Collar Nut Wh. Spindle Rear 03
35
58414030000
Hh Collar Nut M10x1, 25 Ws=13
36
50304040100
Screw M10x1, 25x50 Ws=10
37
60010165118
Chain 525 With Master Link 03
38
60010066000
Master Link For Chain 525 03
