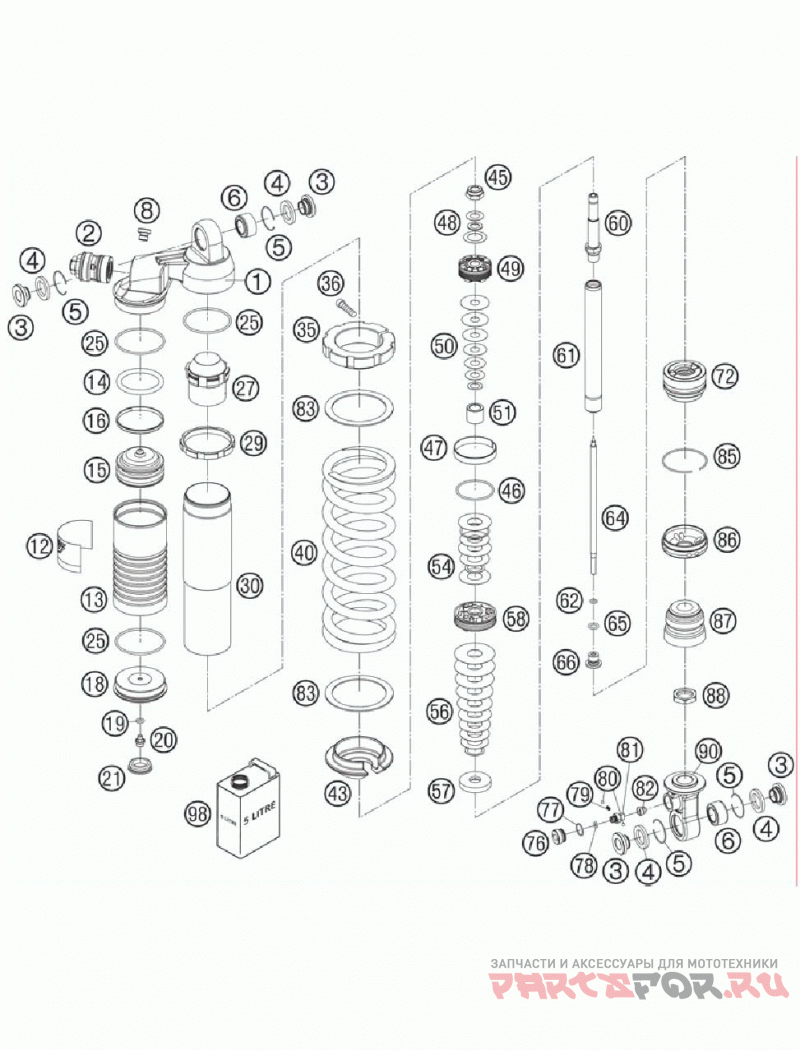

Амортизатор для мотоциклов KTM 85 SX 19-16 CHASSIS (2007)

Москва и регионы России

Амортизатор

KTM 85 SX 19-16 CHASSIS

Амортизатор

#

oem код

название

цена

1

Shock Absorber Top H40 135deg.

Shock Absorber Top H40 135deg.

2

Dcc-compr.damp.control Cpl. 04

Dcc-compr.damp.control Cpl. 04

3

Adaptor Bush Kgw 12x24

Adaptor Bush Kgw 12x24

4

Oil Seal Kgw D=25

Oil Seal Kgw D=25

5

Washer Kgw D=25

Washer Kgw D=25

6

Bushing Kgw 1525 Hd

Bushing Kgw 1525 Hd

8

Bleed Plug R 1/8

Bleed Plug R 1/8

12

Sticker Wp 35x55

Sticker Wp 35x55

13

Res. Screw L=113, 5 D=52 Black

Res. Screw L=113, 5 D=52 Black

14

O-ring Viton 41x5

O-ring Viton 41x5

15

Separation Piston D=52, H=32

Separation Piston D=52, H=32

16

Piston Ring 3, 9x1, 5x156

Piston Ring 3, 9x1, 5x156

18

Reservoir Cap D=58

Reservoir Cap D=58

19

O-ring Nbr 5, 28x1, 78

O-ring Nbr 5, 28x1, 78

20

Screw Plug M5x6

Screw Plug M5x6

21

Rubber Cap "do Not Open"

Rubber Cap "do Not Open"

25

O-ring Nbr 48x2

O-ring Nbr 48x2

27

Sleeve D=48

Sleeve D=48

29

Lock Washer M52x1, 5

Lock Washer M52x1, 5

30

Tube M52x1, 5

Tube M52x1, 5

35

Spring Retainer M52x1, 5

Spring Retainer M52x1, 5

36

Ah Screw Din0912-m 5x25

Ah Screw Din0912-m 5x25

40

Spring (59) 215 45 N/mm D=10

Spring (59) 215 45 N/mm D=10

40

Spring 215 30 N/mm D=9, 00 Oran

Spring 215 30 N/mm D=9, 00 Oran

40

Spring 215 35 N/mm D=9, 25 Oran

Spring 215 35 N/mm D=9, 25 Oran

40

Spring 215 40 N/mm D=9, 50 Org

Spring 215 40 N/mm D=9, 50 Org

43

Spring Washer H=15 D=28

Spring Washer H=15 D=28

45

Piston Rod Nut M10x1

Piston Rod Nut M10x1

46

O-ring Viton 37, 82x1, 78

O-ring Viton 37, 82x1, 78

47

Piston Ring 8x46

Piston Ring 8x46

48

Shim 10x19x0, 30

Shim 10x19x0, 30

48

Shim 15x25x0, 25

Shim 15x25x0, 25

48

Ring 10x16x1

Ring 10x16x1

49

Piston + Piston Spring

Piston + Piston Spring

50

Shim 10x16x0, 30

Shim 10x16x0, 30

50

Shim 10x21x0, 20

Shim 10x21x0, 20

50

Shim 10x23x0, 20

Shim 10x23x0, 20

50

Shim 10x25x0, 20

Shim 10x25x0, 20

50

Shim 10x27x0, 20

Shim 10x27x0, 20

50

Shim 10x29x0, 20

Shim 10x29x0, 20

50

Shim 10x31x0, 20

Shim 10x31x0, 20

51

Separation Bush 17x12x18

Separation Bush 17x12x18

54

Shim 12x28x0, 20

Shim 12x28x0, 20

54

Shim 12x30x0, 20

Shim 12x30x0, 20

54

Shim 12x32x0, 20

Shim 12x32x0, 20

54

Shim 12x34x0, 20

Shim 12x34x0, 20

54

Shim 12x36x0, 20

Shim 12x36x0, 20

54

Shim 12x26x0, 15

Shim 12x26x0, 15

54

Shim 12x28x0, 15

Shim 12x28x0, 15

54

Backplate 12x17x0, 30

Backplate 12x17x0, 30

56

Shim 12x30x0, 15

Shim 12x30x0, 15

56

Shim 12x32x0, 15

Shim 12x32x0, 15

56

Shim 12x34x0, 15

Shim 12x34x0, 15

56

Shim 12x36x0, 15

Shim 12x36x0, 15

56

Shim 12x38x0, 15

Shim 12x38x0, 15

56

Shim 12x40x0, 15

Shim 12x40x0, 15

57

Rebound Disc H=0

Rebound Disc H=0

57

Rebound Disc H=4

Rebound Disc H=4

58

Piston 5x4, 5x/6x6

Piston 5x4, 5x/6x6

60

Tap Piston Rod D=13, 5

Tap Piston Rod D=13, 5

61

Spindel D=18 Lc=159 Cpl.

Spindel D=18 Lc=159 Cpl.

62

O-ring Viton 5x1, 5

O-ring Viton 5x1, 5

64

Needle Rebound L=169

Needle Rebound L=169

65

O-ring Nbr 7, 5x2

O-ring Nbr 7, 5x2

66

Needle Guide

Needle Guide

72

Adaptor Cpl. D=46 H=28 D=38

Adaptor Cpl. D=46 H=28 D=38

76

Reservoir Cap M16x1

Reservoir Cap M16x1

77

O-ring Nbr 12x1

O-ring Nbr 12x1

78

O-ring Nbr 4x1, 5

O-ring Nbr 4x1, 5

79

Spring D=2, 9 L=7, 9

Spring D=2, 9 L=7, 9

80

Steel Ball D=3mm

Steel Ball D=3mm

81

Adjusting Screw L=15, 5

Adjusting Screw L=15, 5

82

Adjusting Adaptor Rebound

Adjusting Adaptor Rebound

83

Interm.ring D=58

Interm.ring D=58

85

Circlip 49x1, 5

Circlip 49x1, 5

86

Cap D=46 H=9, 5

Cap D=46 H=9, 5

87

Bump Rubber Wp60 D=18-26

Bump Rubber Wp60 D=18-26

88

Contra Nut M18x1 H=5

Contra Nut M18x1 H=5

90

Shock Absorber Bot. Kgw L=54, 5

Shock Absorber Bot. Kgw L=54, 5

98

Shock Absorber Fluid 5 Lt '03

Shock Absorber Fluid 5 Lt '03
