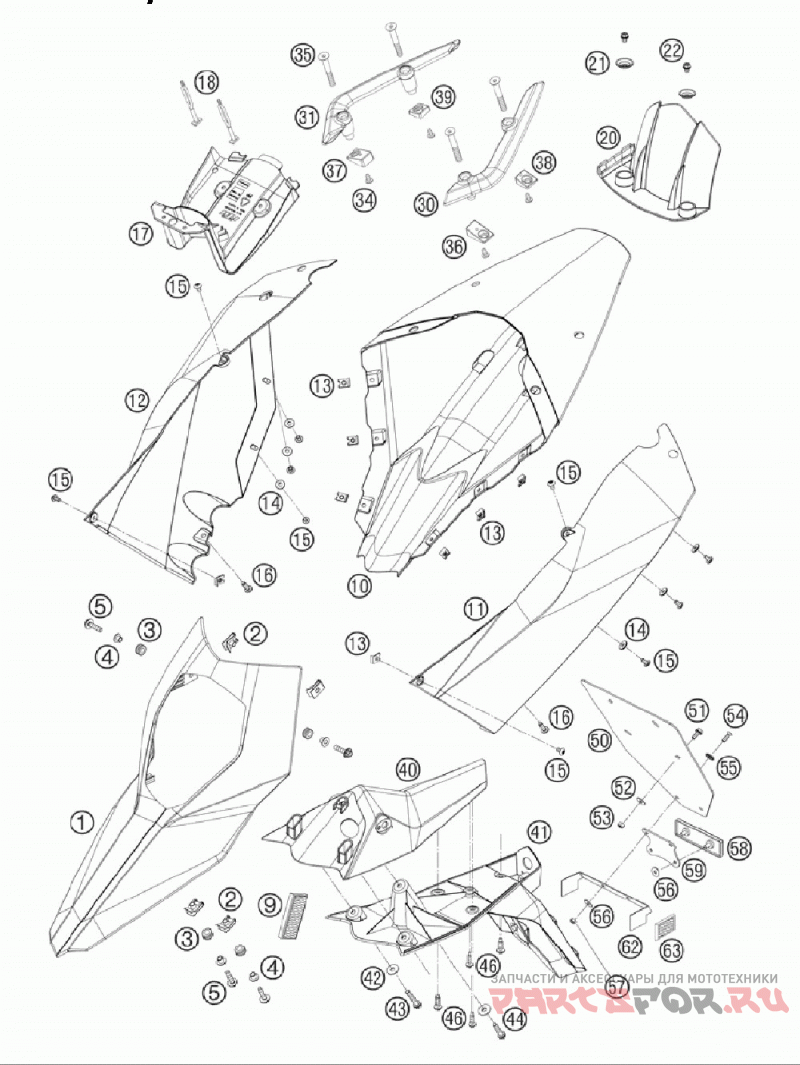

Обтекатель , крылья

KTM 690 SUPERMOTO ORANGE USA CHASSIS

KTM
#oem кодцена
1
7500800100004
Head Light Mask Orange 07
2
54603048100
Range Change Metal Nut M6
3
31008060000
Rubber Sleeve D=8mm Open
4
75014010050
Collar Bushing 6, 1x8, 1x14x8 07
5
0014060203
Hh Collar Screw M 6x20 Ws=8
9
60012080000
Side Reflector Yellow 03
10
7500801300033
Rear Fender Black Matt 07
11
7500804100004
Side Cover L/s Orange 07
12
7500804200004
Side Cover R/s Orange 07
13
54603048200
Range Change Metal Nut M5
14
75008023000
Washer Rear-ut D=14mm
15
58605083014
Screw M5x14 Torx 25 07
16
0017060203
Ejot Pt Screw K60x20 Ws=6
17
75003075000
Storage Compartment
18
50303018000
Rubber L=145mm
20
75004050000
Mud Flap 07
21
72210079000
Bucket
22
0015060083
Hh Collar Screw M 6x8 Ws=8
30
75012008000
Hand Grip L/s 07
31
75012009000
Hand Grip R/s 07
34
0016050121
Screw For Plastic 50x12
35
0991080603
Flat Head Screw Iso10642 M8x60
36
75003065000
Spacer Sub Frame Front L/s
37
75003066000
Spacer Sub Frame Front R/s
38
75003067000
Spacer Sub Frame Rear L/s
39
75003068000
Spacer Sub Frame Rear R/s
40
75008015010
Number Plate Carrier Top 07
41
75008015000
Number Plate Carrier 07
42
0021060003
Washer Din9021-a 6, 4
43
0015060353
Hh Collar Screw M 6x35 Ws=8
44
0015060203
Hh Collar Screw M 6x20 Ws=8
50
60012081200
Licence Fitting 06
51
0014060153
Hh Collar Screw M 6x15 Ws=8
53
0985060003
Self Lock. Nut Din0985-m 6
54
0966050163
Винт с полупотайной головкой Din0966-м 5х16
55
40006006000
Шайба 6мм
56
0125050003
Шайба Din0125-в 5, 3
57
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
58
58412080000
Reflector Red Lc4 '98
59
58412080050
Bracket For Reflector
62
62512081000
Кронштейн Бокового Отражателя 06
63
16512180100
Боковой Отражатель Красный Задний
