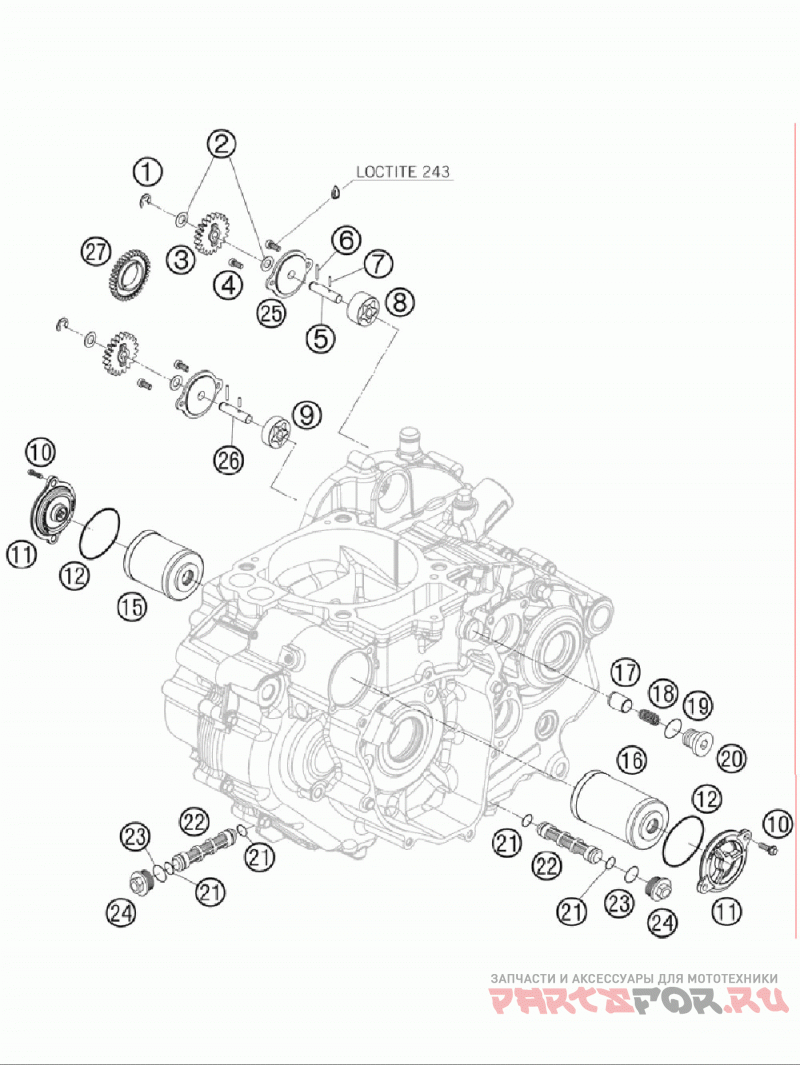

Масляная система

KTM 690 LC4 USA ENGINE

KTM
#oem кодцена
1
0799060000
Tab Washer Din6799-rs 6, 0
2
58038007755
Stop Disk 8, 1 X 15 X 0, 5
3
75038001020
Oil Pump Gear 20-t
4
0984050103S
Cylind. Scr. Din6912 M5x10 8.8
5
75038002000
Oil Pump Shaft 07
6
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
7
0402251180
Needle Roller Din5402 2, 5x11, 8
8
77038011000
Oilpump Rotor 15mm G-164
9
59038011010
Oilpump Rotor Cpl. 10mm G-73r
10
0015050203
Hh Collar Screw M 5x20 Ws=8
11
75038041200
Oilfilter Cap
12
0770400025
O-ring 40, 00x2, 50 Nbr 70
15
59038046144
Oil Filter Short With Gasket
16
77038005044
Oil Filter With Gasket 06
17
58038028000
Valve Piston D=10mm
18
58538023000
Oil Pres.spring 5 Bar Red 2001
19
58038022000
Кольцо 12x18x1, 5
20
0908120153
Plug Din0908-m12x1, 5
21
07701250151
O-ring 12, 5x1, 5 Viton V75
22
59038016000
Oil Screen 15x83mm
23
0770020170
O-ring 17, 17x1, 78 Glo
24
59038017000
Plug M20x1, 5 Ws=13
25
75038003000
Oil Pump Cover 07
26
75038004000
Oil Pump Shaft 07
27
75032050001
Oil Pump Drive Wheel 07
