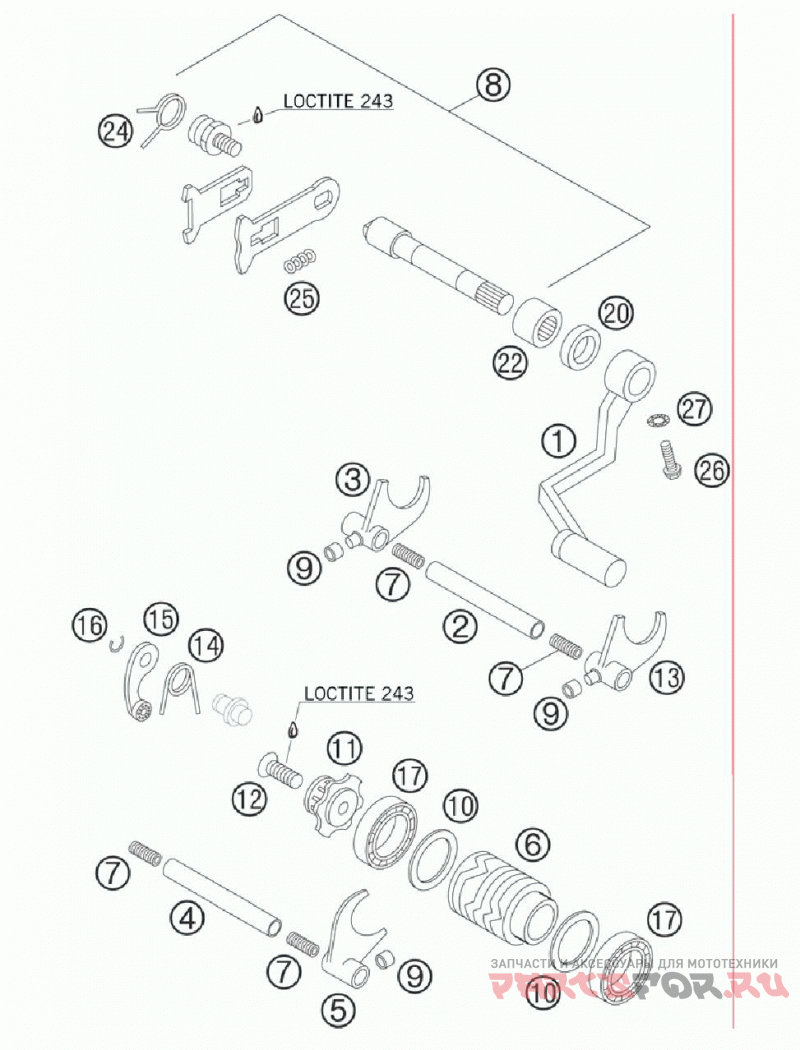

Механизм переключения

KTM 65 SX ENGINE

KTM
#oem кодцена
1
46034031100
Shift Lever Col. 65 Sx 2001
2
46034020100
Shift Rail 2001
3
46034002100
Shift Fork Countershaft R/s
4
46034019100
Shift Rail 10x72mm 2001
5
46034001100
Shift Fork Main Shaft 2001
6
46034012300
Shift Roller 65 Sx 2001
7
46034019052
Spring Shift Rail 2001
8
46034005044
Shift Shaft Cpl.
9
50334018100
Shifting Roller 6x8x5, 2
10
46034091100
Spacer Washer-set 2001
11
46034015100
Shift Drum Locating 60/65 2000
12
0991060303
Flat Head Screw Din7991-m 6x30
13
46034002200
Shift Fork Count. 2.3.gear
14
46034023100
Locking Lever Spring 2001
15
46034024100
Locking Lever Cpl. 65 Sx 2002
16
0471100010
Circlip Din0471-10x1
17
0625618050
Ball Bearing 61805 C3
20
0760122050
Shaft Seal Ring 12x20x5 B
22
46034027000
Needle Bearing 12x18x12 2002
24
46034014000
Return Spring
25
46034009000
Pressure Spring Slider Plate
26
0015060203
Hh Collar Screw M 6x20 Ws=8
27
0797060003
Tooth Lock Wash. Din6797-a 6, 4
