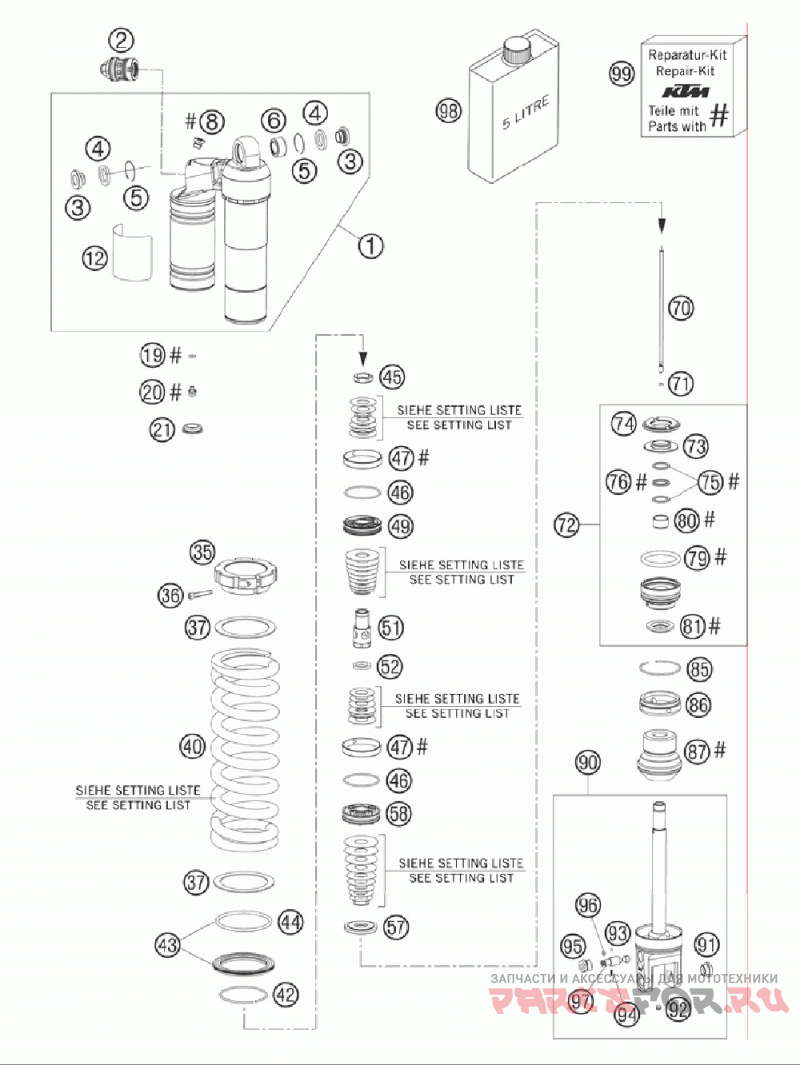

Monoshock disassambled

KTM 505 SX-F PRESERIES CHASSIS

KTM
#oem кодцена
1
50180518S1
Monoshock Top Part Cpl. Sxf 07
2
50180213S10
Dcc-compr.damp.control Cpl. 07
3
46180007
Adaptor Bush Kgw 12x24
4
46180003
Oil Seal Kgw D=25
5
50180168
Washer Kgw D=25
6
50180005
Bushing Kgw 1525 Hd
8
50180095
Bleed Plug R 1/8
12
52000041
Wp Caution (pds Ktm) 58x83
19
46810893
O-ring Nbr 5, 28x1, 78
20
36120151
Screw Plug M5x6
21
46811208
Rubber Cap "do Not Open"
35
50180433
Spring Retainer M56x1
36
50180327
Ah Screw M5x30 Din912
37
50180114
Interm.ring Screw Spring Ret.
42
50180273
Circlip 58, 2x2
43
50180463S
Spring Ret. D=80 W. O-ring 05
44
50180352
O-ring Viton 66, 27x3, 53
45
50180141
Piston Rod Nut M16x1
46
50180099
O-ring Viton 44, 17x1, 78
47
50180135
Piston Ring 50-8
49
50180446
Piston 6+6x3, 5/4, 5
51
50180510
Holder D=16 M16x1 L=44
52
50180578
Shim D23xd16x2
57
50180516
Rebound Disc D=34, H=5
58
50180197
Piston 6+6x7/4, 5
70
50180513
Needle L=171
71
46811265
O-ring Viton 2, 2x1, 6
72
50180435S1
Adaptor D50 H29 Cpl.
73
50180113
Steel Disc 18x, 5x43, 7x6
74
50180107
Rebound Rubber
75
50180102
Backupring 22, 55x1, 5
76
50180101
Quad Ring 18x2, 62
79
50180103
O-ring 41x5
80
46180119
Du-bush 18x20x12
81
50180082
Dust Seal 1835
85
50180126
Circlip 53x1, 75
86
50180511
Cover D=50 07
87
50180480
Bump Rubber D58 D17 H59 Sxs 05
90
50180512S1
Monoshock Lower Part Cpl. 07
91
50180105
Threaded Bush M12 Pds
92
50180297
Rubber Plug D=8
93
40540603
Steel Ball D=3mm
94
48600028
Spring D=2, 9 L=7, 9
95
50180281
Reservoir Cap M14x1
96
50180222
O-ring Nbr 4x1, 5
97
50180434S
Adjusting Screw Rebound Travel
98
50180342S1
Shock Absorber Fluid 5 Lt '03
