Бугель

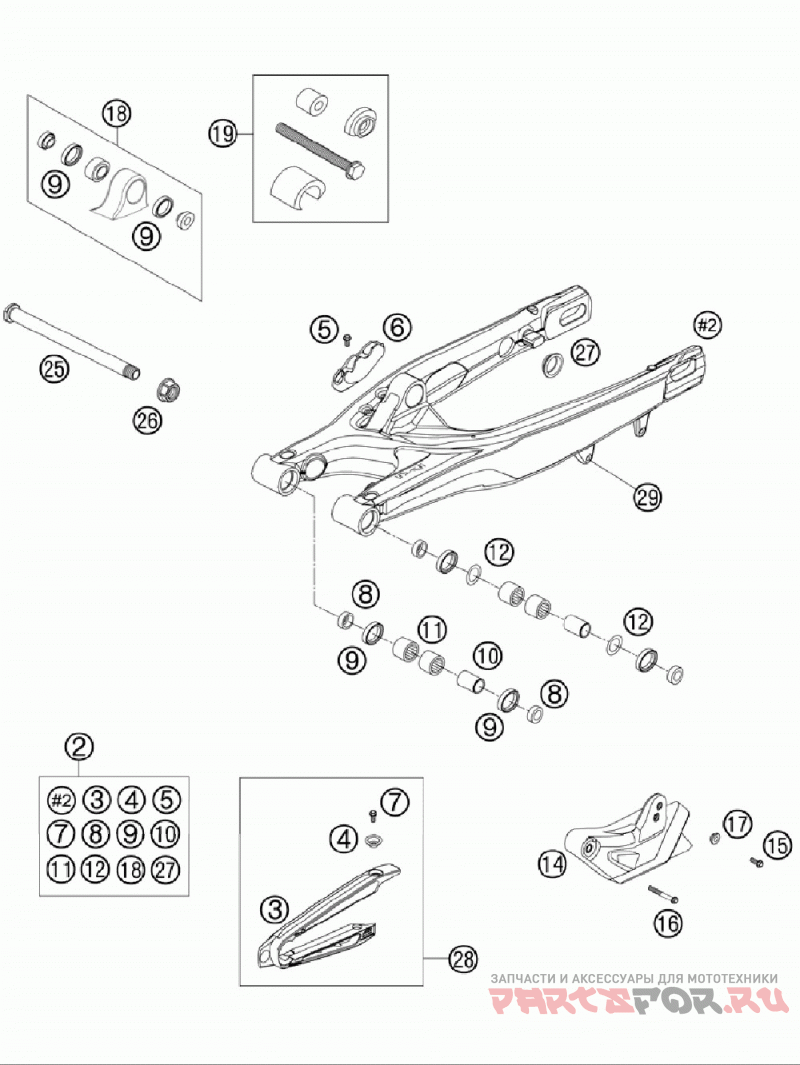

KTM 505 SX-F PRESERIES CHASSIS

KTM
#oem кодцена
2
77304030044
Swingarm Cpl. 07
3
77304066000
Chain Sliding Protection
4
77304066050
Bushing F. Chain Sliding Pr.07
5
0009050103
Special Screw M 5, 0x10
6
77313047000
Brake Hose Guide Lower 07
7
0015060103
Hh Collar Screw M 6x10 Ws=8
8
54804034000
Bucket F. Shaft Seal Ring 03
9
0760253270
Shaft Seal Ring 25x32x7
10
54804032000
Bushing Sleeve F. Swing Arm 03
11
58033097000
Needle Bearing Hk 2216
12
54603036000
Stop Disk 22, 2x31, 7x1
14
77304070100
Chain Guide Rear Cpl. 07
15
0015060203
Hh Collar Screw M 6x20 Ws=8
16
0015060453
Hh Collar Screw M 6x45 Ws=8
17
77304070130
Bush. F. Chain Fail. Prot. 07
18
50304090044
Pivot Bearing+bushes Pds '99
19
50329000044
Tool Bearing Mounting Pds
25
77304037000
Swingarm Bolt M16x1, 5 07
26
54804038000
Self Lock.nut M16x1, 5 Ws=19 03
27
58404041100
Closing Cover Round 03
28
77304066010
Chain Guard Cpl. 06
29
54603055051
Press In Nut M6 Steel Zinc
