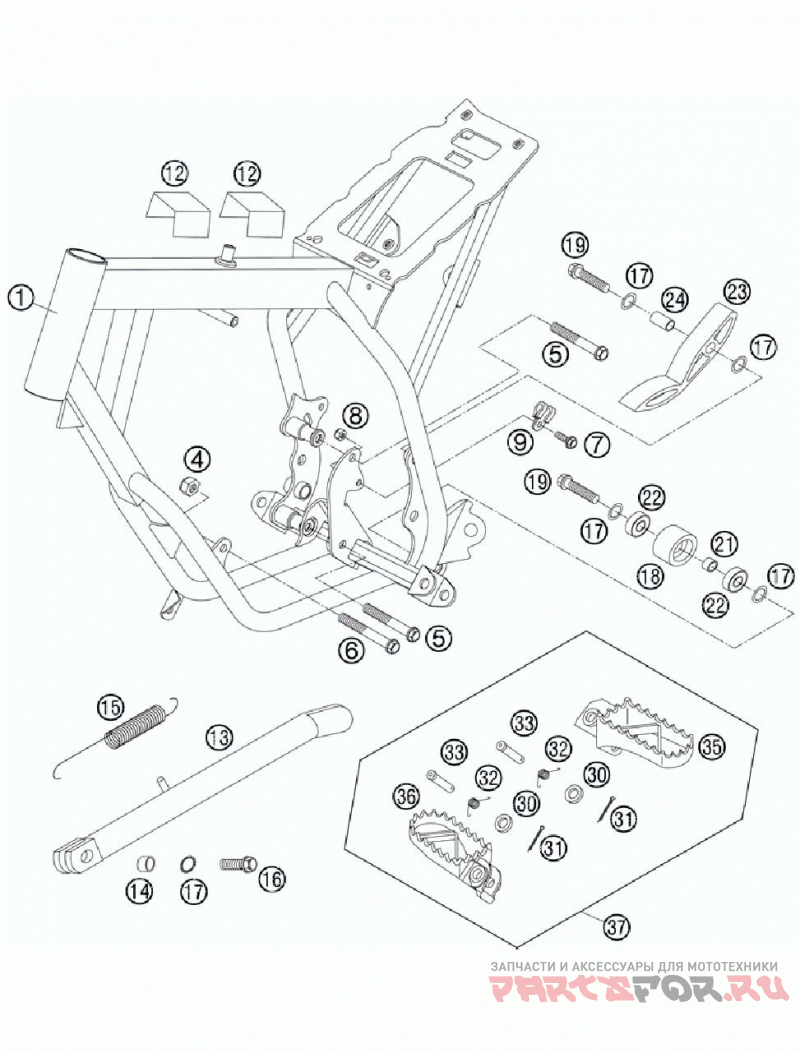

Рама , задняя подножка

KTM 50 SENIOR ADVENTURE CHASSIS

KTM
#oem кодцена
1
4510300130030
Frame Senior Adv. "mb2r" 2007
4
54310086200
Self Locking Nut M8 10.9
5
0015080603
Hh Collar Screw M 8x60 Ws=10
6
0015080653
Hh Collar Screw M 8x65 Ws=10
7
0015050123
Hh Collar Screw M 5x12 Ws=8
8
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
9
45001070000
Brake Cable Clamp Rsgu 9/12
12
58711054050
Metamoll For Battery Bracket
13
4510302300090
Side Stand L=319mm Silver 2001
14
45103023250
Bushing For Side Stand 02
15
51003021000
Sidestand Spring Long
16
0015080203
Hh Collar Screw M 8x20 Ws=10
17
36003014000
Стопорная шайба 8 мм
18
50203053000
Chain Roll D=30mm
19
0025080306
Hh Collar Screw M8x30 Tx40
21
74003021000
Bushing 8.2 X 12 X 6
22
0625006087
Grooved Ball Bear. 608 2rs C3
23
51103053000
Chain Sliding Piece Below '97
24
51103053051
Bushing 8, 2x10x20
30
0125100003
Washer Din0125-a10, 5
31
0094032253
Pin Din0094-3, 2x25 Steel
32
54603041000
Footrest Spring L/s & R/s
33
54803044000
Bolt For Foot Ped 03
35
5460304000090
Foot Rest L/s Silver
36
5460314000090
Foot Rest R/s Silver '98
37
4510304013390A
Footpeg L.+r. Cpl. Mini 03
