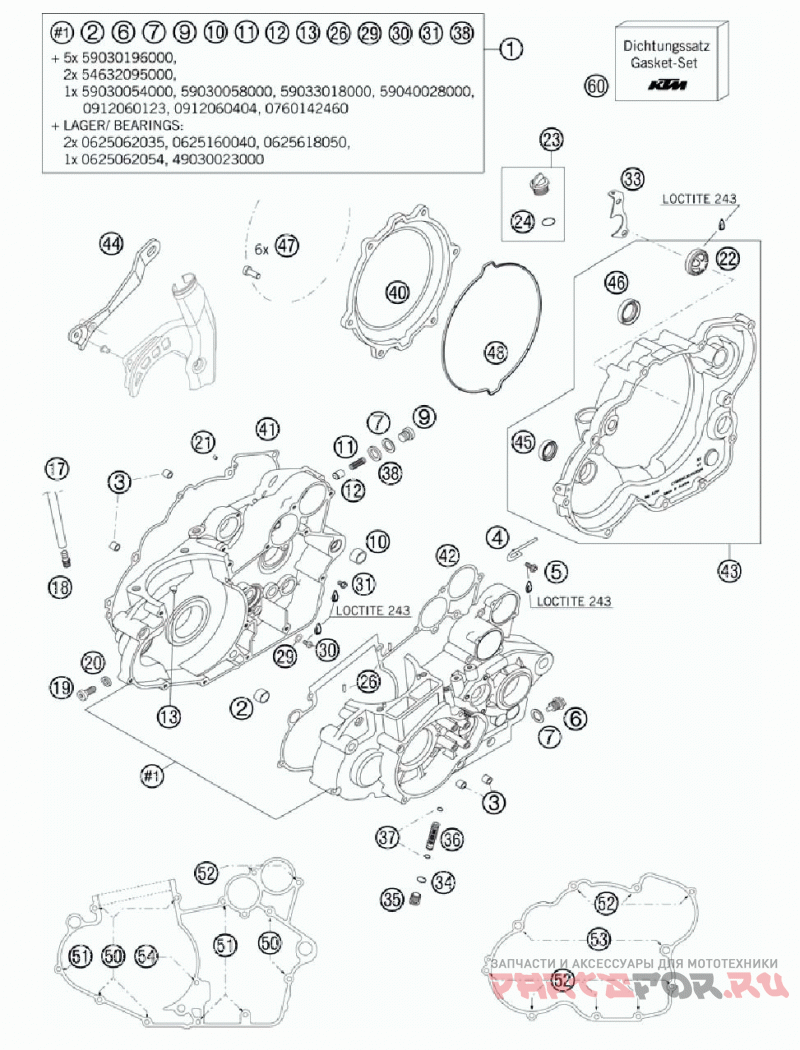

Картер двигателя

KTM 450 XC-W ENGINE

KTM
#oem кодцена
46
0760193070
Shaft Seal Ring 19x30x7 B
47
0984060163
Ah Screw Din6912-m 6x16
48
59030027000
Gasket F. Outer Clutch Cov. 06
50
0015060453
Hh Collar Screw M 6x45 Ws=8
51
0015060603
Hh Collar Screw M 6x60 Ws=8
52
0015060303
Hh Collar Screw M 6x30 Sw=8
53
0015060353
Hh Collar Screw M 6x35 Ws=8
54
0015060753
Hh Collar Screw M 6x75 Ws=8
60
59030099000
Gasket Set Cpl. Racing 2000
1
59030000444
Engine Case 2006
2
51030026100
Dowel 17 X 13 X 12
3
49030090000
Шпонка 9, 8 Х 7 Х 10
4
59030090000
Hanger For Vent Hose
5
0014060153
Hh Collar Screw M 6x15 Ws=8
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
9
0908120153
Plug Din0908-m12x1, 5
10
59030024000
Dowel 17 X 19 X 12
11
58038023300
Pressure Spring L=25mm D=1mm
12
58038028000
Valve Piston D=10mm
13
59030054000
Jet 60 Dellorto M6x0, 75
17
59031050100
Engine Breather Tube 00
18
59030022100
Штуцер,Фланец M12x1, 5
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
21
0402025980
Needle Roller Din5402 2, 5x9, 8
22
59030019000
Стекло - уровень масла
23
58030120000
Oil Filler Cap M24x3 With O-r
24
0770191015
Кольцо 19,00x3,00
26
0402040980
Needle Rol.din5402 Nrb 4x9, 8
29
0125050003
Шайба Din0125-в 5, 3
30
0985050083
Flat Head Screw Din7985-m 5x 8
31
0015060083
Hh Collar Screw M 6x8 Ws=8
33
59030001090
Ret.bracket F.brake Lever Hub
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
0770090015
O-ring 9x1, 5 Nbr
38
0603121830
Seal Ring Din7603 12x18x3
40
59030026000
Clutch Cover Outside 06
41
59030025200
Clutch Cover Gasket
42
59030039200
Прокладка картера
43
59030101044
Clutch Cover Inside Cpl. 06
44
59030047100
Chain Damping Plate Rac. 2005
45
0760142460
Shaft Seal Ring 14x24x6 B
