Frame, sub frame для мотоциклов KTM 450 SX-F CHASSIS (2007)

Москва и регионы России

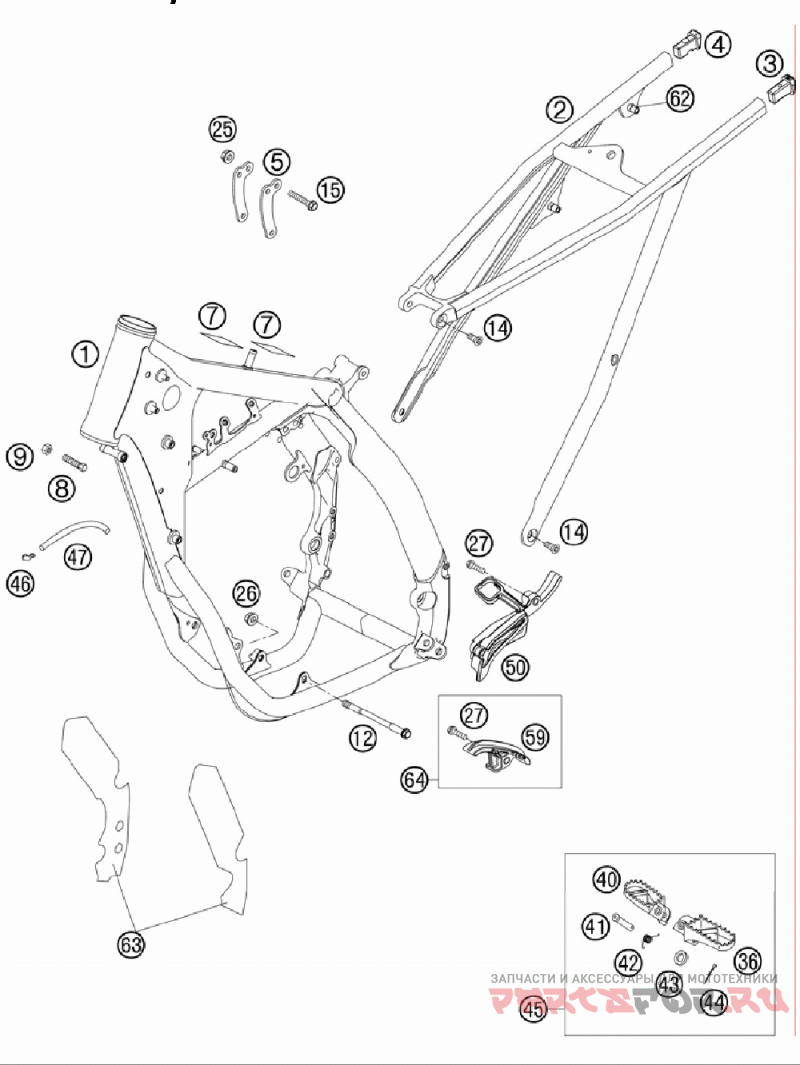

Frame, sub frame

KTM 450 SX-F CHASSIS

Frame, sub frame

#

oem код

название

цена

1

Frame 450 Sx-f "ja07" 07

Frame 450 Sx-f "ja07" 07

2

Sub Frame Sx "q7" 07

Sub Frame Sx "q7" 07

3

Sub Frame Application Left 08

Sub Frame Application Left 08

4

Sub Frame Application Right 08

Sub Frame Application Right 08

5

Engine Brace 450 Sx-f 07

Engine Brace 450 Sx-f 07

7

Adh. Foil Transp. 80x80 Mm 04

Adh. Foil Transp. 80x80 Mm 04

8

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

9

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

12

Enginebrac.screw M10x123 Ws=13

Enginebrac.screw M10x123 Ws=13

14

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

15

Collar Screw M8x42 Ws=13 10.9

Collar Screw M8x42 Ws=13 10.9

25

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

26

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

27

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

36

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

40

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

41

Bolt For Foot Ped 03

Bolt For Foot Ped 03

42

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

43

Washer Din0125-a10, 5

Washer Din0125-a10, 5

44

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

45

Footpeg L.+r. Cpl. 03

Footpeg L.+r. Cpl. 03

46

Angle Piece '97

Angle Piece '97

50

Chain Sprocket Cover

Chain Sprocket Cover

59

Chain Sliding Piece Below 07

Chain Sliding Piece Below 07

63

Frame Protection Stick. Set 07

Frame Protection Stick. Set 07

64

Chain Sliding P. Below Cpl. 07

Chain Sliding P. Below Cpl. 07
