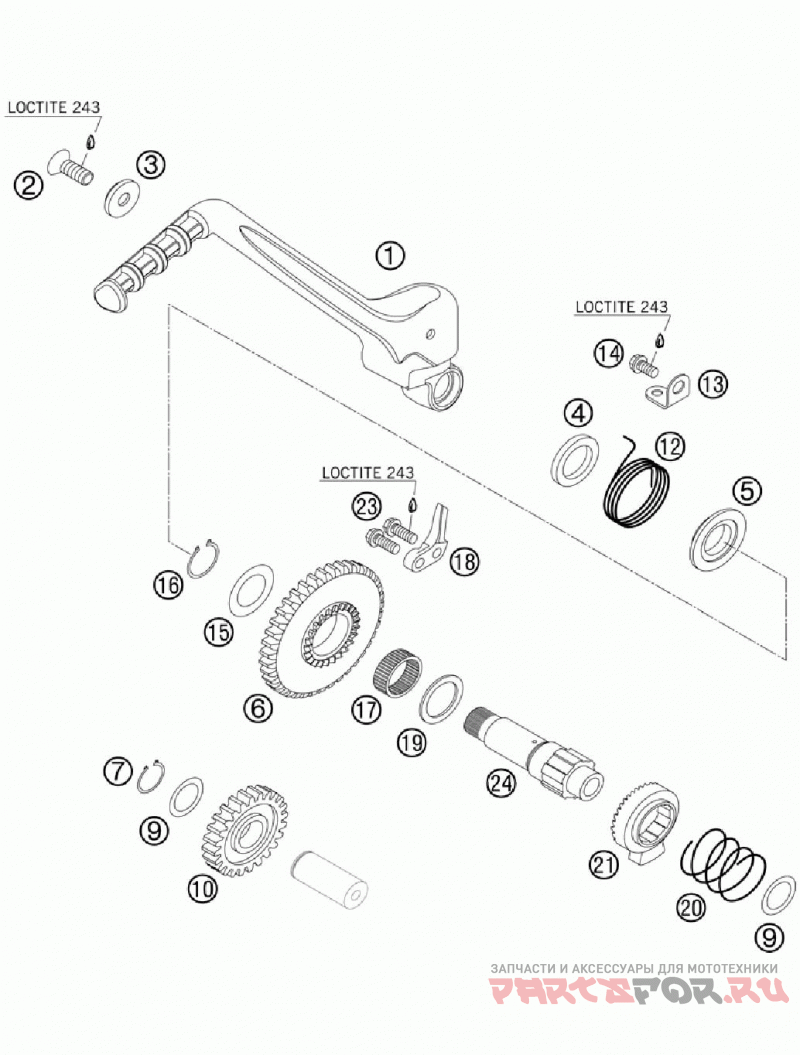

Кик стартер для мотоциклов KTM 400 XC-W -EXC ENGINE (2007)

Москва и регионы России

Кик стартер

KTM 400 XC-W -EXC ENGINE

Кик стартер

#

oem код

название

цена

1

Kick Starter Cpl.

Kick Starter Cpl.

2

Sprocket Screw-ah M8x20 Ws=6

Sprocket Screw-ah M8x20 Ws=6

3

Washer 8mm Galvanized

Washer 8mm Galvanized

4

Shaft Seal Ring 19x30x7 B

Shaft Seal Ring 19x30x7 B

5

Driving Hub

Driving Hub

6

Kickstarter Gear 39-t

Kickstarter Gear 39-t

7

Circlip Din0471-17x1

Circlip Din0471-17x1

9

Shim Washer Din0988-17x24x0, 5

Shim Washer Din0988-17x24x0, 5

10

Intermediate Gear 24-t

Intermediate Gear 24-t

12

Пружина

Пружина

13

Spring Hanger

Spring Hanger

14

Hh Collar Screw M 6x12 Ws=8

Hh Collar Screw M 6x12 Ws=8

15

Shim 20x32x1

Shim 20x32x1

16

Circlip Din0471-19x1, 2

Circlip Din0471-19x1, 2

17

Needle Bear.k 22x26x10 Divided

Needle Bear.k 22x26x10 Divided

18

Bump Part

Bump Part

19

Stop Disk 22, 2 X 30 X 1, 5

Stop Disk 22, 2 X 30 X 1, 5

20

Пружина 1, 2 Mm

Пружина 1, 2 Mm

21

Ratchet Gear Kickstarter

Ratchet Gear Kickstarter

23

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

24

Kickstarter Shaft

Kickstarter Shaft
