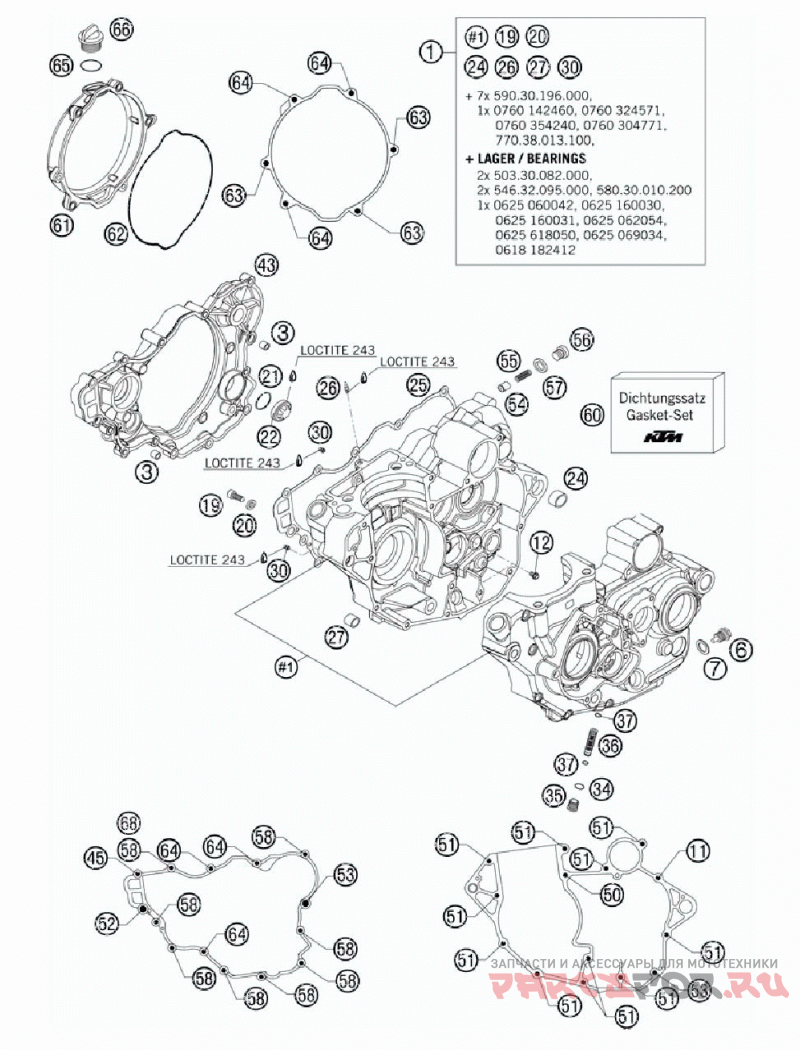

Картер двигателя

KTM 250 SX-F ENGINE

KTM
#oem кодцена
1
77030000144
Engine Case Cpl. 250 Sx-f 07
3
49030090000
Шпонка 9, 8 Х 7 Х 10
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
11
0015060403
Hh Collar Screw M 6x40 Ws=8
12
0015060083
Hh Collar Screw M 6x8 Ws=8
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
21
61030019050
Стопор
22
59030019000
Стекло - уровень масла
24
59030024000
Dowel 17 X 19 X 12
25
77030025100
Gasket For Clutch Cover 05
26
60030064070
Oil Jet 70 M6x0, 75 Ws8 03
27
54630027000
Dowel Bushing 13, 8x11x12
30
59030058000
Jet 100 Bing(44-031/180) M4
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
0770090015
O-ring 9x1, 5 Nbr
43
77030001044
Clutch Cover Cpl.
45
0015060353
Hh Collar Screw M 6x35 Ws=8
50
0015060653
Hh Collar Screw M 6x65 Ws=8
51
0015060503
Hh Collar Screw M 6x50 Ws=8
53
0015060303
Hh Collar Screw M 6x30 Sw=8
54
58038028000
Valve Piston D=10mm
55
58038023300
Pressure Spring L=25mm D=1mm
56
0908120153
Plug Din0908-m12x1, 5
58
0015060253
Hh Collar Screw M 6x25 Ws=8
60
77030099000
Gasket Set 05
61
77030026100
% Clutch Cover Outside 06
62
77030027000
Molded Ring 05
64
0015060553
Hh Collar Screw M 6x55 Ws=8
65
0770191015
Кольцо 19,00x3,00
66
58030020100
Пробка M24x3
68
0603061001
Cu-seal Ring Din7603-6x10x1
11
0025060406
Hh Collar Screw M6x40 Tx30
