Маятник для мотоциклов KTM 125 SX CHASSIS (2007)

Москва и регионы России

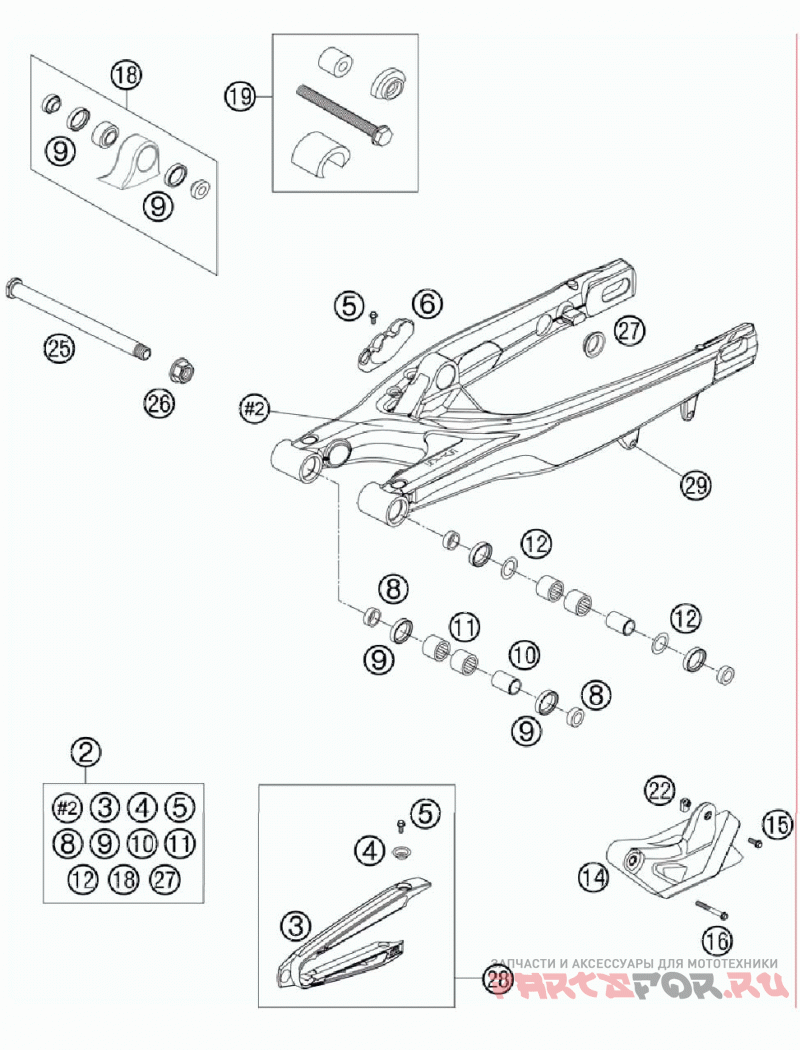

Маятник

KTM 125 SX CHASSIS

Маятник

#

oem код

название

цена

2

Swingarm Cpl. 07

Swingarm Cpl. 07

3

Chain Sliding Protection

Chain Sliding Protection

4

Bushing F. Chain Sliding Pr.07

Bushing F. Chain Sliding Pr.07

5

Special Screw M 5, 0x10

Special Screw M 5, 0x10

6

Brake Hose Guide Lower 07

Brake Hose Guide Lower 07

8

Bucket F. Shaft Seal Ring 03

Bucket F. Shaft Seal Ring 03

9

Shaft Seal Ring 25x32x7

Shaft Seal Ring 25x32x7

10

Bushing Sleeve F. Swing Arm 03

Bushing Sleeve F. Swing Arm 03

11

Needle Bearing Hk 2216

Needle Bearing Hk 2216

12

Stop Disk 22, 2x31, 7x1

Stop Disk 22, 2x31, 7x1

14

Chain Guide Cpl.

Chain Guide Cpl.

15

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

16

Hh Collar Screw M 6x45 Ws=8

Hh Collar Screw M 6x45 Ws=8

18

Pivot Bearing+bushes Pds '99

Pivot Bearing+bushes Pds '99

19

Tool Bearing Mounting Pds

Tool Bearing Mounting Pds

22

Insertion Nut F. Chain Guide

Insertion Nut F. Chain Guide

25

Swingarm Bolt M16x1, 5 07

Swingarm Bolt M16x1, 5 07

26

Self Lock.nut M16x1, 5 Ws=19 03

Self Lock.nut M16x1, 5 Ws=19 03

27

Closing Cover Round 03

Closing Cover Round 03

28

Chain Guard Cpl. 06

Chain Guard Cpl. 06

29

Press In Nut M6 Steel Zinc

Press In Nut M6 Steel Zinc

14

Chain Guide Cpl.

Chain Guide Cpl.
