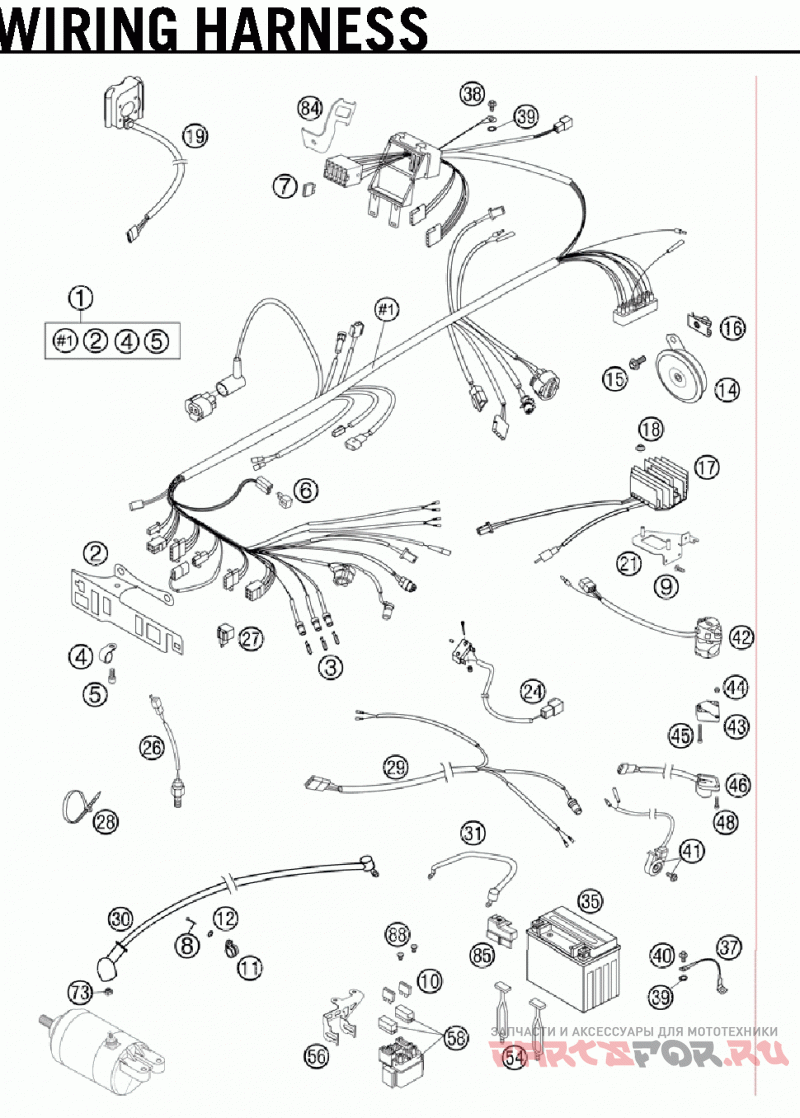

Wiring harness ref# 1 - 43

KTM 625 SMC CHASSIS USA 06

KTM
#oem кодцена
1
58611075100
Wiring Harness 625 Smc 05
2
59011083000
Support Bracket Black 2001
3
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
4
57013070100
Pvc-clamp 7, 9 Mm Heyco 3355
5
0912050083
Ah Screw Din 912 M 5x8
6
58411096100
Diode S3h-15 97
8
0981480133
Sheet Met.scr.din7981- 4, 8x13
9
0016050121
Screw For Plastic 50x12
11
45001070000
Brake Cable Clamp Rsgu 9/12
12
0797050003
Tooth Lock Wash. Din6797-j 5, 3
14
50311060100
Dc Horn L.e.b. 03
15
0014060153
Hh Collar Screw M 6x15 Ws=8
16
54603048100
Range Change Metal Nut M6
17
58411034100
Volt.regulator-rectifier 12v
18
56509064100
Self Locking Nut M6 10.9
19
58411074100
Start-stop Switch Ad Lc4 02
21*
58611055200
Bracket Regulator 06
24
58411050000
Brake Light Switch Front Sm 03
26
50311051100
Brake Light Switch Rear '98
27
44611207200
Flasher Unit 97
29
58611076000
Wiring Harness Rear 05
30
58611059000
Startercable L=810mm 05
31
58611059050
Battery Cable L=140mm 05
35
58411053100
Battery 12v 8, 6ah 03
37
58611097000
Ground Cable L=80mm 05
38
0015060103
Hh Collar Screw M 6x10 Ws=8
39
58411098100
Contact Washer M6 Vsv-k6
40
0015060123
Hh Collar Screw M 6x12 Ws=8
41
58411045000
Side Stand Switch Cpl. '97
42
50311070100
H.light Switch Cev Egs Aus.'98
43
13011070060
Adapter For Flasher Switch '98
