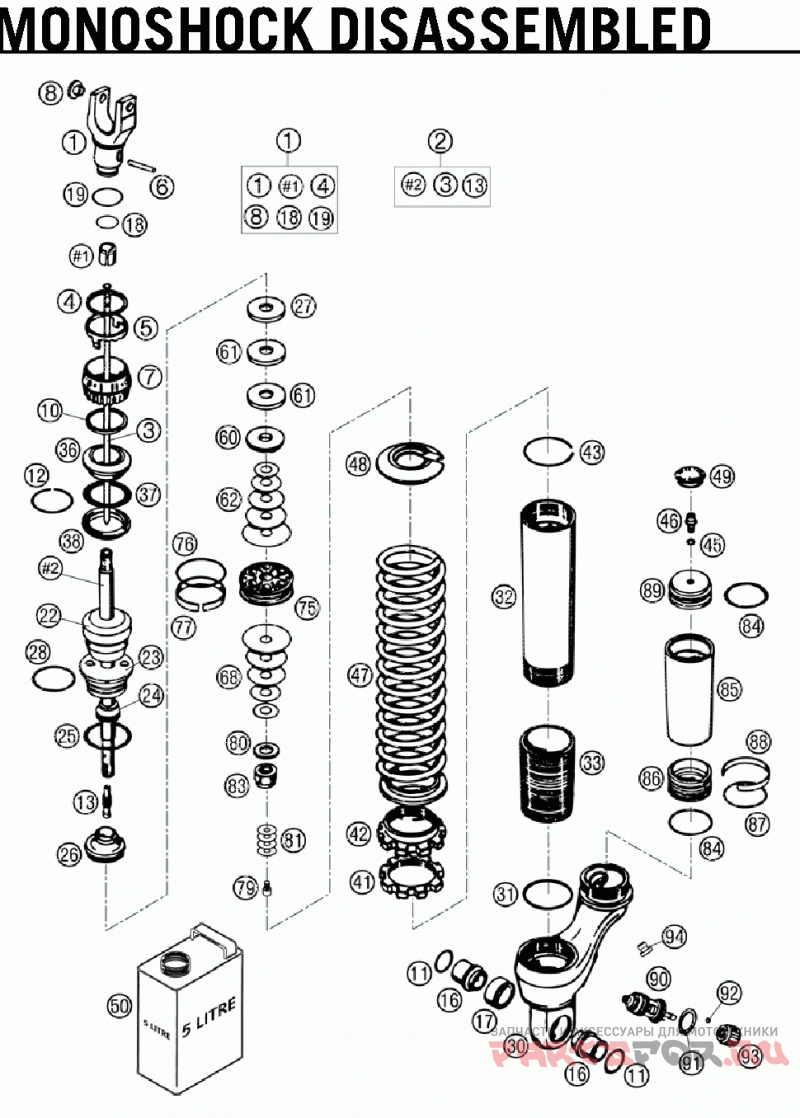

Monoshock disassembled ref# 1 - 47

KTM 625 SMC CHASSIS USA 06

KTM
#oem кодцена
1*
46811558S
Shock Abs. Bottom-fork L75b
2*
46811560S2
Piston Rod D=14 Ba M14x1
3
46811545S
Needle Cpl. D=4 Ba, L=183
4
46811222
O-ring 36x0, 5
5
46811263
Шайба
6
46811261
Pin 4x35
7
46811262
Adj. Knob D=41
8
46811205
Adaptor-bush M10x1,50, D=15
10
46811221
O-ring 35x3
11
46811050
Seal Kgw
12
46811268
Circlip 22x1, 2
13
46811259
Needle Seat 5x17, 25
16
46811078S
Adaptor Bush Cpl. Kgw 10x24
17
46811027
Bushing Kgw 1525
18
46811499
O-ring Nbr 21x2
19
46811500
O-ring Nbr 32x1, 5
22
46810365
Bump Rubber Wp55 White
23
46811045
Screw Cap M47,4, H=22,5
24
46811044
Dust Seal 1424
25
46810325
O-ring 35x5
26
46811540S1
Adapter Cpl. D=46, H=23 Ba
27
46811002
Spacer 35x14x2
28
46811042
O-ring 40, 00x2, 00 Wp
30
46811481
Shock Absorb. Top H-35/79 84
31
46810016
O-ring Nbr 48x2
32
46810094
Tube L=185
33
46810346
Threaded Bush L=60 Black
36
46811561
Bushing Ring D=55x19
37
46811512
O-ring Nbr 32x8
38
46811511
Support Ring D=55x7, 5
41
46810109
Counternut
42
46810108
Adjusting Nut
43
46810010
Circlip 49x1, 5
45
46810893
O-ring Nbr 5, 28x1, 78
46
36120151
Screw Plug M5x6
47
91010110
Spring 70-260 (59), D=12
