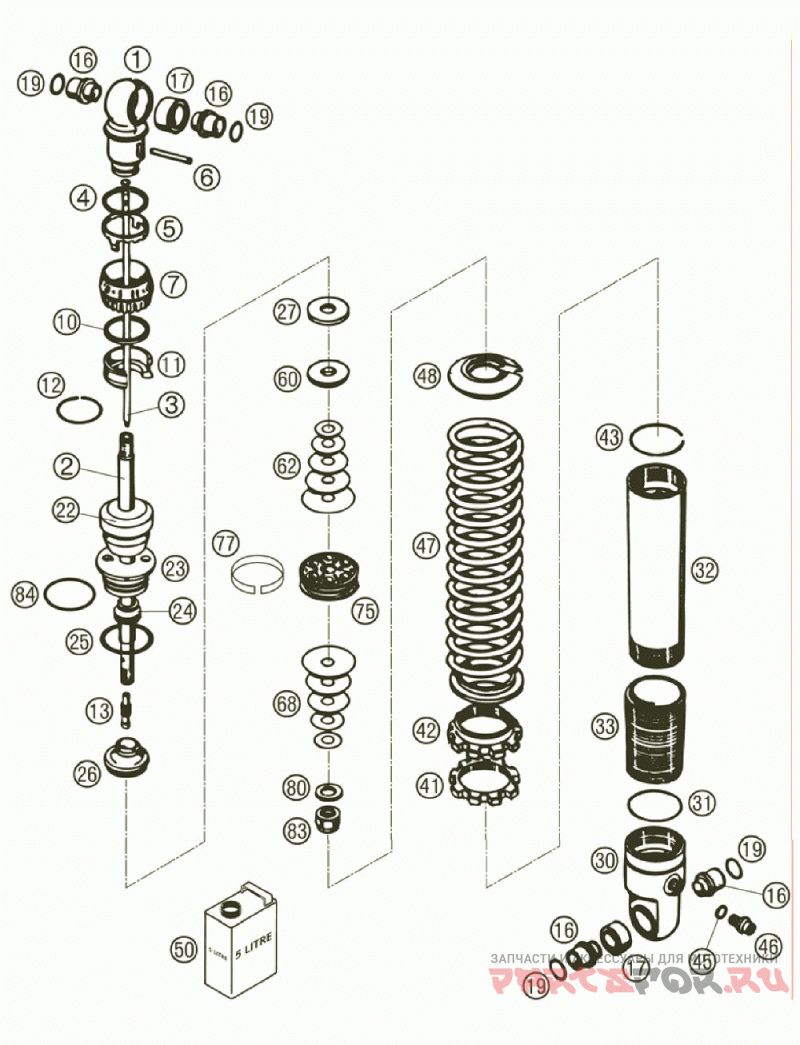

Амортизатор

KTM 50 SX SEN

KTM
#oem кодцена
1
46811525
Shock Abs. Bottom L=46
2
36120576
Piston Rod D=14, L=96
3
46811391S
Needle Cpl. D=4, L=112
4
46811222
O-ring 36x0, 5
5
46811263
Шайба
6
46811261
Pin 4x35
7
46811262
Adj. Knob D=41
10
46811221
O-ring 35x3
11
46811367
Intermediato Ring H=4
12
46811268
Circlip 22x1, 2
13
46811259
Needle Seat 5x17, 25
16
46811077
Adaptor Bush Kgw 10x22
17
46811027
Bushing Kgw 1525
19
46811050
Seal Kgw
22
36120427
Bump Rubber Wp65 L=20
23
36120651
Screw Cap M37, 65
24
46811044
Dust Seal 1424
25
36120064
O-ring Nbr 29, 74x3, 53
26
36120522S1
Adapter Cpl. D=36 H=20, 5
27
36120469
Shim 28, 5x14x2
31
0770380020
O-ring 38, 00x2, 00 Nbr 70 Sh
33
36120019
Threaded Bush L=70 Black
41
36120015
Counternut
42
36120418
Adjusting Nut
43
40540015
Circlip 38x1, 5
45
46810893
O-ring Nbr 5, 28x1, 78
46
36120151
Screw Plug M5x6
47
93010168
Spring (46, 5) 45-130 D=7, 75
48
36120386
Spring Ret. H=3, D=14,5
50
50180342S1
Shock Absorber Fluid 5 Lt '03
60
36120557
Rebound Bush H=5, 6
62
36120338
Shim 10x29x0, 20
62
36120339
Shim 10x31x0, 20
62
36120298
Shim 10x16x0, 2
62
36120340
Shim 10x33x0, 20
62
36120343
Shim 10x23x0, 25
62
36120344
Shim 10x25x0, 25
62
36120345
Shim 10x27x0, 25
62
36120350
Shim 10x21x0, 30
68
36120312
Shim 10x16x0, 30
68
36120327
Shim 10x23x0, 15
68
36120328
Shim 10x25x0, 15
68
36120334
Shim 10x21x0, 20
68
36120336
Shim 10x25x0, 20
68
36120655
Pressure-ring 27x23, 25x0, 30
75
36120624
Piston 6+6x5, 5/3, 5
77
36120040
Piston Ring 8x1x108, 3
80
36120604
Shim D10xd22x2, 5
83
36120605S
Piston Rod Nut Cpl. H=15, 2
84
46811500
O-ring Nbr 32x1, 5
