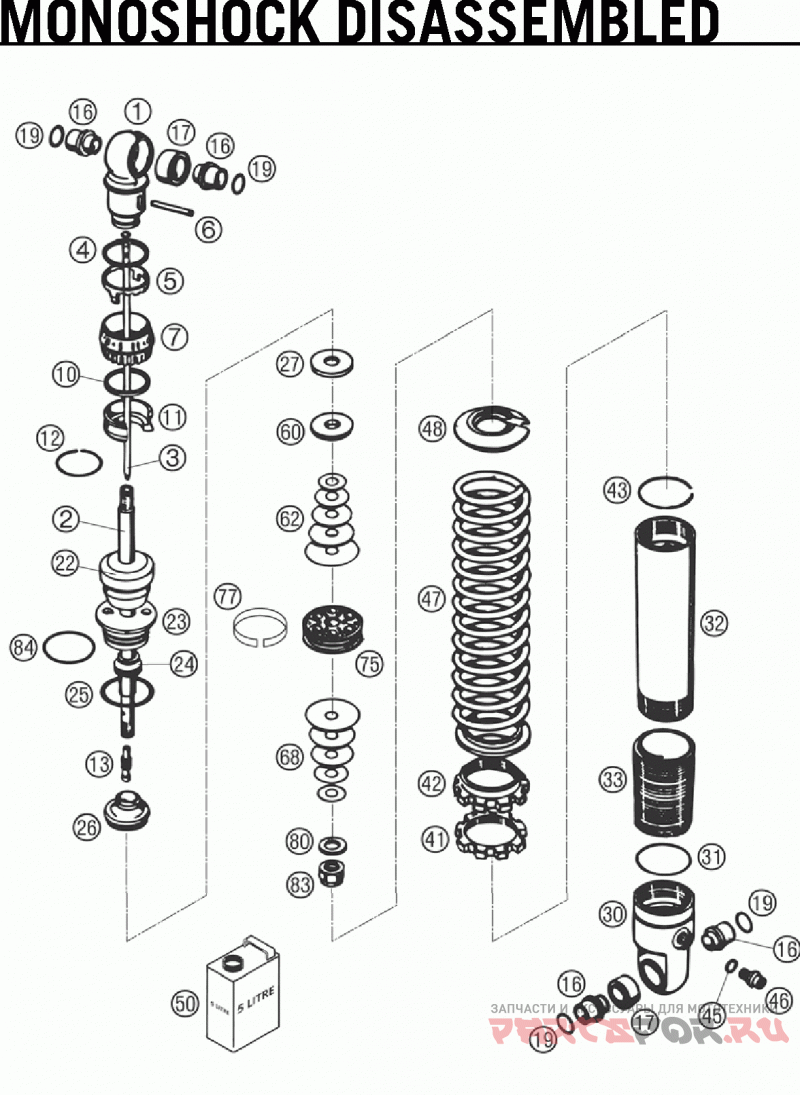

Monoshock disassembled ref# 1 - 62

KTM 50 SX CHASSIS

KTM
#oem кодцена
1
46811525
Shock Abs. Bottom L=46
2
36120576
Piston Rod D=14, L=96
3
46811391S
Needle Cpl. D=4, L=112
4
46811222
O-ring 36x0, 5
5
46811263
Шайба
6
46811261
Pin 4x35
7
46811262
Adj. Knob D=41
10
46811221
O-ring 35x3
11
46811367
Intermediato Ring H=4
12
46811268
Circlip 22x1, 2
13
46811259
Needle Seat 5x17, 25
16
46811077
Adaptor Bush Kgw 10x22
17
46811027
Bushing Kgw 1525
19
46811050
Seal Kgw
22
36120427
Bump Rubber Wp65 L=20
23
36120651
Screw Cap M37, 65
24
46811044
Dust Seal 1424
25
36120064
O-ring Nbr 29, 74x3, 53
26
36120522S1
Adapter Cpl. D=36 H=20, 5
27
36120469
Shim 28, 5x14x2
31*
0770380020
O-ring 38, 00x2, 00 Nbr 70 Sh
33
36120019
Threaded Bush L=70 Black
41
36120015
Counternut
42
36120418
Adjusting Nut
43
40540015
Circlip 38x1, 5
45
46810893
O-ring Nbr 5, 28x1, 78
46
36120151
Screw Plug M5x6
47
93010168
Spring (46, 5) 45-130 D=7, 75
48
36120386
Spring Ret. H=3, D=14,5
50
50180342S1
Shock Absorber Fluid 5 Lt '03
60
36120557
Rebound Bush H=5, 6
62
36120338
Shim 10x29x0, 20
62
36120339
Shim 10x31x0, 20
